Overview of Centrifugal Spray Dryer:
The centrifugal spray dryer is a core equipment in modern industry that efficiently converts liquid materials into high-quality powders. Its working principle is that through a high-speed rotating centrifugal atomizer, the liquid raw materials are instantly scattered and stretched to form a fine mist net. At the same time, hot air is precisely introduced into the drying tower and comes into efficient co - current or counter - current contact with the mist droplets, causing the water to evaporate rapidly within a few seconds, and finally a uniform and dry powder product is obtained.
The essence of this process lies in "instantaneous drying". With extremely high heat and mass transfer efficiency, even heat - sensitive substances (such as proteins, probiotics or natural extracts) can be dehydrated at a relatively low temperature, thus maximizing the retention of their active ingredients and natural properties. By precisely controlling the atomizer rotation speed, inlet air temperature and air flow mode, the operator can flexibly control the particle size, moisture content, solubility and fluidity of the finished powder to meet the strict requirements of many fields, from food milk powder, pharmaceutical raw materials to high - end ceramic powders and nanomaterials.
Therefore, the centrifugal spray dryer is not only a drying technology but also a precise powder manufacturing system. It achieves an elegant transformation from "liquid" to "powder" in an efficient, continuous and controllable industrial way, and is an indispensable key link in the modern production line that pursues product quality and process efficiency.
The centrifugal spray dryer is a key equipment specially used to convert liquid bone broth (stock made from pig bones, beef bones, chicken bones, etc.) into bone broth powder or the precursor powder of bone broth cubes. It perfectly combines food engineering and spray drying technology and is an important part of the modern food industry, especially in the fields of seasonings, convenience foods and pre - made catering products. Since the composition of bone broth is extremely complex, containing proteins, fats, minerals, collagen (gelatin), flavor substances, etc., its spray drying process is quite challenging.

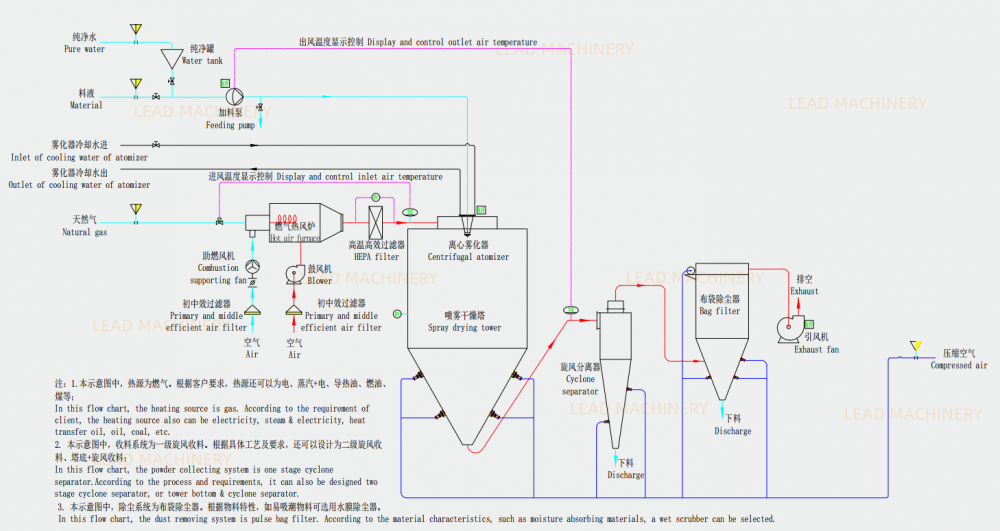

System Flow Chart of Flow Chart of Centrifugal Spray Dryer
Technical Advantages of Spray Dryer in Bone Broth/Meat Broth Drying Process:
Convert liquid flavors into solid powders: It is convenient for storage, transportation and use (directly mixed in seasoning packets, soup bases, puffed foods, instant noodles, etc.).
Improve stability: Effectively lock in flavors, prevent the volatilization of aroma components and oxidative deterioration, and greatly extend the shelf life.
Flavor slow release and controlled release: By forming a microcapsule structure, the core flavor substances are protected and released during subsequent processing (such as brewing and heating), enhancing the flavor impact and persistence of the final product.
Improve solubility and dispersibility: The dried powder can quickly dissolve in water, and the flavor is released evenly.
Realize product standardization: By precisely controlling the process parameters, it ensures that products in different batches are highly consistent in terms of flavor intensity, particle size, moisture and other indicators.
Industries suitable for centrifugal spray drying:
Food industry
Production of milk powder, soy milk powder, coffee powder, fruit juice powder, egg powder, yeast, and fruit and vegetable powder.
Drying of seasonings (such as soy sauce powder, yeast extract) and food additives (essences, pigments).
Low-temperature drying of functional foods (probiotics, enzyme preparations) to protect active ingredients.
Pharmaceutical industry
Drying of raw materials such as antibiotics, vitamins, and traditional Chinese medicine extracts.
Preparation of spray-dried microcapsules for drug slow release or taste masking (such as granules and capsule fillers).
Chemical engineering and materials
Granulation of dyes, pigments, ceramic powders, catalysts, and polymer particles (such as PVC, PE).
Preparation of precursors for nanomaterials and battery cathode and anode materials (such as lithium battery materials).
Environmental protection and bioengineering
Sludge drying in wastewater treatment and immobilization of microbial preparations (such as biological pesticides).
Drying of bioactive products such as enzymes and single-cell proteins.
Other industries
Cosmetics (foundation, talcum powder), ceramic glazes, wettable powders for pesticides, etc.

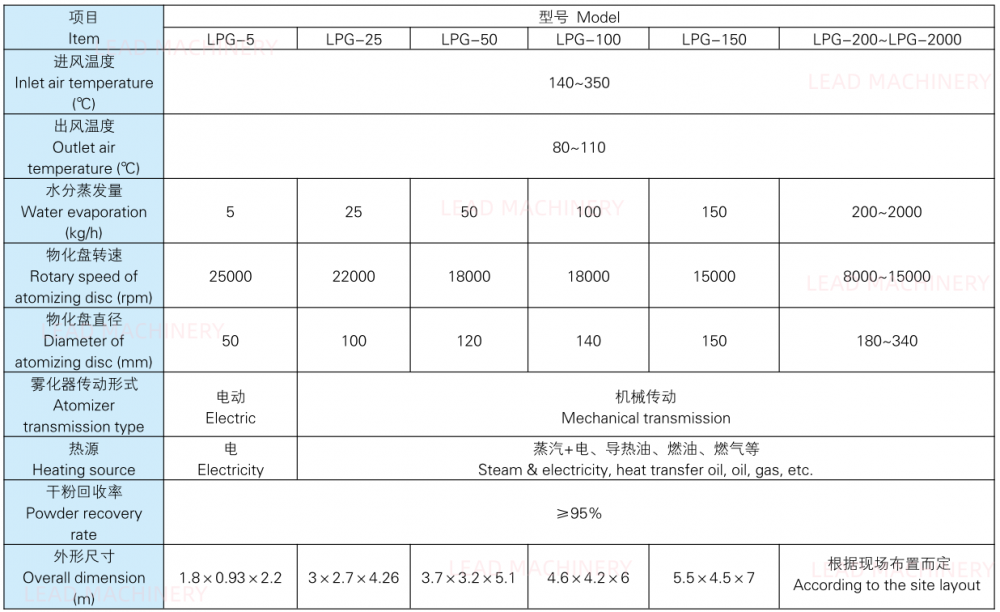

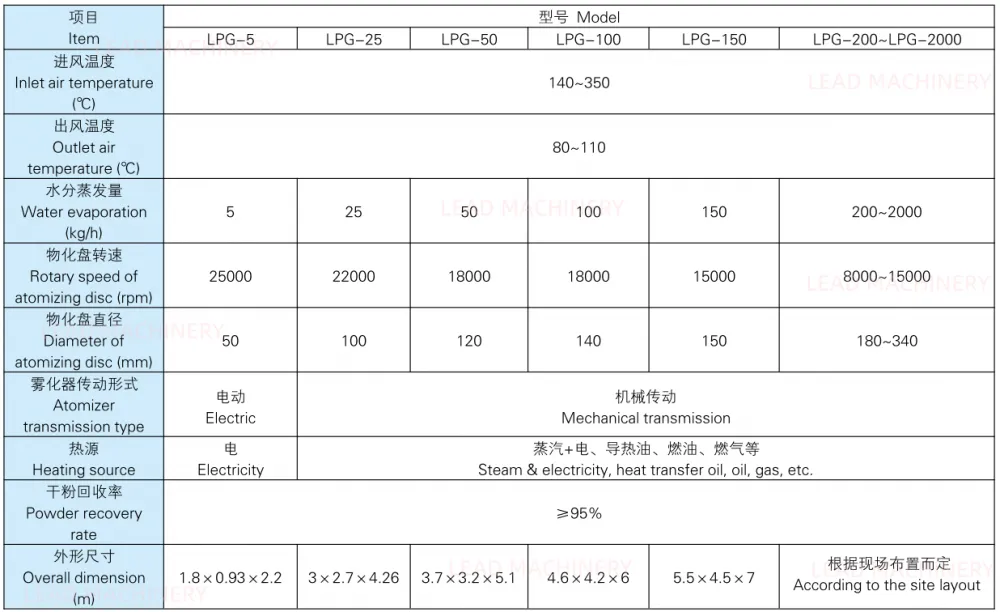

Technical parameters of centrifugal spray dryer
