Overview of Centrifugal Spray Dryer:
The centrifugal spray dryer is a core equipment in modern industry for efficiently converting liquid materials into high - quality powders. Its working principle is that through a high - speed rotating centrifugal atomizer, the liquid raw materials are instantly scattered and stretched to form a fine mist net. At the same time, hot air is precisely introduced into the drying tower and comes into efficient co - current or counter - current contact with the mist droplets, enabling the water to evaporate rapidly within a few seconds, and finally obtaining a uniform and dry powder product.
The essence of this process lies in "instant drying". With extremely high heat and mass transfer efficiency, even heat - sensitive substances (such as proteins, probiotics or natural extracts) can be dehydrated at a relatively low temperature, thus maximizing the retention of their active ingredients and natural properties. By precisely controlling the atomizer speed, inlet air temperature and air flow pattern, operators can flexibly control the particle size, moisture content, solubility and fluidity of the finished powder to meet the strict requirements of many fields, from food milk powder, pharmaceutical raw materials to high - end ceramic powders and nanomaterials.
Therefore, the centrifugal spray dryer is not only a drying technology but also a precise powder manufacturing system. It achieves an elegant transformation from "liquid" to "powder" in an efficient, continuous and controllable industrial way, and is an indispensable key link in modern production lines that pursue product quality and process efficiency.
The centrifugal spray dryer plays a crucial role in the drying process of savory flavors and is the core equipment for standardizing, stabilizing and commercializing flavor products. Savory flavors (such as chicken, beef, seafood, soy sauce flavors, etc.) are mostly water - soluble or emulsion systems formed by thermal reactions or blending, which need to be dried into a convenient powder form.

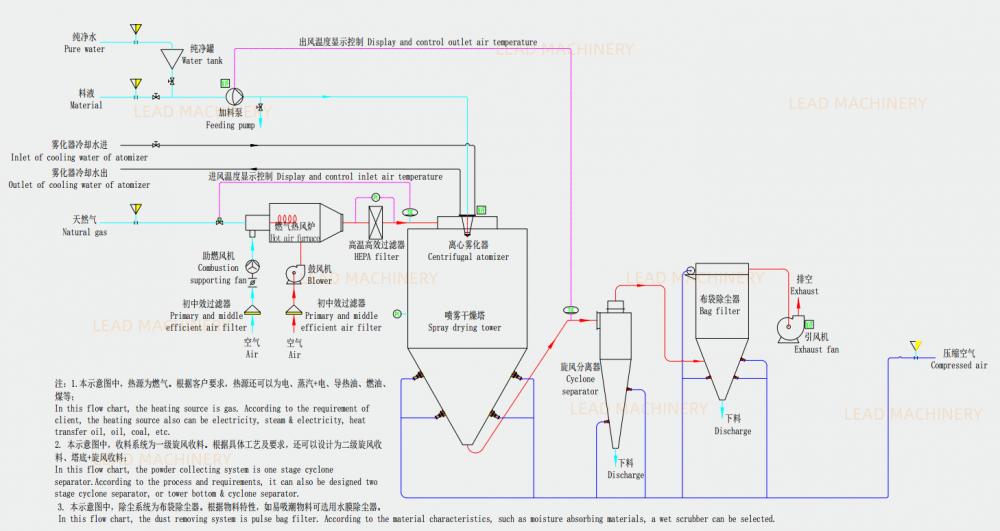

System Flow Chart of Centrifugal Spray Dryer
Technical Advantages of Spray Dryer in the Drying Process of Savory Flavors:
Convert liquid flavors into solid powders: It is convenient for storage, transportation and use (directly mixed in seasoning packets, soups, puffed foods, instant noodles, etc.).
Improve stability: Effectively lock in flavors, prevent the volatilization and oxidative deterioration of aroma components, and greatly extend the shelf life.
Flavor slow - release and controlled release: By forming a micro - capsule structure, protect the core flavor substances and make them release during subsequent processing (such as brewing, heating), enhancing the flavor impact and persistence of the final product.
Improve solubility and dispersibility: The dried powder can quickly dissolve in water, and the flavor is released evenly.
Realize product standardization: By precisely controlling process parameters, ensure that products in different batches are highly consistent in indicators such as flavor intensity, particle size, and moisture.
Industries suitable for centrifugal spray drying:
Food industry
Production of milk powder, soybean milk powder, coffee powder, fruit juice powder, egg powder, yeast, and fruit and vegetable powder.
Drying of seasonings (such as soy sauce powder, yeast extract) and food additives (flavors, pigments).
Low-temperature drying of functional foods (probiotics, enzyme preparations) to protect active ingredients.
Pharmaceutical industry
Drying of raw materials such as antibiotics, vitamins, and traditional Chinese medicine extracts.
Preparation of spray-dried microcapsules for drug slow release or taste masking (such as granules, capsule fillers).
Chemical engineering and materials
Granulation of dyes, pigments, ceramic powders, catalysts, and polymer particles (such as PVC, PE).
Preparation of precursors for nanomaterials and battery cathode and anode materials (such as lithium battery materials).
Environmental protection and bioengineering
Sludge drying in wastewater treatment and immobilization of microbial preparations (such as biopesticides).
Drying of bioactive products such as enzymes and single-cell proteins.
Other industries
Cosmetics (foundation, talcum powder), ceramic glazes, wettable pesticide powders, etc.

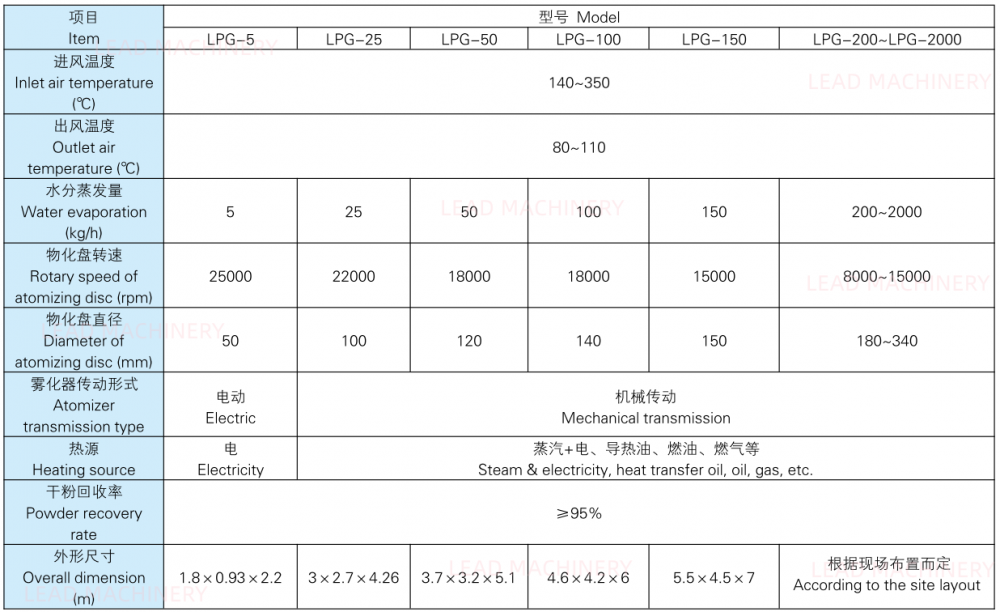

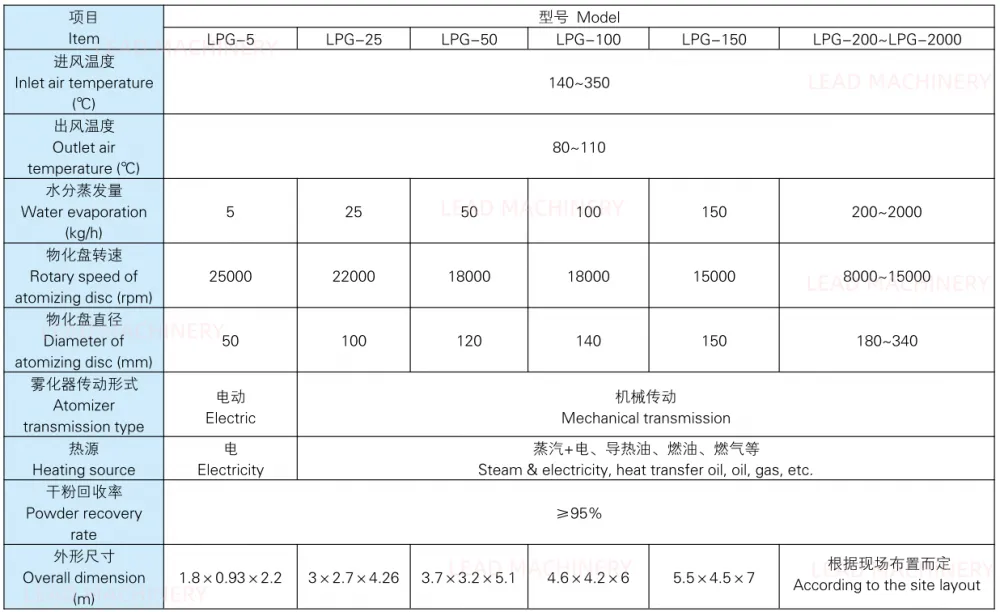

Technical parameters of centrifugal spray dryer
