Circular Saw Blade Sharpening Machine, Alloy Saw Blade Tooth Grinding Machine, Universal Cylindrical Grinder, Surface Knife Grinder

Foshan Aoxiang Precision Machinery Co., Ltd. Verified Business License
Circular Saw Blade Sharpening Machine, Alloy Saw Blade Tooth Grinding Machine, Universal Cylindrical Grinder, Surface Knife Grinder thumbnail-1
Circular Saw Blade Sharpening Machine, Alloy Saw Blade Tooth Grinding Machine, Universal Cylindrical Grinder, Surface Knife Grinder thumbnail-2
Circular Saw Blade Sharpening Machine, Alloy Saw Blade Tooth Grinding Machine, Universal Cylindrical Grinder, Surface Knife Grinder photo-1
Circular Saw Blade Sharpening Machine, Alloy Saw Blade Tooth Grinding Machine, Universal Cylindrical Grinder, Surface Knife Grinder photo-2
US$ 8923.08 1 Unit
US$ 8738.46 2 Unit
US$ 8153.85 ≥3 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Foshan, Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

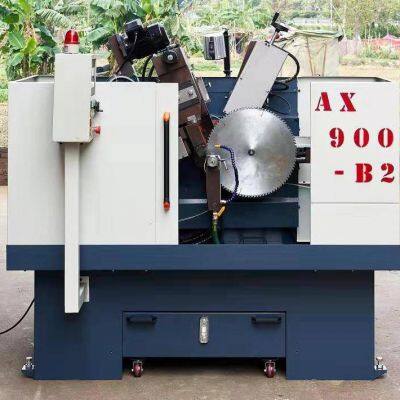

  Fully automatic circularsaw blade sharpening machine is a mechanical equipment for grinding and reusing alloy circular saw blades. It can grind and shape various tooth shapes including flat teeth, triangular teeth, high-low teeth, trapezoidal teeth,combined teeth, left and right teeth, left flat and right teeth, etc. It is one of the advanced saw blade sharpening equipment in the current market. One single machine can grind30 - 50 alloy saw blades in8 hours a day. It is a commonly used equipment for saw blade users and saw blade manufacturers. PLC control, touch screen display, and the operation is simple and easy to learn. On the premise of grinding the saw blade sharp, it can also fully extend the service life of the saw blade, and each blade can be reused25 - 40 times. It has been well - received by a large number of users including Guangzhou Oppein, Zhongshan Ouli Furniture, Dongguan LvDian Furniture, Heshan Youyue Furniture, and Wuhan Zhongyue Alloy Co., Ltd.



        Technical parameters

  Grinding outer diameter: φ80 - φ800mm
  Saw blade inner diameter: φ10 - φ80mm
  Number of grinding teeth: 1 - 999 teeth
  Tooth pitch: 7 - 100mm
  Saw blade thickness: 8mm
  Primary rake angle grinding: -10° to +40°
  Tooth surface swing angle: 15° left to 15° right
  Clearance angle grinding: 6 - 45°
  Tooth tip swing angle: 45° left to 45° right
  Grinding stroke: 1 - 28mm (stepless speed change)
  Working speed: 18 - 30 teeth/minute
  Grinding wheel outer diameter: φ125mm
  Grinding wheel inner diameter: φ32mm
  Grinding wheel rotation speed: 5800/minute
  Cooling device: 50kl/minute
  Total electric power: 1.64kw
  Machine net weight: 980kg
  Packing gross weight: 1180kg
  Machine body size: 1700×1280×1780mm



Product Tags: Circular saw blade , Knife grinder , Surface grinder
