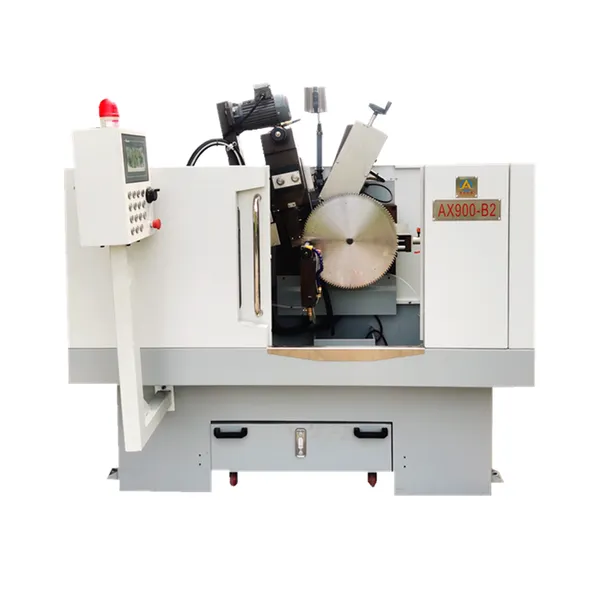

Factory Direct Sales of Alloy Circular Saw Blade Tooth Grinding Machines, Fully Automatic Carbide Saw Blade Tooth Grinding Machines, Universal Knife Grinders
US$ 8923.08
1 Unit
US$ 8738.46
2 Unit
US$ 8153.85
≥3 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Foshan, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Saw Blade Tooth Grinding Machine, Aluminum Cutting Saw Blade Tooth Grinding Machine, Wood Cutting Saw Blade Tooth Grinding Machine, Cnc Tooth Grinding MachineUS$ 8153.85 - 8923.08MOQ: 1 Unit -
Supply of Fully Automatic Ax900-b2 Saw Blade Tooth Grinding MachineUS$ 7815.38 - 8153.85MOQ: 1 Unit
-
Repair of Saw Blade Tooth Grinding Machine - Aoxiang Machinery. Repair of Fully Automatic Carbide Saw Blade Tooth Grinding Machine for Front and Rear Angles and Side Grinding MachineUS$ 10.15 - 15.38MOQ: 1 Unit
-
Alloy Saw Blade Resharpening, Available for Nationwide DeliveryUS$ -MOQ: 0 Piece
-
Circular Saw Blade Sharpening Machine, Alloy Saw Blade Tooth Grinding Machine, Universal Cylindrical Grinder, Surface Knife GrinderUS$ 8153.85 - 8923.08MOQ: 1 Unit
Alloy circularsaw blade tooth grinding machine is a mechanical device for grinding alloy circular saw blades. It can grind and shape various tooth profiles of alloy saw blades, including flat teeth, triangular teeth, high-low teeth, trapezoidal teeth,combined teeth, left-right teeth, left-flat right teeth, etc. It is one of the most advanced saw blade grinding equipment in the current market.
Technical parameters
| Grinding outer diameter: φ80 - φ800mm Saw blade inner diameter: φ10 - φ80mm Number of grinding teeth: 1 - 999 teeth Tooth pitch: 7 - 100mm Saw blade thickness: 8mm Primary rake angle grinding: -10° to +40° Tooth surface swing angle: -15° to +15° Clearance angle grinding: 6 - 45° Tooth tip swing angle: -45° to +45° Grinding stroke: 1 - 28mm (stepless speed change) Working speed: 18 - 30 teeth/min Grinding wheel outer diameter: φ125mm Grinding wheel inner diameter: φ32mm Grinding wheel rotation speed: 5800/min Cooling device: 50kl/min Total electric power: 1.64kw Net weight of the machine: 980kg Gross weight of the packing: 1180kg Machine body size: 1700×1280×1780mm
|
