Factory Direct Sales of Aoxiang Saw Blade Tooth Grinding Machines, Cnc Carbide Circular Saw Blade Grinding Machines

Foshan Aoxiang Precision Machinery Co., Ltd. Verified Business License
Factory Direct Sales of Aoxiang Saw Blade Tooth Grinding Machines, Cnc Carbide Circular Saw Blade Grinding Machines thumbnail-1
Factory Direct Sales of Aoxiang Saw Blade Tooth Grinding Machines, Cnc Carbide Circular Saw Blade Grinding Machines thumbnail-2
Factory Direct Sales of Aoxiang Saw Blade Tooth Grinding Machines, Cnc Carbide Circular Saw Blade Grinding Machines thumbnail-3
Factory Direct Sales of Aoxiang Saw Blade Tooth Grinding Machines, Cnc Carbide Circular Saw Blade Grinding Machines photo-1
Factory Direct Sales of Aoxiang Saw Blade Tooth Grinding Machines, Cnc Carbide Circular Saw Blade Grinding Machines photo-2
Factory Direct Sales of Aoxiang Saw Blade Tooth Grinding Machines, Cnc Carbide Circular Saw Blade Grinding Machines photo-3
US$ 10461.54 1 Unit
US$ 9692.31 2 Unit
US$ 8923.08 ≥3 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Foshan, Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

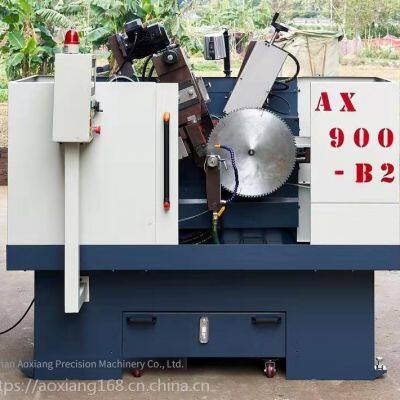

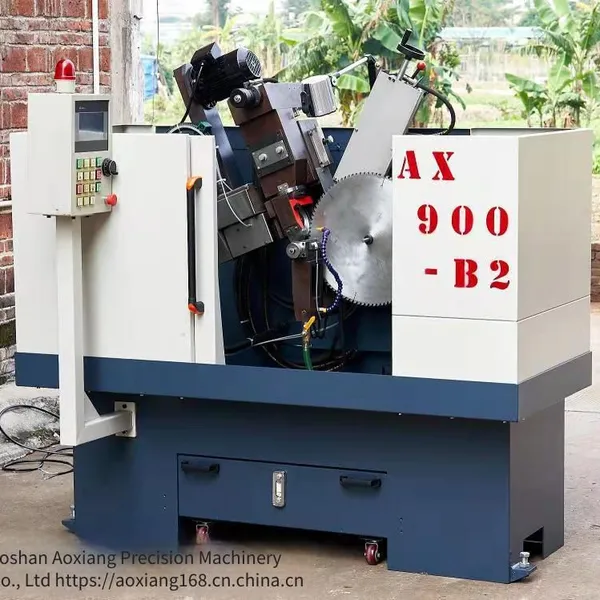

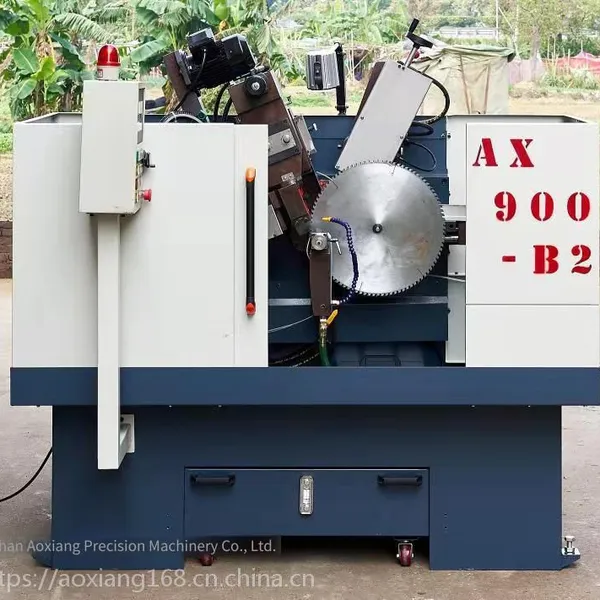

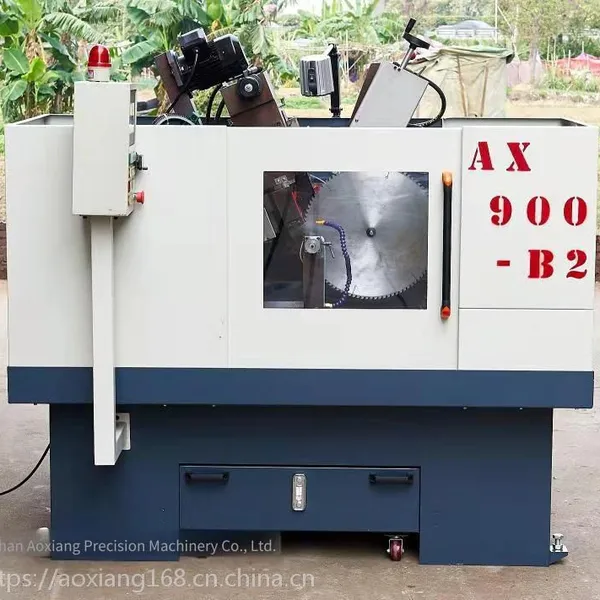

                           Introduction to the fully automatic alloy saw blade tooth grinding machine Model AX900 - B2

      The fully automatic alloy saw blade tooth grinding machine Model AX900 - B2 is a mechanical equipment for grinding and reusing alloy circular saw blades. It can grind all tooth profiles including the rake angle and clearance angle of alloy circular saw blades. A single machine can grind 30 - 50 alloy saw blades in 8 hours a day. It is a commonly used equipment for saw blade users and saw blade manufacturers. PLC control, color touch screen display. Flat - ladder teeth can be ground at one time, and the same tooth can be ground repeatedly for 2 - 3 times. The accuracy can be controlled within 0.03mm. It is easy to operate and learn. On the premise of grinding the saw blade sharp, it can also fully extend the service life of the saw blade. Each saw blade can be reused 20 - 30 times. It has won the praise of a large number of users including Guangzhou Oppein, Zhaoqing Asia Aluminum, Zhongshan Ouli Furniture, Dongguan Lvdi Furniture, Heshan Youyue Furniture, Wuhan Fanzhou Zhongyue, Jiangxi Ganzhou Hongshan Wood Industry, and Anhui Lu'an Guanzhong Wood Industry.

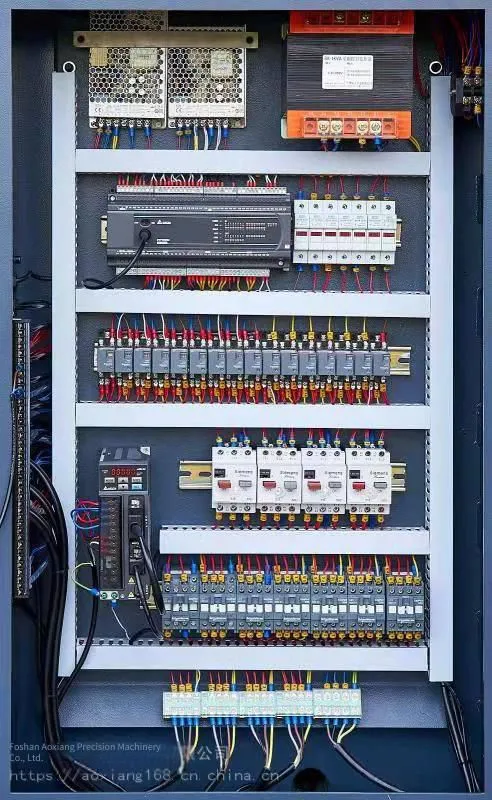

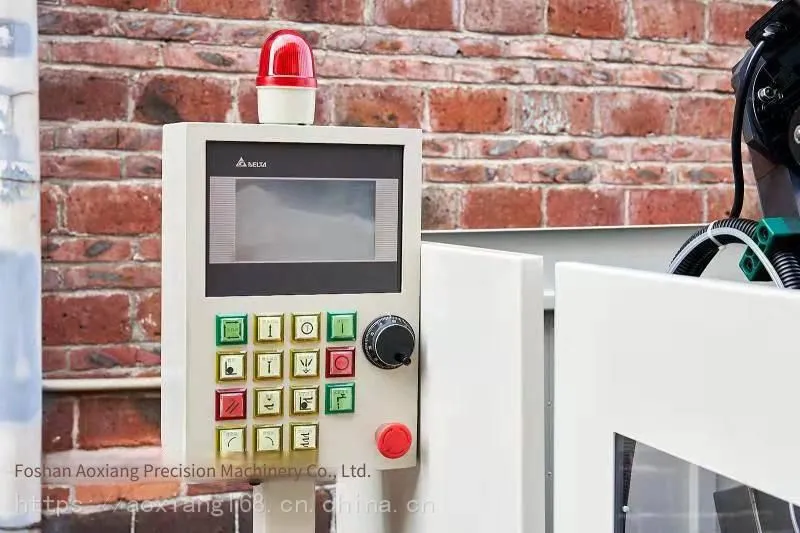

  The power supply of this model is three - phase 380V, 50HZ (another grounding wire is a colored wire). The machine runs under PLC control, with touch screen display and hydraulic drive. It uses Delta brand PLC (DVP60ES200T) and color touch screen (DOP - B07S410) produced by Delta Electronics Inc., which shows better stability in matching. The hydraulic system uses a 24V solenoid valve produced by Beijing Shida Company, is equipped with a 380V 1.5KW special hydraulic motor and a 20L special variable hydraulic pump, and is configured with a hydraulic stability system to ensure balanced hydraulic operation. The electrical part uses orthodox Schneider products.

The motor uses Sheng Generator, a high-quality product from Guangdong Province. Professional matching makes the equipment more stable and durable. Strict factory inspections give our customers greater peace of mind.




Product Tags: Alloy circular saw blade tooth grinding machine , Automatic saw grinding machine , CNC tooth grinding machine
