Which company makes the best saw blade sharpening machines? Look for Aoxiang in Guangdong, China!

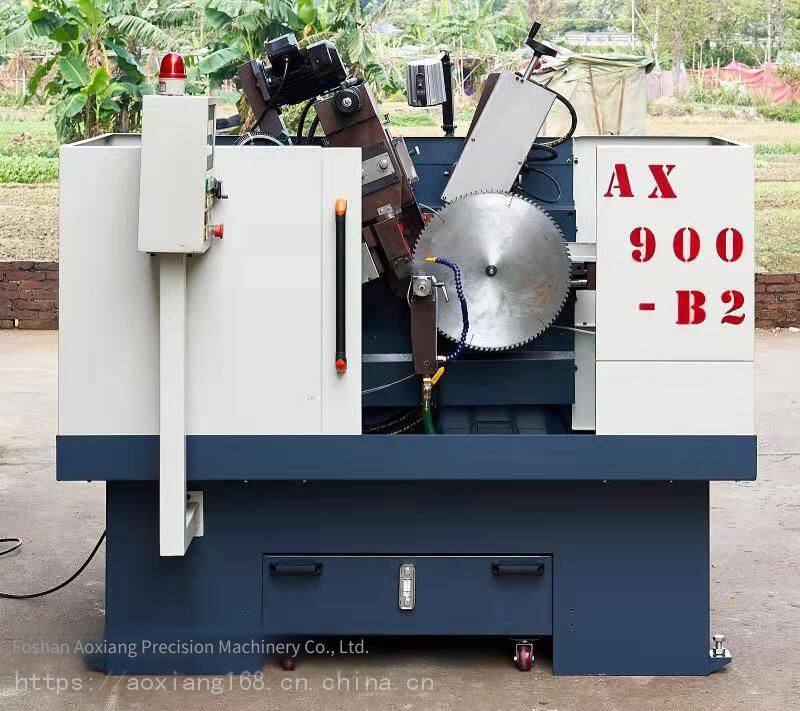

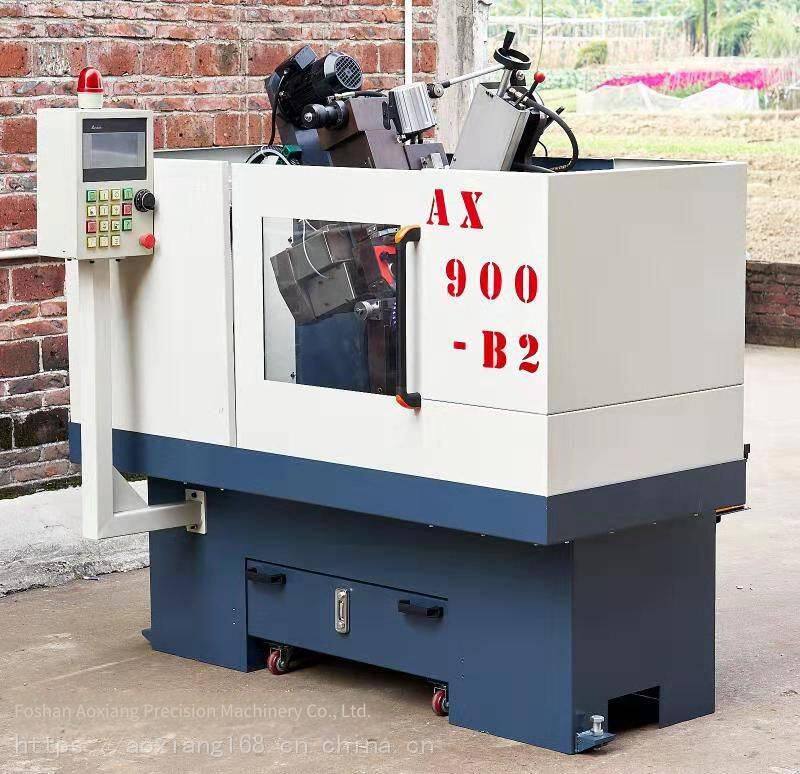

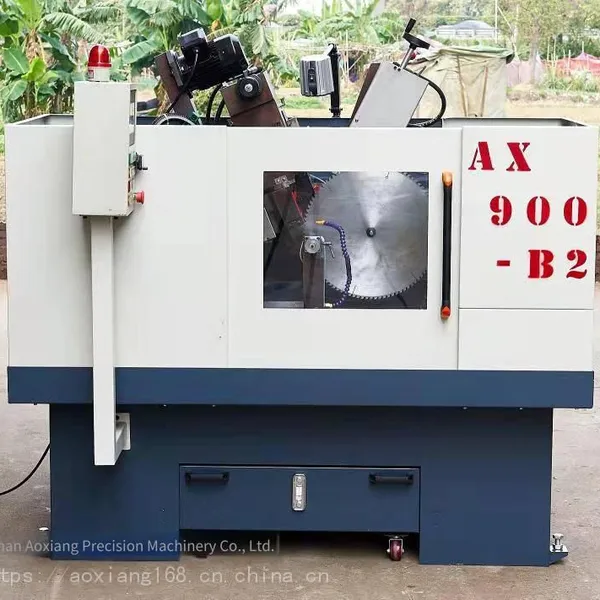

Basic parameters of AX900-B2 Aoxiang fully automatic carbide circular saw blade sharpening machine
Model | AX900-B2 | Brand | Aoxiang |
Type | Carbide circular saw blade grinder | Layout form | Vertical |
Installation form | Floor-mounted | Target object | Alloy circular saw blade |
Body color | White + Dark gray | Machine tool weight | 930kg |
Control form | PLC | Sharpenable tooth profile | All tooth profiles |
Processing precision | Precision | Number of teeth to be sharpened | 999 |
Overall dimensions | 1280*1800*1850 (mm) | Touch screen size | 7 inches |
Minimum grinding size | 80mm | Grinding size | 800mm |
Main motor power | 1.5kw | Grinding wheel speed | 5200rpm |
Feed motor power | 750w | Repairable saw blade aperture | φ20、φ22、φ25.4、φ30、φ40、φ50 |
Front angle grinding wheel specification | 125*32*10(3)*1 | Rear angle grinding wheel specification | 125*32*5*6 |
Coolant tank capacity | 80L | Dressing accuracy | 0.03mm-0.05mm |
Voltage setting | 380V/50HZ | Tooth pitch | 7-150mm |
Feeding speed | 18-25 teeth/minute | Language | Simplified Chinese/English |
Grinding wheel sharpening forward speed | Stepless speed regulation | Grinding wheel sharpening stroke | 0-28mm (Equipped with water cooling device) |
Sharpenable angle of tooth tip and left/right helical teeth | 3°/45° | Sharpenable angle of left/right helical teeth on tooth surface | 3°/15° |
Tooth tip sharpening angle | 6°/30° | Tooth surface sharpening angle | +30°/-5° |

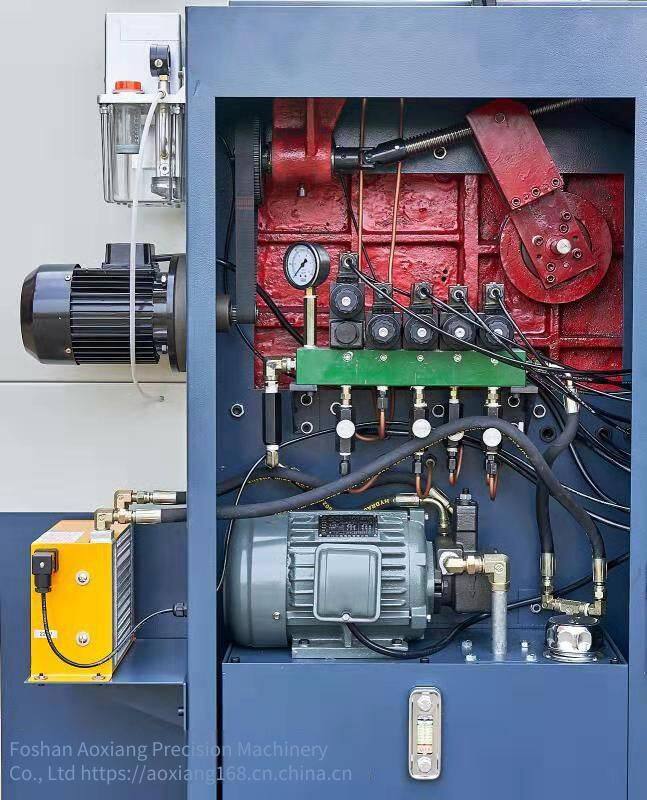

Grinding wheel control mode | Servo motor | Motion Drive | Hydraulic and Servo Hybrid |
Rack | Steel Plate Sheet Metal Rack | Whole Machine Power | Independent Hydraulic System (30KG/CM2) |
Scan the QR code above with WeChat to follow the WeChat official account "Aoxiang Gear Grinding Machine" and stay informed about product information and promotional activities!
