Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Alloy Saw Blade Double-head Small Side Grinder, Aoxiang Gear Grinding Machine

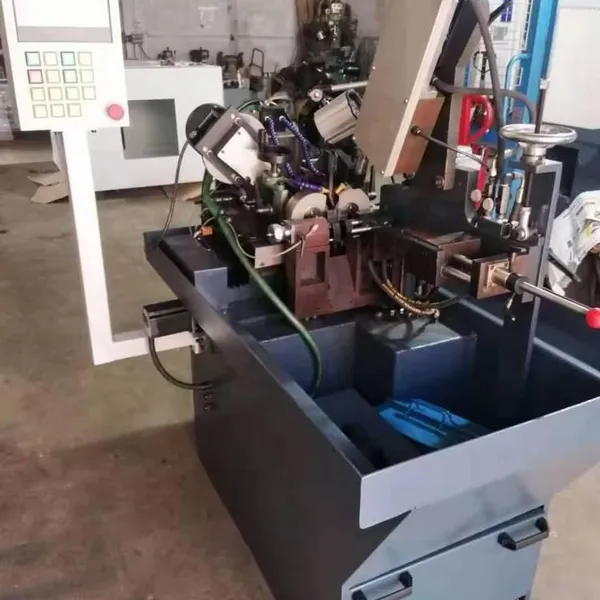

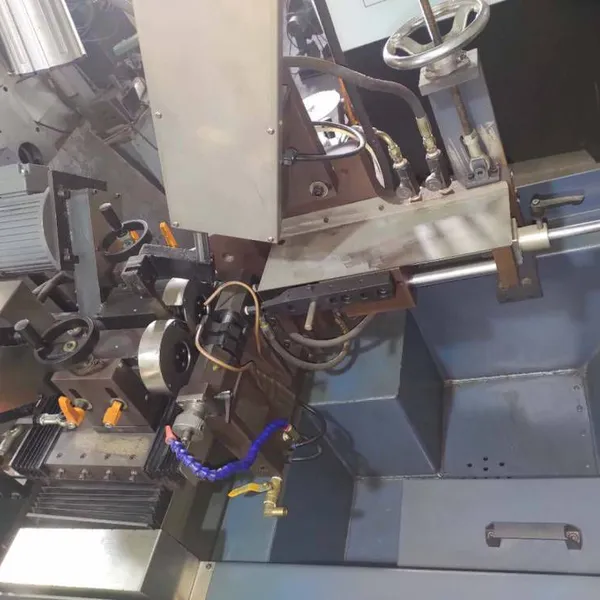

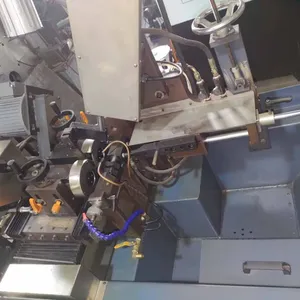

Alloy Saw Blade Double-head Small Side Grinder, Aoxiang Gear Grinding Machine
US$ 79384.62
1 Unit
US$ 7661.54
≥2 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Foshan, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aoxiang Ax800-cm Automatic Double-side Tooth Grinding Machine for Alloy Saw BladesUS$ 6923.08 - 7384.62MOQ: 1 Unit -
Fully Automatic Large Alloy Saw Blade Tooth Grinding MachineUS$ 30461.54 - 33538.46MOQ: 1 Unit
-
Saw Blade Grinding Equipment for the Woodworking and Aluminum Industry - Aoxiang Alloy Saw Blade Tooth Grinding MachineNegotiableMOQ: 0 Unit
-
Three-axis Cnc Aoxiang Alloy Cold Saw Tooth Grinding MachineUS$ 19384.62 - 19692.31MOQ: 1 Unit
-
New Alloy Saw Blade Tooth Grinding Machine Ax900-b2, Third-generation MachineUS$ 9461.54 - 9692.31MOQ: 1 Unit
| Basic parameters of AX800-CM Aoxiang Automatic Alloy Circular Saw Blade Tooth Grinding Machine | |||
| Model | AX800-CM | Brand | Aoxiang |
| Type | Alloy circular saw blade double-sided tooth grinding machine | Layout form | Vertical |
| Installation form | Floor-standing | Object of action | Alloy circular saw blade |
| Body color | Dark gray | Machine tool weight | 480kg |
| Control form | PLC control | Grindable tooth profiles | All tooth profiles |
| Processing precision | Precision | Number of teeth to be ground | 999 |
| Overall dimensions | 1000*1300*1600 (mm) | Touch screen size | 7 inches |
| Minimum grinding size | 80mm | Grinding size | 600mm |
| Main motor power | 1.1kw | Grinding wheel speed | 4900rpm |
| Feed motor power | 1.1kw | Bore diameter of the saw blade that can be ground | φ20, φ22, φ25.4, φ30, φ40, φ50, etc. |
| Specification of the front angle grinding wheel | 100*100*3*7mm | Grinding accuracy | 1.5 wires on one side |
| Voltage setting | 380v/50Hz | Tooth pitch | 7 - 100mm |
| Feeding speed | 15 - 20 teeth/minute | Language | Simplified Chinese/English |
| Forward speed of the grinding wheel for sharpening | Stepless speed regulation (rapid approach, uniform sharpening) | Sharpening stroke of the grinding wheel | 0 - 28mm (equipped with a water grinding device) |
