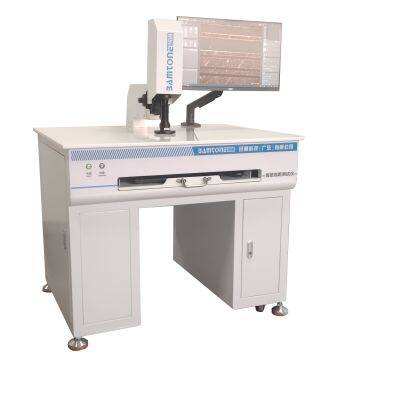

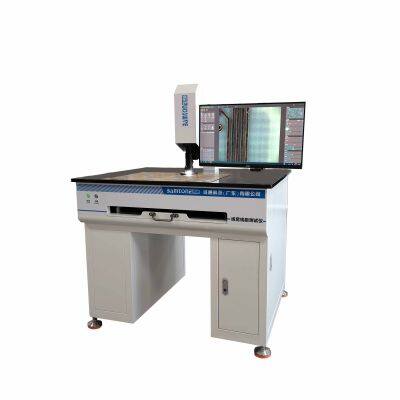

1．Product introduction:
A line width detector is an optical measuring instrument designed for precise detection. It uses a light source to illuminate the circuit board being tested, and after optical amplification and photoelectric signal conversion by the camera, the image signal is transmitted to a computer, displaying a clear image on the screen. Users can directly select the measurement area using a mouse, perform edge detection, and receive the measurement results. This device is primarily used to measure the upper and lower widths of lines on printed circuit boards (PCBs) after development and etching (before applying green oil), both inside and outside layers. It meets the needs of measuring line widths in finished and semi-finished PCBs of various thicknesses available on the market. The detector utilizes advanced technologies and components from both domestic and international sources, along with user-friendly software that is easy to learn and use.
2．product function:
width measurement: measure the width of burr and copper edge in the box selection area;
Boxed single line width measurement: measure the width between two lines in the box selection area;
Measurement of frame selection line width: Measure the width of copper edge in the frame selection area;
Measurement of frame selection line width: Measure the width of burr in the frame selection area;
Box selection 13 line width measurement: measure the width between the upper copper edge and the lower rough edge in the box selection area;
Box selection 24 line width measurement: measure the width between the upper copper edge and the lower rough edge in the box selection area;
Boxed circle measurement: measure the diameter of the circle in the box selection area;
Boxed ring measurement: Measure the two diameters of the ring in the box area
Manual distance measurement: manually measure the distance between two points;
Manual round hole measurement: manual measurement of the diameter of a circle;
3. applied range ：
The line width measuring instrument is mainly used to detect the upper and lower width, area, Angle, circle diameter, center distance, etc. of the lines in the inner and outer layers of the semi-finished PCB printed circuit board after development and etching (before green oil is applied). It can be extended to the microscopic size measurement of other electronic components.
4、Product features:
Granite workbench, stable and will not scratch the board. Flat, solid and has automatic shock-absorbing foot cup.

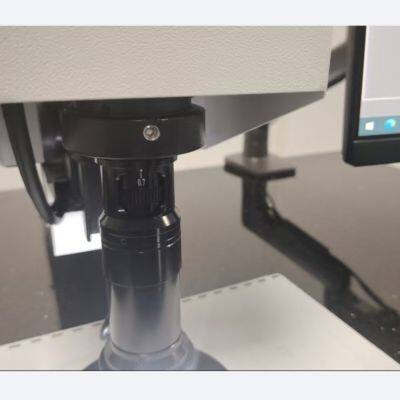

High sensitivity color CCD, imaging quality is clear. High precision mechanical adjustment device, focusing range for coarse and fine adjustment.
Red light LD positioning can quickly determine the measurement area.
It is also equipped with an adjustable intensity ring light source to present a clear picture under different detection board conditions
The magnification can be adjusted from 70x to 450x.
The imaging quality is clear, the signal transmission has been specially processed, filtering noise, and has strong anti-interference ability;
The software can automatically find the edge, and the upper and lower line width measurement can be selected, so the measurement is faster and more accurate.
Automatic save measurement pictures and manual save pictures are combined to quickly export measurement data to Excel and word documents.
Measurement result units can be selected and converted.
SPC control 。
The software is easy to operate, and the mouse has three keys to operate, which can improve work efficiency to the greatest extent.

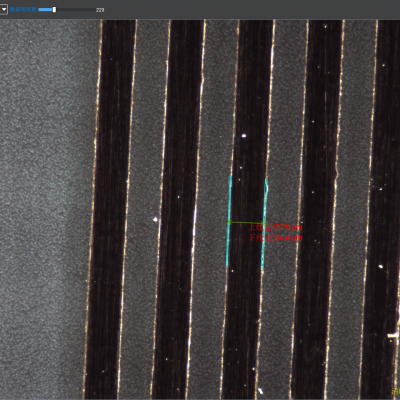

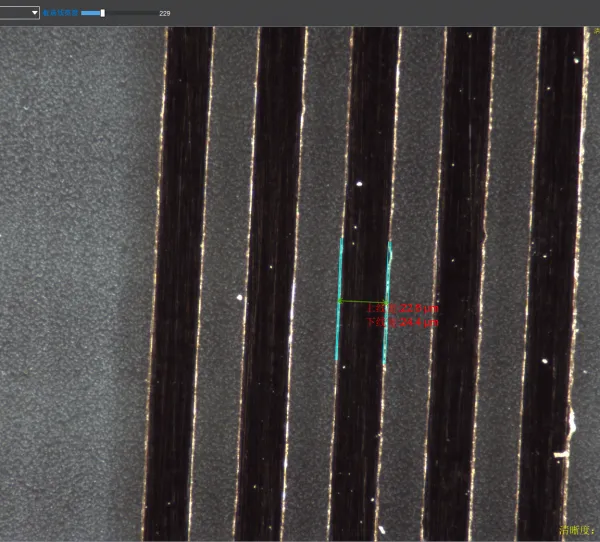

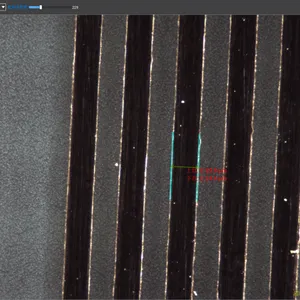

Introduction to the software interface：
The rough edge of the circuit board can be measured and the automatic edge inspection function is available.
You can choose automatic patrol measurement and manual measurement.
Standard values and tolerance values can be set, imported/exported at any time, and reflected in real time.
The mouse can be used to complete the quick measurement, and the operation is easy to learn.
Multiple units of measurement can be switched freely.
The change of magnification can be measured directly without correction, which is convenient and fast.
Products can be measured without the need to place the Angle.
Soft control light source design, light source brightness storage.
Output report formatting, you can write the output data report according to user requirements.
Measurement results can be output in Excel, Word, jpg pictures and other formats.
According to the standard tolerance value set, special hints are given if the range is exceeded, such as special colors and fonts.

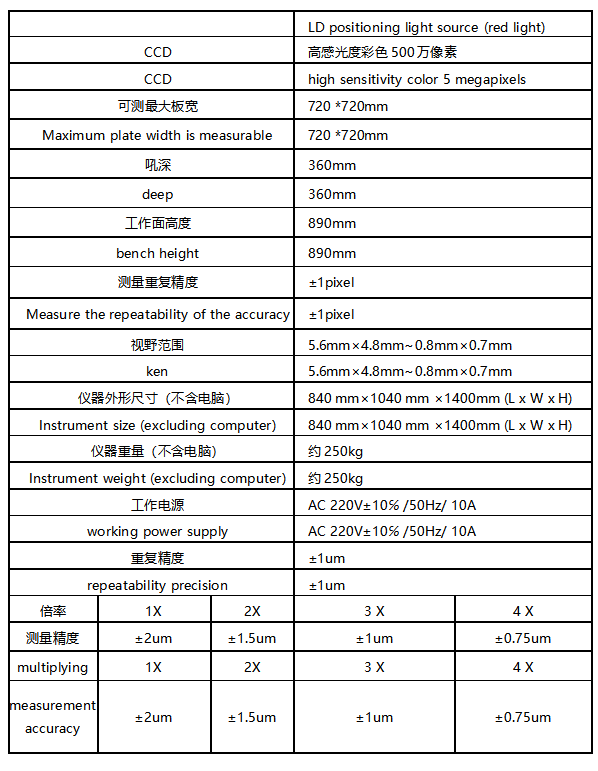

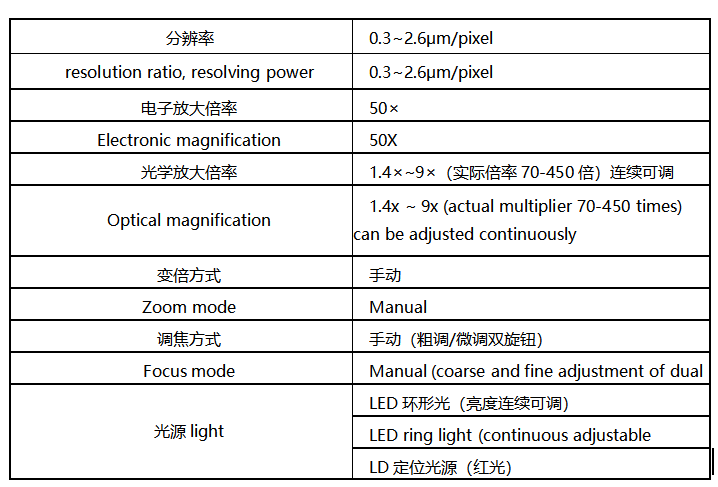

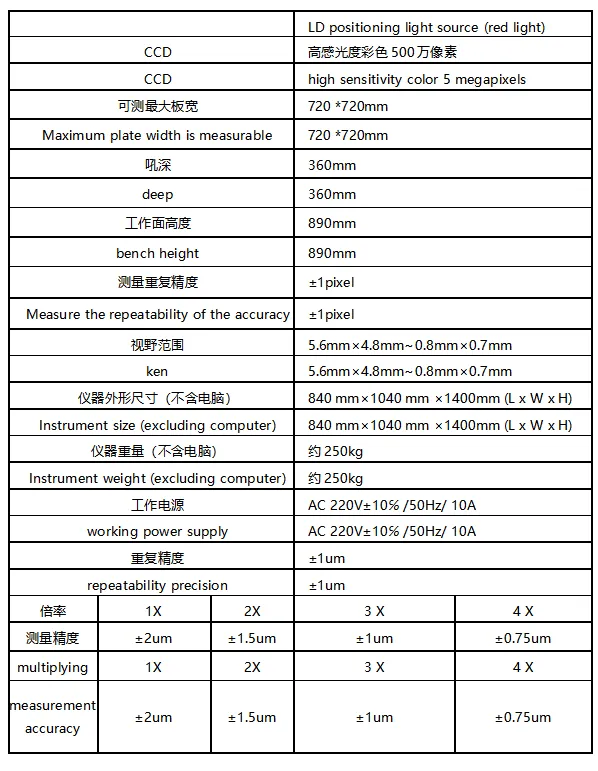

Technical indicators and parameters:
