Handheld Hole Copper Tester Bamtone T65

Handheld Hole Copper Tester Bamtone T65 thumbnail-1
Handheld Hole Copper Tester Bamtone T65 thumbnail-2
Handheld Hole Copper Tester Bamtone T65 photo-1
Handheld Hole Copper Tester Bamtone T65 photo-2
US$ 2750 ≥1 Combo
Key Specifications
Get Latest Price
Warranty:
One year
After-sales Service:
18124034511
Transport Package:
Box
Contact Supplier Request Quote Chat Now
Bamtone Technology (Guangdong) Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Warranty One year
After-sales Service 18124034511
Transport Package Box
Specification Length× width× thickness 150*80*24(mm)
Origin China

Product introduction:T65 hole copper tester adopts eddy current method to accurately measure the copper thickness in the perforation without destroying the sample.
2.Product functions and features:

  1. Fast and nondestructive measurement of coating thickness in holes.

  2. LCD color large screen with backlight display type displays test results, statistical data and statistical curves.

  3. Built-in 8000 mAh lithium-ion battery, durable life, not only eliminating the trouble of battery replacement, but also environmental protection.

  4. Standard USB Type-C charging can be adapted to mobile phone chargers such as Huawei for easy charging.

  5. Units of measurement can be converted from English to metric.

  6. The correction coefficient and compensation value can be set to meet the product standard.

  7. Automatic temperature compensation function, which can automatically identify the product temperature during testing and make the measurement more accurate.

  8. The data can be exported or transmitted in real time, and can be recorded on the internet, analyzed by SPC and uploaded by mes.

  9. It is competent for measuring double-layer or multi-layer circuit boards, and can even penetrate tin and tin/lead corrosion resistant layers for measurement.

  10. The instrument is made of light aluminum alloy Full Metal Jacket and anodized, which is strong and corrosion-resistant.

  11. All Chinese operation interface, easy to use.

  12. You can customize the standby automatic shutdown for 1-15 minutes to save energy.

  13. The unique humanized operation interface is designed, which is displayed on a large screen and the file information is displayed directly, which is clear at a glance and easy to use.

  1. Scope of application:

It is suitable for nondestructive and accurate measurement of hole copper thickness before and after etching of printed circuit board, before and after gold deposition and tin spraying.

  1. Technical indicators and parameters

Measurable minimum hole diameter 35mil(899μm)
measuring range 1-105μm
Test plate thickness Minimum test plate thickness is 0.75mm(30mil).
Eddy current principle Comply with the relevant provisions of ASTM-E376-96 standard.
degree of accuracy 3% (according to the standard film) The tested product is 5%.
precision 1.2 mil(30μm), reaching 1.0% (in laboratory).
resolution ratio 0.01 mils (0.01μm)
Correction mode Single-point standard calibration
monitor High brightness 2.8 inch color LCD screen with resolution of 240*320.
Unit The choice of metric (um) and English (mils) units can be switched.
connector RS-232 interface is used to transmit data to the computer.
statistical data Measurement points, average value, range, highest value and lowest value.
storage volume 9801 readings (99 files, each file can store 99 data)
Heavy weight The main machine weighs 400g (excluding probe, standard film and packing box).
Chi Cun 150*80*24 mm (excluding probe and charging equipment)
Electric cell Built-in lithium ion battery
Battery duration Fully charged for about 30 hours.


  1. allocation plan



number name resume model quantity remarks
1 Test host Length× width× thickness 150*80*24(mm) Bamtone T65 1 set standard configuration
2 Test probe Hole copper test probe ETP 1 (installed) standard configuration
3 Operating instructions Chinese version of operating instructions Electronic/paper version 1 copy standard configuration

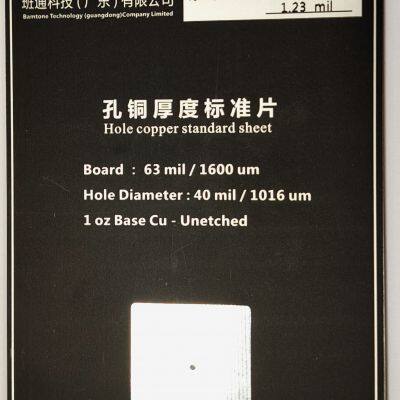

4 Standard film 30um standard piece CAL-MT30 1 tablet standard configuration
5 packaging box Packaging protective box / one standard configuration
6 SPC analysis software PC uploads SPC analysis software. / / select to breed
7 Standard upload software Data upload form, mes system, etc. / / select to breed

List of vulnerable parts

parts Origin brand category Specification/model expected life remarks
probe United States of America consumables ETP 6-12 months
Note: about 50,000-80,000 times of testing. 		Contact measurement, easy to wear
monitor China vulnerable part High brightness 2.8 inch color LCD screen with resolution of 240*320. 5 years
Note: Availability. 		Keywords glass products, fragile products,
Standard film China consumables CAL-MT30 5 years
Note: Calibration is required every year, depending on the usage. 		Daily calibration contact, easy to wear.


Product Tags: Handheld Hole Copper Tester , Copper Thickness Gauge , Copper Thickness Tester
