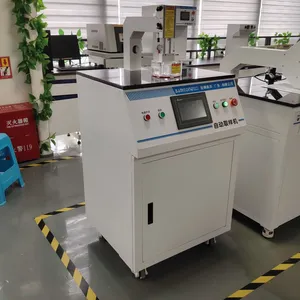

Automatic Sampler Introduction of Bamtone/S275 Products

1. Product introduction:

In the early days, the sampling methods of circuit board chips were mostly punching-shearing or sawing, and both of these methods may cause the sample to be deformed (especially when the number of layers of PCB board is high and the board is thick), which will lead to the fatal defect of inaccurate observation and testing. The automatic sampling machine developed and produced by our company has the function of drilling and milling, simple operation, rapid sampling, smooth sample edge, and will not damage the internal structure of the sample, making your test chip more realistic under metallographic microscope.

2、Product features:

1) The sampler adopts drilling and milling method, which avoids the deformation of the sample and ensures the test accuracy.

2) Feed mode: feed automatically after setting the sampling size until the slice is completely taken out.

3) PLC program control, man-machine interface, beautiful and generous appearance.

3、Scope of application:

The automatic sampling machine is suitable for micro-section sampling required for metallographic analysis of copper clad laminate and rigid printed circuit board production process and production processes.

4, product features:

1) Adopt high-quality pneumatic components and precision X-Y working platform for transmission, with high accuracy, small vibration and low noise.

2) The precision high-speed motorized spindle is prepared with high precision.

3) Full touch screen operation panel, which can store 1-12 groups of data at a glance.

4) The sample size range is adjustable and the applicability is wide.

5) The thickness of the sample is as high as 8mm (the copper layer is less than 16 layers), which can be applied to various multilayer circuit board manufacturers. If there are more than 16 copper layers and the total thickness of copper layers is not more than 1mm, a drilling machine can be used to pre-drill.

6) The sampler adopts drilling and milling method, which avoids the deformation of the sample and ensures the test accuracy.

7) Flexible design, can be manufactured according to the special size requirements of customers.

5, technical indicators and parameters

1) Set sampling size: determined according to customer requirements; (generally 20mm×15mm)

2) Maximum sample size is 510mm*510mm (it can be taken to any position of PCB).

3) Spindle of sampler: 30000r/min/220V/50Hz.

4) Sampling machine gongs and knives: free replacement of gongs and knives, recommended 2.0 mm.

5) Feed mode: feed automatically after setting the sampling size until the slice is completely taken out of the vacuum cleaner of the sampler.

6) Shape of sampler: length× width× height =656*690*1385.

7) Infrared positioning

8) Air source requirements：0.5-0.7MPa

9) PLC programming control

10）throat depth：280mm。
