China Bamtone Technology TDR Impedance Analyzer High Bandwidth Impedance Test 15G Bandwidth

1. Product Introduction：

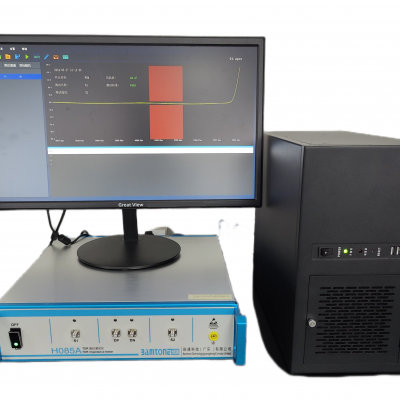

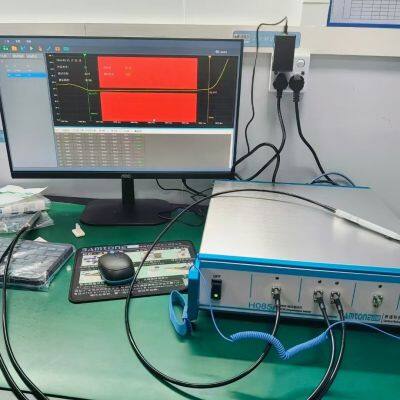

The TDR impedance tester is a high-bandwidth specialized instrument designed for impedance testing and analysis based on the time-domain reflection principle. Utilizing true differential broadband sampling technology, it enables automatic, rapid, batch processing, and accurate measurement of characteristic impedance for circuit boards and cables. Equipped with waveform display and analysis capabilities, this device is suitable for impedance testing of PCB rigid boards, FPC flexible boards, and wire and cable systems.

2、product function：

1、It has the function of test waveform display.

2、Test data is recorded in real time.

3、Test data can be automatically determined according to requirements (maximum minimum, average).

4、Test data can be exported to EXCEL document, PDF file, and print report function.

5、It can be switched between single end and differential test tasks conveniently and quickly.

6、It has the functions of rapid single measurement, automatic positioning of the starting section and end.

7、Turn on the auto-calibration function.

8、Can be expanded to connect the MES system and upload data. (Developed according to customers).

3、Applied range：

This solution is designed for impedance testing, analysis, and troubleshooting in industrial plants, universities, laboratories, research institutions, and military units. It primarily enables rapid test coupon analysis for PCB rigid boards and FPC flexible boards, as well as internal impedance line testing within PCB/FPC substrates. The system also performs impedance assessments on high-frequency cables, twisted pair wires, and various electrical connectors.

4、meet a criterion：

1) IPC-TM-650 Standard PCB transmission line characteristic impedance time domain reflection test method.

2) Intel Technical Standard PCB Test Method (TDR test PCB characteristic impedance).

3) China CPCA Standard Time Domain Reflection Test Method for Printed Circuit Board Characteristic Impedance.

4) Various international standards for high-speed serial buses (USB, SATA, PCI-E, HDMI, DP, etc.).

5、Product features：

1) The application fields of H series impedance tester cover the whole range of impedance strip testing and soft/hard board in-board testing.

2) The maximum bandwidth can reach 15GHz, which is at the leading level in China, and the test line length can be as short as 2cm.

3) The instrument is equipped with built-in calibration parts, and the automatic calibration is solved when the instrument is turned on, which solves the common problems of complex calibration process and calibration data drift in similar instruments.

4) The standard microstrip probe and adjustable probe are used for impedance line and impedance strip testing in the board to meet the requirements of 5G circuit board testing.

5) Built-in static protection circuit, can withstand 35kV static discharge, can be used in workshop environment, no need for strict anti-static laboratory and wear anti-static clothing.

6) The real difference measurement technology is adopted to completely simulate the real signal transmission scene, and the measurement accuracy is higher.

7) The technology combining high precision multi-point calibration with automatic calibration is adopted. The multi-point calibration at the factory is more accurate.

8) The measurement data can be exported in multiple formats and can be read by ERP system.

9) Intelligent test software, automatically acquire waveform start and end, reduce the deviation caused by different personnel operation. From setting to test only three steps to complete, simple and convenient operation.

10) It has real-time test mode and displays test data in real time.

6、Technical indicators and parameters:

7、Configuration scheme：

8、List of fragile parts and consumables：
