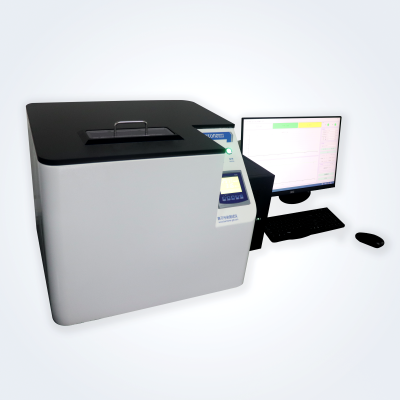

Ion Pollution Tester Bamtone/Ict3020

1. Product Introduction:

The ionic contamination test involves extracting surface contaminants from a product using a solvent. When ions in the solvent dissociate into cations or anions, their presence directly affects the solvent's conductivity. Given a fixed solvent concentration, the ion content directly correlates with its conductivity. Quantifying this relationship enables measurement of ionic contamination levels. IPC-™650 defines this method as the ROSE (Residual Organic Solvents) Method for Conductivity Analysis.

1. product function:

1. One-click regeneration filter.

2. Test temperature intelligent control (the test process is constant at 40±2ºC).

3. The real-time curve is displayed and the corresponding standard is automatically determined to meet the requirements.

4. The calibration process does not require complex calculations and is done in one step.

5. The chart shows that data browsing and device status are displayed on the same interface.

6. The product is tested quickly and nondestructively by the method of dynamic measurement.

7. After the test is completed, the results are automatically saved. The test report contains detailed information such as conductivity, ion concentration and test time, and real-time curves are displayed.

1. applied range:

Ion pollution tester is used in circuit board manufacturing, semiconductor packaging, automotive electronics,  electronics, medical, components, SMT assembly of electronic and electrical equipment production, assembly and other industries to test and clean the total amount of ion pollutants remaining on samples.

1. Product features:

1. Small tank design, higher sensitivity, suitable for testing small samples.

2. Meet MILP-28809,MIL-STD-2000A,DEF-STD 10/03,IPC-TR-583,TM-650,IECthe standards and requirements.

3. The background value of filtration and regeneration is high, which meets the highest industry standards, and the background value can be up to 200 megohms.

4. A fully closed test environment to reduce the impact of CO2 on test results.

5. Immersion spray cleaning to ensure the complete extraction of ionic pollutants.

6. Testable PCB board size range: 5cm x 5cm ~ 30cm x 20cm.

7. The whole process of calibration, purification and testing is redefined, the operation is simple, and the human-computer interface is powerful.

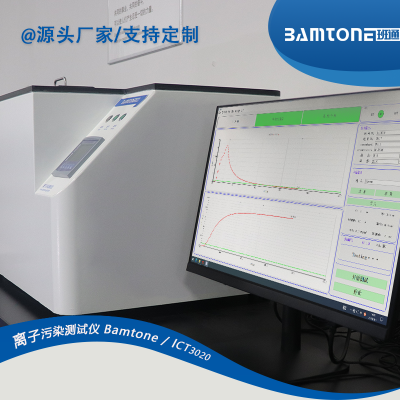

8. The conductivity curve, resistivity curve and ion concentration curve are displayed in real time, so that the test process is more intuitive.

9. The software is simple and intuitive to operate, and the results are automatically saved after testing.

10. Report format can be customized.

11. It can be connected to MES system.

1. Technical indicators and parameters:

1. Major components:

Configuration:

1. Software interface overview:

1. Measurement interface

2. Product parameter setting interface

3. Report format (customizable)

4.  Calibration and verification interface

5. 9List of breakable parts/consumables:
