.Product introduction:

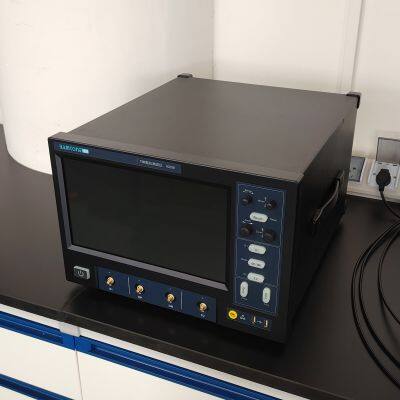

TDR impedance tester H200B is a special instrument for high-bandwidth characteristic impedance test and analysis based on the time domain reflection principle (TDR). The instrument adopts true differential broadband sampling technology, which greatly improves the test bandwidth of the instrument, and the bandwidth can reach 20GHZ. It can automatically, quickly and accurately test the characteristic impedance of circuit boards and wires and cables in batches, and has the functions of waveform display and data recording and analysis.
2.Product features:

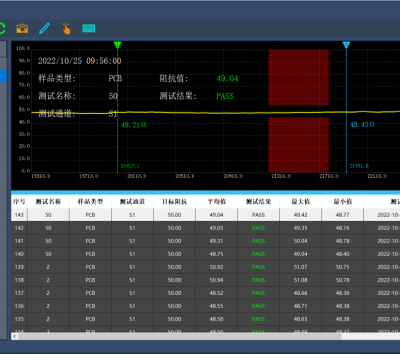

1、With test waveform display function.
2、The test waveform is stored in real time, which is convenient for subsequent calling and viewing.
3、The knob adjusts the waveform to move up and down left and right to zoom in and out.
4、Real-time recording of test data.
5、Test data can be automatically judged according to requirements (maximum value, minimum value and average value).
6、Test data can be exported as EXCLE documents, PDF files and printed reports.
7、Key switch single-ended, differential test task, convenient and fast.
8、One-key recovery function, task waveform debugging error, one-key reset.
9、It has the functions of rapid single measurement, automatic positioning of the beginning and end.
10、It has the function of real-time continuous testing and displays the current data in real time.
11、The instrument has built-in win10 system, and the picture storage, networking and export can be realized.
12、13.3-inch LCD with touch screen is adopted, which is convenient for observation and operation.
13、Automatic start-up calibration function.
14、Can expand the connection to MES system and upload data. (developed according to customers)
15、All-in-one machine design, single machine can complete all operations.
3.Scope of application:
It is suitable for impedance testing, impedance analysis and impedance troubleshooting in factories, enterprises, universities, laboratories, scientific research institutions and military units. It is mainly used for the quick test coupon of PCB hard board and FPC soft board, and the impedance line test in PCB hard board and FPC soft board. Impedance test of high frequency cable, twisted pair, wire and cable, electronic connector test.
4.Meet the standard:
1) IPC-TM-650 standard PCB transmission line characteristic impedance time domain reflection test method
2) Intel technical standard PCB test method (TDR test PCB characteristic impedance)
3) Time domain reflection test method for characteristic impedance of China CPCA standard printed board
4) Various international standards of high-speed serial bus (USB, SATA, PCI-E, HDMI, DP, etc.)
5.product features:
1) The application field of H200B covers impedance bar test and in-board test of soft board/hard board.
2) The highest bandwidth can reach 20GHz, which is at the leading level in China, and the shortest test line length can reach 2 cm.
3) The instrument has built-in calibration parts, which can be automatically calibrated when it is turned on, which solves the common problems of similar instruments such as complicated calibration process and drift of calibration data.

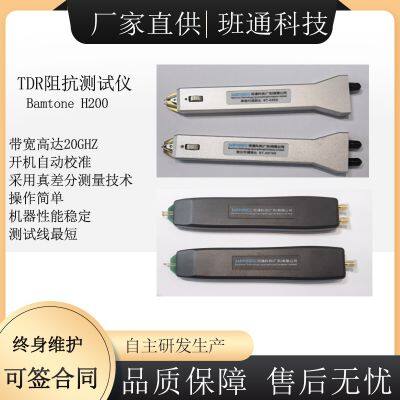

4) Standard microstrip probe and adjustable probe are used to test impedance lines and strips in the board to meet the test requirements of 5G circuit boards.
5) Built-in electrostatic protection circuit can withstand 35kV electrostatic discharge, and can be used in workshop environment, without strict anti-static laboratory and anti-static clothing operation.
6) Using true differential measurement technology, the real signal transmission scene is completely simulated and the measurement accuracy is higher.
7) Adopting the technology of combining high-precision multi-point calibration with automatic calibration, the factory multi-point calibration has higher accuracy.
8) Measurement data can be exported in various formats and can be read by ERP system.
9) Intelligent test software can automatically obtain the starting point and end of waveform, reducing the deviation caused by different personnel's operation. It takes only three steps from setting to testing, and the operation is simple and convenient.
10) With real-time test mode, real-time display test data.
6.technical indicators and parameters
product model |
H200B |
Impedance measurement range |
Single-ended 10 ~ 100 ω |
Differential 20~200Ω | |
Impedance accuracy |
Single-ended 50 Ω 1%, differential 100 Ω 2% |
bandwidth |
20G |
Minimum test length |
20mm (matching impedance measurement) |
Incident wave rise time |
|
serviceable range |
Impedance bar test, in-board impedance line test, wire, cable, connector test, etc. |
Impedance resolution |
0.03Ω |
Linear resolution |
200 points/inch |
port number |
4 channels: 2 single-ended and 1 differential pair |
port |

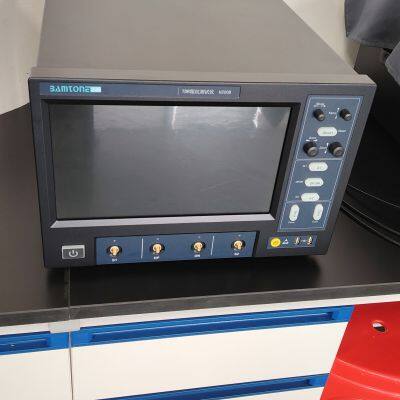

Front panel: 4 SMA/50Ω test channels, 1 electrostatic bracelet jack and 2 USB sockets. Back panel: 1 power socket and 1 network interface. |
software |
Built-in Windows10 environment |
Measurement function |
Single-ended measurement/differential measurement/common mode measurement |
system |
Built-in industrial computer, WIN10 system |
power consumption |
（AC220V/50Hz） |
measure |
500mmX420mmX295mm （LxWxH） |
weight |
20Kg |
monitor |
Resolution 1920*1080 |
7、 Configuration scheme:
serial number |
name |
content |
model |
quantity |
remarks |
1 |
Impedance tester |
Test host (built-in computer) |
Bamtone H200B |
1 |
standard configuration |
2 |
Single ended fixed probe |
Single ended impedance strip test |
BT-S50 |
1 |
standard configuration |
3 |
Differential fixed probe |
Differential impedance strip test |
BT-D100 |
1 |
standard configuration |
4 |
Single-ended adjustable probe |
Single-ended in-board test |
BT-AS50 |
1 |
standard configuration |
5 |
Differential adjustable probe |
Differential in-board test |
BT-AD100 |
1 |
standard configuration |
6 |
cable conductor |
black |
1m |
4 |
standard configuration |
7 |
Impedance analysis software |
Analytical test |
customised version |
1 |
standard configuration |
8 |
Power cord |
3-port power cord |
2 m |
1 |
standard configuration |
9 |
Air correcting rod |
50 euros |
CAL-50 |
2 |
standard configuration |
