Overview

The FLS F3.80 Oval Gear Flow Sensor is a high-precision, durable solution engineered for accurate flow measurement of various liquids—especially high-viscosity, non-conductive fluids—across industrial and laboratory applications. Its core oval gear technology ensures exceptional repeatability and linearity, making it suitable for scenarios requiring strict flow control, such as chemical dosing, oil monitoring, and pulsating flow measurement. Designed with compact dimensions and versatile mounting (via 1/4” GAS female threads), it integrates easily into both flexible and rigid pipelines. Constructed from chemically resistant materials (PP, ECTFE/Halar®, or 316L stainless steel) and sealed with FPM O-rings, the sensor withstands harsh liquids while minimizing pressure loss, ensuring long-term reliability with minimal maintenance.

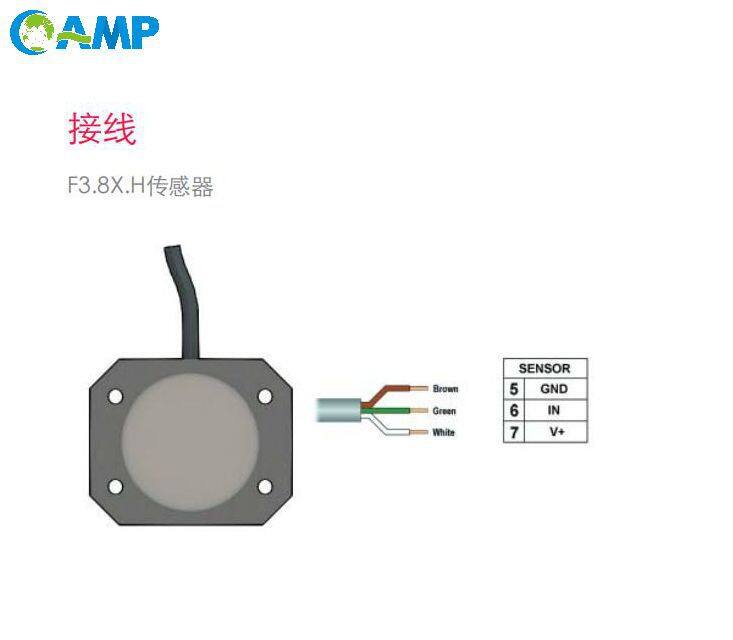

FIP F3FIP F3.80椭圆齿轮流量传感器接线图.jpg

Key Features

  • Superior Measurement Performance: Delivers high linearity (±1% of full scale) and ultra-low repeatability (<0.3% of full scale), guaranteeing accurate data for critical processes like chemical dosing and lab testing.

  • High-Viscosity Compatibility: Handles liquids with viscosities up to 1000 cP (mPas), making it ideal for oil, thick chemicals, and other viscous industrial fluids.

  • Chemical & Temperature Resistance:

    • Body options: PP (cost-effective, suitable for mild chemicals), ECTFE/Halar® (enhanced chemical resistance), or 316L stainless steel (for aggressive fluids and higher pressure).

    • Operating temperature range: -10°C to 60°C (14°F to 140°F), adapting to most industrial and lab environments.

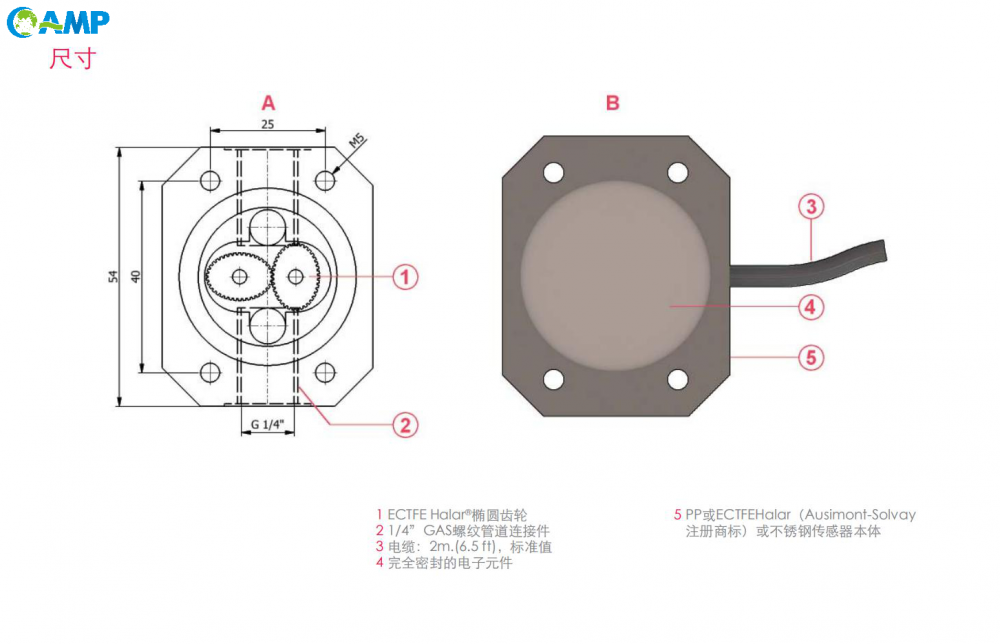

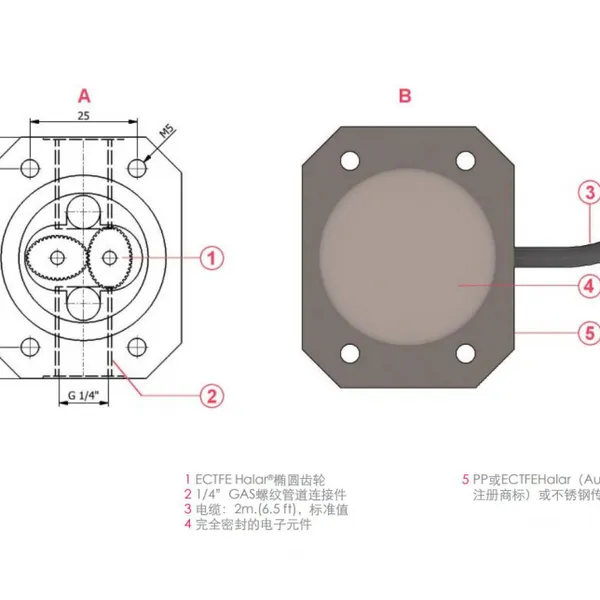

  • Compact & Easy Installation: Small size (54mm length) and 1/4” GAS female threads enable quick mounting on flexible/rigid pipes; low pressure loss design avoids disrupting system flow.

  • Reliable Environmental Protection: IP65-rated enclosure protects internal electronics from dust and water jets, ensuring stability in industrial workshops or lab settings.

  • Flexible Electrical Output: CMOS square wave output (compatible with NPN/PNP) and low power consumption (<15 mA @ 24 VDC) allow seamless connection to PLCs, controllers, or data loggers.

  • Technical Specification

Category

Details

General


Model Variants

F3.81.H (10-100 L/h / 0.044-0.44 GPM); F3.82.H (25-150 L/h / 0.11-0.66 GPM)

Linearity

±1% of full scale

Repeatability

<0.3% of full scale

Max Viscosity

1000 cP (mPas)

Operating Pressure

- PP body: 6 bar (87 psi) @ 25°C; 3 bar (44 psi) @ 60°C- ECTFE body: 8 bar (116 psi) @ 25°C; 5 bar (73 psi) @ 60°C- 316L SS body: 8 bar (116 psi) @ 60°C

Operating Temperature

-10°C to 60°C (14°F to 140°F)

Wetted Materials

- PP version: PP body, ECTFE gears, zirconia shaft, FPM O-rings- ECTFE version: ECTFE body/gears, zirconia shaft, FPM O-rings- 316L SS version: 316L SS body, ECTFE gears, 316L SS shaft, FPM O-rings

Connection

1/4” GAS female thread

Protection Grade

IP65

Electrical


Power Supply

5-24 VDC ±10% (regulated)

Power Current

<15 mA @ 24 VDC

Output Signal

CMOS square wave (NPN/PNP compatible)

K Factor

- F3.81.H: 5950 pulses/L (22521 pulses/US gallon)- F3.82.H: 3400 pulses/L (12869 pulses/US gallon)

Cable Length

2 m (6.5 ft) standard

Certifications

ISO 9001, ISO 14001, CE, RoHS, GOST R compliant

Applications
Widely used in scenarios requiring precise flow measurement of liquids (especially high-viscosity types), including:

  • Chemical industry: Monitoring and dosing of liquid chemicals.

  • Laboratory units: Accurate flow control for experimental setups.

  • Dosing systems: Precision fluid dispensing in manufacturing.

  • Pulsating flow measurement: Stable performance even with irregular flow.

  • Oil measurement: Tracking flow of lubricating or hydraulic oils.


Product Tags: FLS F3.80 Oval Gear Flow Sensor , FLS F3.80 Compact Flow Sensor , Industrial Oval Gear Flow Meter
