FLS F6.61 Hot-Tap Electromagnetic Flow Meter – Bidirectional Measurement for Conductive Liquids

Shanghai CAMP Environmental Protection Technology Co., Ltd. Platinum Verified Supplier
1Yr
Verified Business License
FLS F6.61 Hot-Tap Electromagnetic Flow Meter – Bidirectional Measurement for Conductive Liquids thumbnail-1
FLS F6.61 Hot-Tap Electromagnetic Flow Meter – Bidirectional Measurement for Conductive Liquids photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Electromagnetic Flow Meter
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Electromagnetic Flow Meter

The FLS F6.61 Hot-Tap Electromagnetic Flow Meter is an innovative, maintenance-free solution designed for accurate measurement of conductive homogeneous liquids—including contaminated fluids, slurries, and pastes—in high-pressure industrial and municipal applications. Its standout feature is the hot-tap installation design, which allows sensor insertion or removal without shutting down the pipeline, minimizing operational downtime. With no moving mechanical parts, it eliminates wear and reduces maintenance needs, ensuring long-term reliability even in harsh fluid conditions. It offers three flexible output options (frequency for FLS monitors, 4-20mA for long-distance/PLC connection, and user-configurable volume pulse output) to fit diverse system requirements. Equipped with a USB interface and free dedicated software (available on FLS’s website), it enables easy parameter setup (e.g., full-scale flow, alarm thresholds) via a PC. Compatible with a wide pipe size range (DN50/2” to DN900/36”) and installed via standard saddle clamps and isolation ball valves, it delivers exceptional versatility for large-scale fluid management systems.

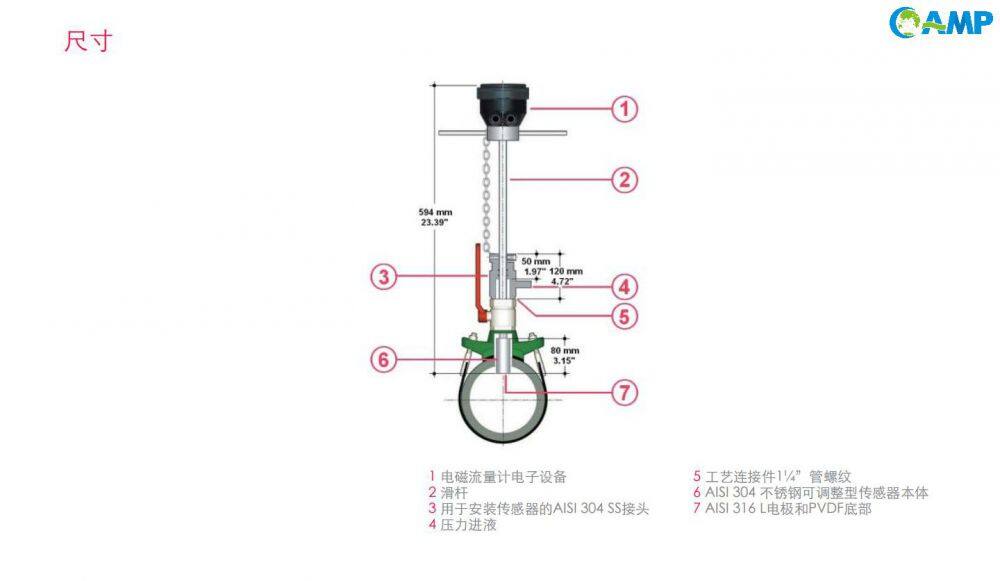

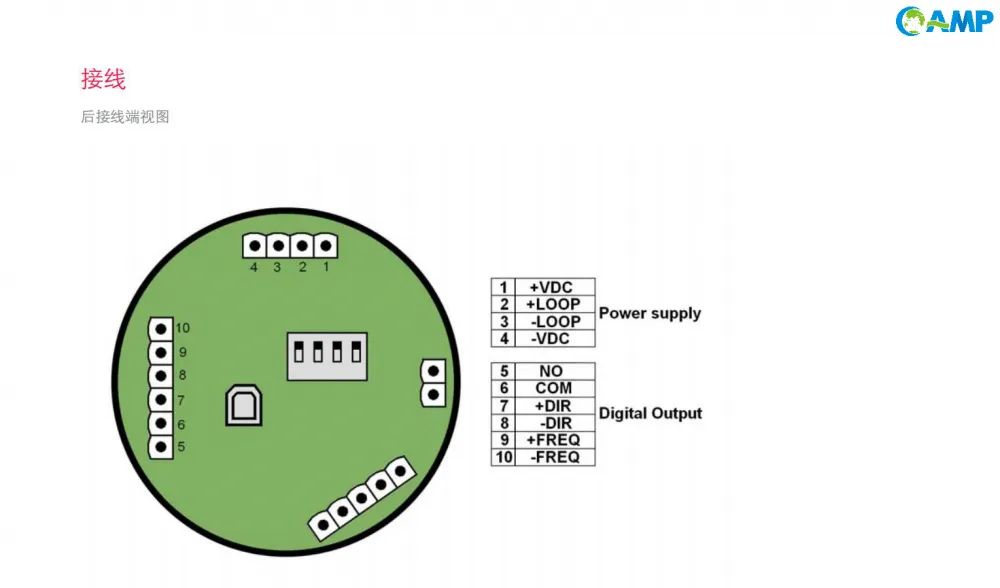

FIP F6.61热插拔式电磁流量计尺寸图.jpgFIP F6.61热插拔式电磁流量计接线图.png

Key Features

  • Hot-Tap Installation: Enables sensor insertion/removal without pipeline shutdown, reducing operational interruptions—critical for high-pressure, continuous-flow applications like water distribution or wastewater treatment.

  • Broad Compatibility:

    • Pipe size range: DN50 (2”) to DN900 (36”); custom sizes available on request, fitting large-scale industrial and municipal pipelines.

    • Adjustable flow rate: 0.05–8 m/s (0.15–26.24 ft/s); optional bidirectional flow measurement for systems requiring reverse-flow monitoring (e.g., leak detection).

  • Maintenance-Free Design: No moving components mean zero wear, no mechanical failure risks, and minimal upkeep—ideal for contaminated or abrasive liquids that damage traditional meters.

  • Precise Measurement: Delivers linearity of ±1% of reading + 1.0 cm/s and repeatability of ±0.5% of reading, ensuring accurate data for critical processes like irrigation flow control or raw water extraction.

  • Flexible Outputs:

    • Isolated 4-20mA output: For long-distance PLC connection (max loop impedance: 800Ω @ 24VDC).

    • Solid-State Relay (SSR) output: Configurable for min/max alarms, volume measurement, pulse output, window alarms, or shutdown.

    • Open-collector frequency output: Compatible with FLS FLOWX3 monitors (M9.02, M9.03) and third-party controllers.

  • User-Friendly Setup: USB port and free FLS software allow intuitive parameter adjustment via PC, tailored to specific installation needs (e.g., full-scale calibration).

  • Durable Construction:

    • Body materials: 304 stainless steel (structural), PVDF (chemical resistance), 316L stainless steel (electrodes) for corrosion protection.

    • Seals: EPDM (standard) or FPM (enhanced chemical resistance); IP65-rated enclosure protects against dust and water jets.

Category

Details

General


Pipe Size Range

DN50 – DN900 (2” – 36”); custom sizes available on request

Flow Rate Range

0.05 – 8 m/s (0.15 – 26.24 ft/s); bidirectional measurement optional

Linearity

±1% of reading + 1.0 cm/s

Repeatability

±0.5% of reading

Operating Pressure

Max 16 bar (232 psi) @ 25°C (77°F); Max 8.6 bar (124 psi) @ 60°C (140°F)

Operating Temperature

-20°C to 70°C (-4°F to 158°F) (ambient); Liquid temp: -10°C to 60°C (PVDF bottom); -10°C to 150°C (PEEK bottom)

Liquid Requirements

Homogeneous liquids/pastes/slurries (with solids); Min conductivity: 20 μS

Wetted Materials

Body: 304 SS/PVDF; Electrodes: 316L SS; Seals: EPDM/FPM

Protection Grade

IP65

Electrical


Power Supply

12 – 24 VDC ±10% (regulated); Reverse polarity & short-circuit protected; Max current consumption: 250 mA

4-20mA Output

Isolated; Max loop impedance: 800Ω (24VDC), 250Ω (12VDC); Positive/negative flow indication

SSR Output

Optically isolated; Max sink current: 50mA; Max pull-up voltage: 24VDC; Max pulses/min: 300; Hysteresis: user-selectable

Frequency Output

Open-collector NPN; 0 – 800 Hz; Max pull-up voltage: 24VDC; Max current: 50mA (current-limited)

Direction Output

Open-collector NPN; Max pull-up voltage: 24VDC; Max current: 50mA; 0 VDC (arrow direction), +VDC (reverse direction)

Certifications

ISO 9001, ISO 14001, CE, RoHS, GOST R compliant

Applications
Widely suited for measuring conductive liquids (including contaminated or viscous types) in:

  • Municipal water distribution and raw water extraction systems

  • Water and wastewater treatment plants

  • Leak detection and monitoring for pipeline networks

  • Groundwater regulation and irrigation systems

  • Industrial fluid management (e.g., process water circulation)


Product Tags: Electromagnetic Flow Meter , Bidirectional Measurement , Hot-Tap Electromagnetic Flow Meter
