Help CenterHigh-Precision FLS F3.10 Turbine Flow Sensor With ABS/PVDF Body – Ideal for Water Treatment & Filtration
Related Products
-
FLS F3.20 Flow Sensor Optimized for HVAC Systems, Cooling Units, and Boiler Feed Water, Featuring Low Maintenance and High Precision AccuracyNegotiableMOQ: 100 Pieces -
FLS F3.80 Oval Gear Flow Sensor – High Precision for High-Viscosity Liquids (10-150L/h, IP65)NegotiableMOQ: 100 Pieces
-
FLS F6.30 Paddlewheel Flow Transmitter With 4-20mA/Pulse Output for DN15-DN600 Pipes, IP65 & ±0.75% LinearityNegotiableMOQ: 100 Pieces
-
FLS F6.60 Flow Meter Ideal for Wastewater, Seawater, and HVAC Systems, Featuring No Moving Parts, Low Maintenance, and IP65 RatingNegotiableMOQ: 1 Piece
-
FLS F6.61 Hot-Tap Electromagnetic Flow Meter – Bidirectional Measurement for Conductive LiquidsNegotiableMOQ: 1 Piece
Overview
The FLS F3.10 Mini Paddle Wheel Flow Sensor leverages simple yet reliable paddle wheel technology, specifically engineered for measuring solid-free liquids. It accurately detects flow rates starting from 0.25 m/s (0.8 ft/s) and outputs a highly repeatable frequency signal, ensuring consistent performance in industrial applications. With a rugged construction, mature core technology, and minimal-to-zero maintenance requirements, this sensor is designed for long-term reliability. Its compact size and specialized design enable easy installation on FIP standard tee-fittings ranging from DN15 to DN40 (0.5”-1.5”), making it adaptable to various pipeline setups.
Key Features
Technical Specifications
Category |
Details |
General |
|
Pipe Size Range |
DN15 - DN40 (0.5” - 1.5”) |
Flow Rate Range |
0.25 - 4 m/s (0.8 - 12.5 ft/s) |
Linearity |
±1% of full scale |
Repeatability |
±0.5% of full scale |
Min. Reynolds Number |
4500 |
Operating Pressure |
Max 10 bar (145 psi) @ 20°C (68°F); Max 2 bar (30 psi) @ 70°C (158°F) |
Operating Temperature |
-20°C to 70°C (-4°F to 158°F) |
Wetted Materials |
Body: ABS (PVDF optional); O-rings: EPDM/FPM; Rotor: ABS (PVDF optional); Shaft: 316L Stainless Steel; Magnets: SmCo5 |
Electrical |
|
Power Supply |
5 - 24 VDC |
Supply Current |
|
Output Signal |
Square wave; Nominal frequency: 15 Hz per m/s (4.6 Hz per ft/s) |
Output Type |
Transistor NPN open collector |
Max Output Current |
10 mA |
Cable Length |
2 m (6.5 ft) standard; Up to 300 m (990 ft) maximum |
Certifications |
Manufactured under ISO 9001 & ISO 14001; CE, RoHS, GOST R compliant |
Applications
Ordering Information
Product Code |
Version |
Power Supply |
Length |
Body/Seal Material |
Protection Grade |
Flow Rate Range |
Weight |
F3.10.H.01 |
Hall |
5-24 VDC |

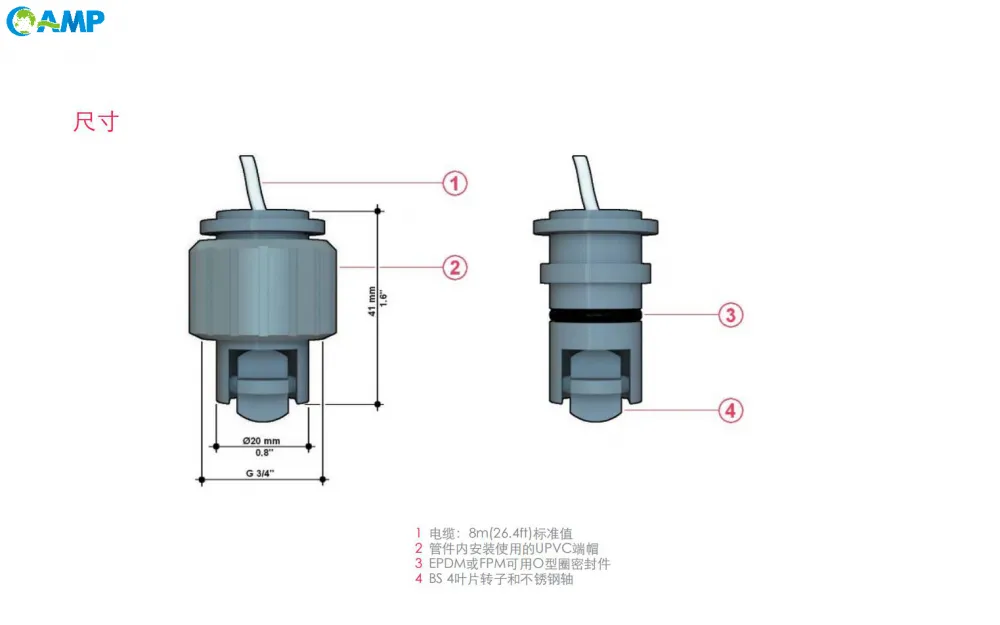

41 mm |
ABS/EPDM |
IP68 |
0.25-4 m/s (0.8-12.5 ft/s) |
100g |
F3.10.H.02 |
Hall |
5-24 VDC |
41 mm |
ABS/FPM |
IP68 |
0.25-4 m/s (0.8-12.5 ft/s) |
100g |
