FLS F6.60 Flow Meter Ideal for Wastewater, Seawater, and HVAC Systems, Featuring No Moving Parts, Low Maintenance, and IP65 Rating

FLS F6.60 Flow Meter Ideal for Wastewater, Seawater, and HVAC Systems, Featuring No Moving Parts, Low Maintenance, and IP65 Rating thumbnail-1
FLS F6.60 Flow Meter Ideal for Wastewater, Seawater, and HVAC Systems, Featuring No Moving Parts, Low Maintenance, and IP65 Rating photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Electromagnetic Flow Meter
Contact Supplier Request Quote Chat Now
Shanghai CAMP Environmental Protection Technology Co., Ltd.
Platinum Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Electromagnetic Flow Meter
The FLS F6.60 Insertion Electromagnetic Flow Meter is a cutting-edge, maintenance-free solution engineered for accurate measurement of conductive homogeneous liquids—including contaminated fluids, slurries, and pastes—across industrial, municipal, and commercial applications. Its core advantage lies in a no-moving-parts design, eliminating wear, reducing maintenance needs, and ensuring long-term reliability even with dirty or abrasive liquids. It offers flexible output options (4-20mA for long-distance transmission, frequency output for FLS monitors, and user-configurable volume pulse output) to adapt to diverse system requirements. Equipped with a USB interface and free dedicated software (available on FLS’s website), it allows easy parameter setup (e.g., full-scale flow, cut-off values) via a PC, tailored to specific installation needs. With compatibility for an ultra-wide pipe size range (DN15/0.5” to DN600/24”) and specialized versions for high-temperature or saline environments (e.g., seawater), it delivers versatility across demanding use cases.
Key Features

  • Maintenance-Free Design: No moving components mean zero wear, minimal upkeep, and extended service life—ideal for contaminated or abrasive liquids that damage traditional mechanical meters.

  • Broad Applicability:

    • Pipe size compatibility: DN15 (0.5”) to DN600 (24”), fitting most industrial and municipal pipeline systems.

    • Flow rate range: 0.05–8 m/s (0.15–26.24 ft/s), adjustable to match specific application needs; optional bidirectional flow measurement for systems requiring reverse-flow monitoring.

    • Specialized versions: High-temperature (PEEK-bottom variant, -10°C to 150°C) and saline-resistant options for seawater or high-chloride fluids.

  • Precise & Reliable Measurement: Delivers linearity of ±1% of reading + 1.0 cm/s and repeatability of ±0.5% of reading, ensuring accurate data for critical processes like water treatment or industrial flow control.

  • Flexible Outputs:

    • Isolated 4-20mA output: For long-distance PLC connection (max loop impedance: 800Ω @ 24VDC).

    • Solid-State Relay (SSR) output: Configurable for min/max alarms, volume measurement, pulse output, or window alarms.

    • Open-collector frequency output: Compatible with FLS flow monitors (FLOWX3 M9.02/M9.03/M9.50) and third-party controllers.

  • User-Friendly Setup: USB port and free FLS software enable intuitive parameter adjustment (e.g., full-scale flow, alarm thresholds) via PC, reducing installation time.

  • Durable & Chemical Resistant:

    • Sensor body materials: 316L stainless steel (general use), CuNi alloy (corrosion resistance for saline), or PVDF/PEEK (chemical/heat resistance).

    • Seals: EPDM (standard) or FPM (enhanced chemical resistance); IP65-rated enclosure protects against dust and water jets.

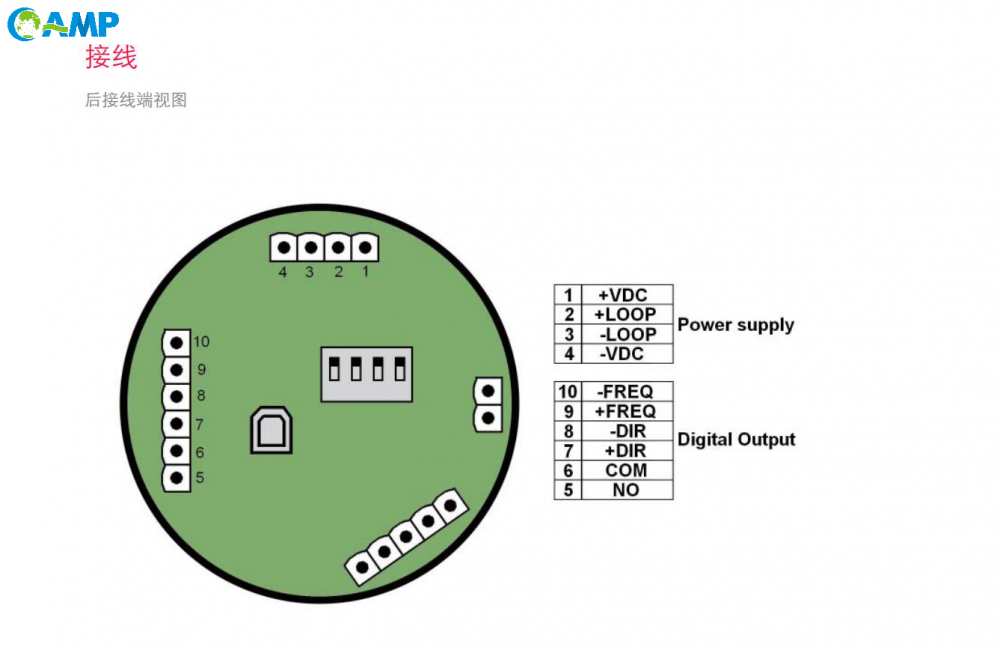

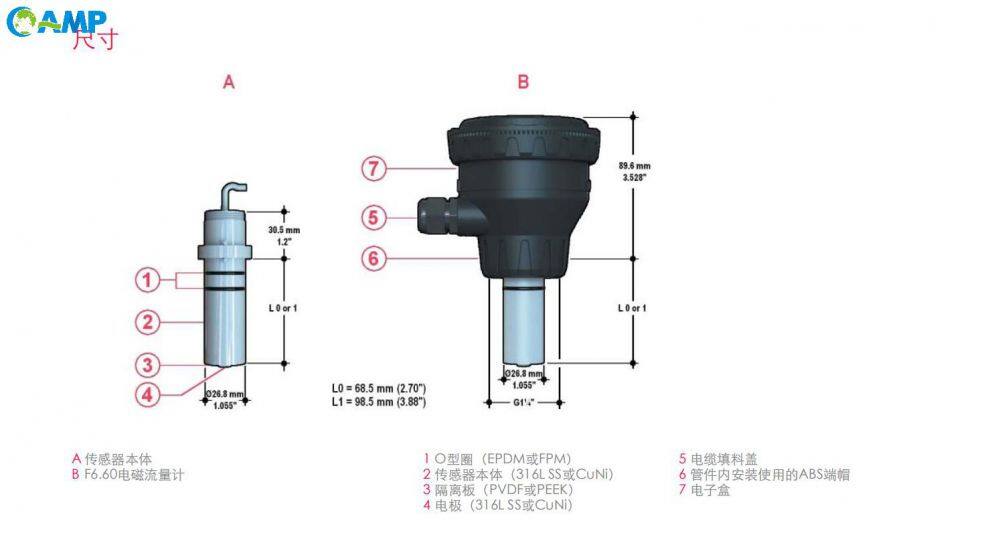

  • FIP F6.60电磁流量计尺寸图.jpgFIP F6.60电磁流量计接线图.png

  • Technical Specifications

Category

Details

General

Pipe Size Range

DN15 – DN600 (0.5” – 24”)

Flow Rate Range

0.05 – 8 m/s (0.15 – 26.24 ft/s); bidirectional measurement optional

Linearity

±1% of reading + 1.0 cm/s

Repeatability

±0.5% of reading

Operating Pressure

Max 16 bar (232 psi) @ 25°C (77°F); Max 8.6 bar (124 psi) @ 60°C (140°F)

Operating Temperature

-20°C to 70°C (-4°F to 158°F) (ambient); Liquid temp: -10°C to 60°C (PVDF bottom); -10°C to 150°C (PEEK bottom)

Liquid Requirements

Homogeneous liquids/pastes/slurries; Min conductivity: 20 μS

Wetted Materials

Body: 316L SS/CuNi alloy; Isolation plate: PVDF/PEEK; Electrodes: 316L SS/CuNi alloy; Seals: EPDM/FPM

Protection Grade

IP65

Electrical

Power Supply

12 – 24 VDC ±10% (regulated); Reverse polarity & short-circuit protected; Max current consumption: 250 mA

4-20mA Output

Isolated; Max loop impedance: 800Ω (24VDC), 250Ω (12VDC); Positive/negative flow indication

SSR Output

Optically isolated; Max sink current: 50mA; Max pull-up voltage: 24VDC; Max pulses/min: 300; Hysteresis: user-selectable

Frequency Output

Open-collector NPN; 0 – 800 Hz; Max pull-up voltage: 24VDC; Max current: 50mA (current-limited)

Direction Output

Open-collector NPN; Max pull-up voltage: 24VDC; Max current: 50mA; 0 VDC (arrow direction), +VDC (reverse direction)

Certifications

ISO 9001, ISO 14001, CE, RoHS, GOST R compliant
Applications
Widely suited for measuring conductive liquids (including contaminated or viscous types) in:

  • Municipal water and wastewater treatment plants

  • Raw water extraction and industrial water distribution systems

  • Textile manufacturing (dye liquor flow)

  • Swimming pools, spas, and aquariums (water circulation)

  • HVAC systems (cooling/heating water flow)

  • General manufacturing and processing facilities

  • Seawater or high-saline applications (specialized CuNi/PEEK variants)


Product Tags: Electromagnetic Flow Meter , FLS F6.60 Insertion Electromagnetic Flow Meter , FLS F6.60 Flow Meter
