FLS M9.08.P1 Panel-Mounted PH/ORP & Flow Monitor (12-24 VDC Power Supply)

Shanghai CAMP Environmental Protection Technology Co., Ltd. Platinum Verified Supplier
1Yr
Verified Business License
FLS M9.08.P1 Panel-Mounted PH/ORP & Flow Monitor (12-24 VDC Power Supply) thumbnail-1
FLS M9.08.P1 Panel-Mounted PH/ORP & Flow Monitor (12-24 VDC Power Supply) photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Origin:
china
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Origin china
FLS M9.08 is a professional dual-parameter monitor dedicated to simultaneous measurement of pH/ORP and flow, designed to meet integrated water quality and process monitoring needs in industrial, environmental, and scenarios. Its core strengths are as follows:

  • A 4-inch wide full-graphic display with multi-color backlight (5-level user-adjustable timing activation), which clearly presents measured values and practical information, and allows easy identification of measurement status even from a distance;

  • Guiding software that enables error-free and fast parameter configuration, plus support for multiple calibration types to match user accuracy requirements for both pH/ORP and flow measurements;

  • Dedicated 4-20mA output lines for each measurement parameter, realizing remote data transmission to external devices; flexible combination of digital outputs also supports customized control of all target processes.

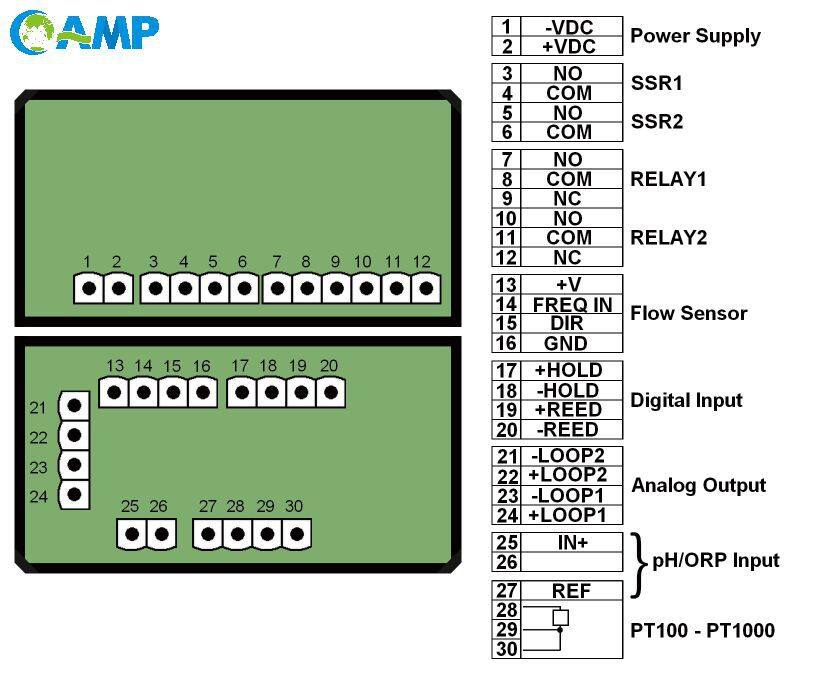

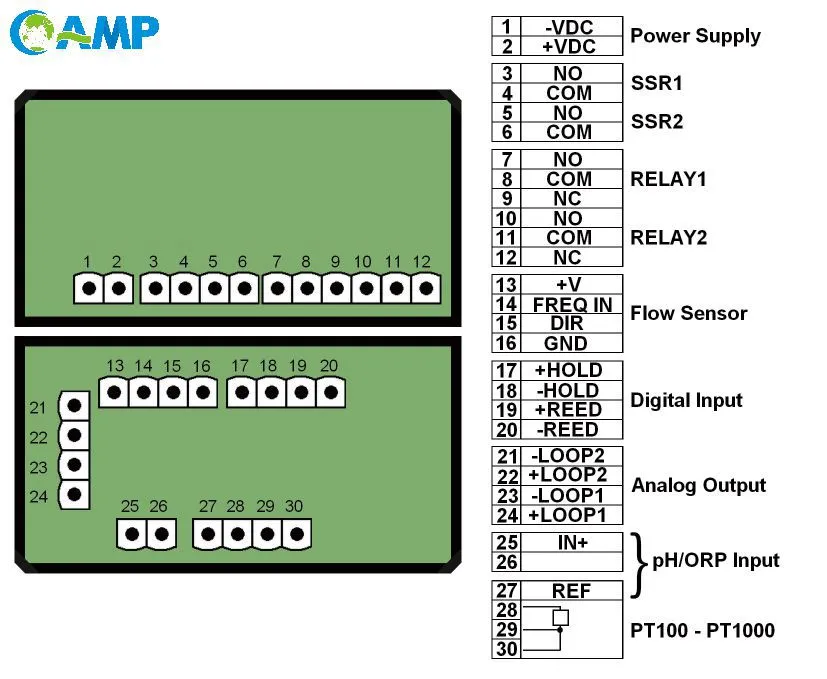

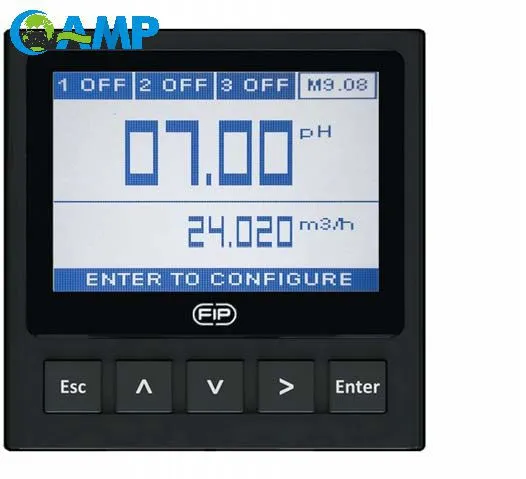

  • M9.08表头.jpgM9.08后端接线图.jpg

Applicable Scenarios
It covers multiple fields requiring pH/ORP and flow monitoring, including:

  • Water treatment and regeneration, industrial wastewater treatment and recovery

  • Scrubber control, neutralization systems, heavy metal recovery

  • Metal surface coating processes, processing and manufacturing industries, chemical production

  • Swimming pool and spa water quality monitoring

Key Features

  1. Display & Operation: Equipped with a wide-screen graphic display, multi-color backlight, and onboard assistant, ensuring intuitive operation and clear status recognition.

  2. Dual-Parameter Measurement: Synchronously monitors pH/ORP, temperature, and flow (frequency-based), providing comprehensive water quality and process data.

  3. Calibration & Usability: Features an intuitive calibration program for simple and accurate parameter calibration; supports multi-language menus to adapt to global user needs.

  4. Output & Control: Configured with mechanical relays (for controlling external equipment) and solid-state relays (for programmable alarms), meeting diverse control and early warning demands.

Category

Details

Associated Sensors

FLS pH/ORP sensors; FLS Hall effect flow sensors (with frequency output) or FLS F6.60 series sensors; FLS temperature sensors (Pt100/Pt1000)

Materials

Enclosure (ABS); Display window (PC); Panel & wall-mount gaskets (silicone rubber); Keyboard (5-button silicone rubber)

Display Specifications

LC full-graphic display, 3-color backlight, 1-second update rate, front housing IP65 protection

Measurement Ranges & Resolution/Accuracy

- pH: -2-16pH, resolution ±0.01pH- ORP: -2000-+2000mV, resolution ±1mV- Temperature: -50-150°C (-58-302°F), resolution 0.1°C/°F (Pt1000) / 0.5°C/°F (Pt100)- Flow (frequency): 0-1500Hz, accuracy 0.5%

Electrical Parameters

  • Power Supply: 12-24VDC ±10% (regulated); FLS Hall effect flow sensor power: 5VDC @ <20mA (optically isolated from current loop, with short-circuit protection).

  • Current Outputs (2 channels): 4-20mA (isolated, fully adjustable/reversible); maximum loop impedance: 1000Ω @ 24VDC.

  • Solid-State Relay (SSR) Outputs (2 channels):

    • Selectable functions: Minimum alarm, maximum alarm, window alarm, frequency output, pulse output, proportional pulse, timed pulse, off;

    • Optically isolated, 50mA maximum leakage current, 24VDC maximum pull-up voltage; 300 pulses/min maximum, user-selectable hysteresis.

  • Mechanical Relay Outputs (2 channels):

    • Same functions as SSR outputs; mechanical SPDT contacts;

    • Expected mechanical life: 10⁷ cycles (minimum operation); electrical life: 10⁵ on/off cycles (5A/240VAC); 60 pulses/min maximum, user-selectable hysteresis.

Environmental Parameters

  • Operating temperature: -20°C to +70°C (-4°F to 158°F)

  • Storage temperature: -30°C to +80°C (-22°F to 176°F)

  • Relative humidity: 0-95% (non-condensing)

Standards & Certifications

  • Manufactured in accordance with ISO 9001 and ISO 14001 requirements

  • CE certified

  • RoHS compliant

  • GOST R certified


Product Tags: FLS M9.08 , Dual-Parameter Monitor , pH/ORP & Flow Monitor
