Industrial M9.03 Dual Flow Monitor | IP65 Front, Multi-Color Backlight, Compatible With Hall Effect & F6.60 Sensors

Industrial M9.03 Dual Flow Monitor | IP65 Front, Multi-Color Backlight, Compatible With Hall Effect & F6.60 Sensors thumbnail-1
Industrial M9.03 Dual Flow Monitor | IP65 Front, Multi-Color Backlight, Compatible With Hall Effect & F6.60 Sensors photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Specification:
FLS C6.30
Origin:
china
Contact Supplier Request Quote Chat Now
Shanghai CAMP Environmental Protection Technology Co., Ltd.
Platinum Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Specification FLS C6.30
Origin china

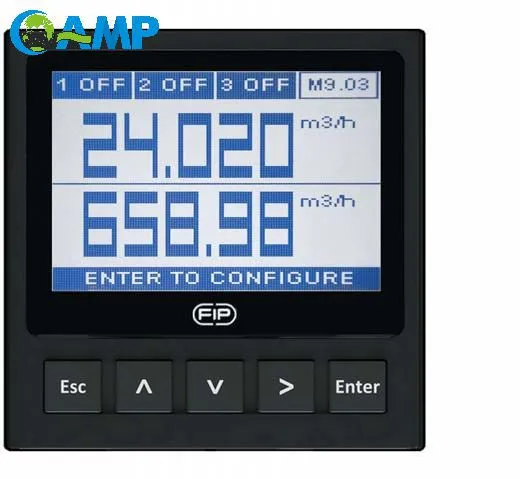

The FLS M9.03 Dual-Parameter Flow Monitor is an advanced, multi-functional device engineered to simultaneously process frequency signals from two FLS flow sensors (Hall-effect sensors or F6.60 electromagnetic flowmeters), converting them into readable flow velocity values for dual-channel monitoring. Its core advantage lies in dual-parameter measurement capability, making it ideal for systems requiring simultaneous flow tracking (e.g., inlet/outlet flow in filtration systems or parallel pipeline monitoring). Equipped with a 4-inch full-graphic LCD display and 3-color adjustable backlight, it ensures clear visibility of real-time flow rates, total volume, and system status—even from a distance—with a 1-second data update rate. The monitor features intuitive "on-site calibration" (via device characteristics or reference values) and guided software to prevent configuration errors, while two independent 4-20mA outputs enable remote transmission of each flow parameter to external devices like PLCs. With flexible control options (2 solid-state relays and 2 mechanical relays), it supports custom alarms and process control, adapting to diverse industrial, municipal, and agricultural applications. Available in panel-mount and wall-mount variants, it balances durability, usability, and versatility.


Key Features

  • Dual-Channel Monitoring: Simultaneously connects to 2 FLS flow sensors (Hall-effect or F6.60 electromagnetic), enabling parallel flow measurement for inlet/outlet, dual-pipeline, or comparative flow analysis.

  • Clear, Informative Display: 4-inch full-graphic LCD with 3-color backlight (user-adjustable 5-level timing) shows real-time flow velocity, total volume, and flow rate changes—ensuring readability in low-light or distant industrial settings.

  • Simplified Calibration & Setup: Guided software eliminates parameter configuration errors; "on-site calibration" allows quick setup by inputting device specs or reference values, reducing installation time.

  • Flexible Output & Control:

    • 2 isolated, fully adjustable/reversible 4-20mA current outputs: Transmit each flow channel’s data independently to remote controllers/PLCs (max loop impedance: 800Ω @ 24VDC).

    • 2 solid-state relays (SSR): Configurable for min/max alarms, pulse output, window alarms, frequency output, or shutdown (50mA max sink current, 24VDC max pull-up voltage).

    • 2 mechanical SPDT relays: For heavy-duty control (5A/240VAC switching, 10⁵ electrical life cycles, 10⁷ mechanical life cycles) to manage external equipment.

  • Durable & Environmentally Resistant: Front IP65 protection (dust/water-jet resistant) suits harsh industrial environments; ABS housing, PC display window, and silicone rubber gaskets/keypad ensure long-term durability.

  • User-Centric Design: Multi-language menu supports global operations; "flow rate change display" provides real-time insights into flow fluctuations, critical for leak detection or process stability monitoring.

  • Compliant with Global Standards: Manufactured under ISO 9001 (quality) and ISO 14001 (environmental) requirements; CE, RoHS, and GOST R certified for reliability in international markets.

Technical Specifications

Category

Details

General

Compatible Sensors

2× FLS Hall-effect flow sensors (frequency output); 2× FLS F6.60 electromagnetic flowmeters

Frequency Input

0 – 1500 Hz per channel; Accuracy: ±0.5%

Display

4" full-graphic LCD; 3-color backlight (5-level adjustable timing); Update rate: 1 second

Protection Grade

Front IP65 (dust/water-jet resistant)

Materials

Housing: ABS; Display window: PC; Mounting gaskets/keypad: Silicone rubber

Operating Temperature

-20°C to 70°C (-4°F to 158°F); Storage: -30°C to 80°C (-22°F to 176°F)

Relative Humidity

0 – 95% (non-condensing)

Electrical

Power Supply

- Panel-mount (M9.03.P1)/Wall-mount (M9.03.W1): 12 – 24 VDC ±10% (regulated)- Wall-mount (M9.03.W2): 110 – 230 VAC

Sensor Power (Hall-effect)

5 VDC @

4-20mA Outputs (2)

Isolated, fully adjustable/reversible; Max loop impedance: 800Ω (24VDC), 250Ω (12VDC)

SSR Outputs (2)

Optically isolated; Max sink current: 50mA; Max pull-up voltage: 24VDC; Max pulses/min: 300; Hysteresis: user-selectable

Mechanical Relays (2)

SPDT contacts; Switching capacity: 5A/240VAC; Electrical life: 10⁵ cycles; Mechanical life: 10⁷ cycles; Max pulses/min: 60

Certifications

ISO 9001, ISO 14001, CE, RoHS, GOST R compliant
Applications
Widely suitable for dual-channel flow monitoring and control in:

  • Municipal water treatment systems (inlet/outlet flow tracking)

  • Industrial wastewater treatment and recycling (parallel pipeline monitoring)

  • Water distribution networks (leak detection via differential flow)

  • Filtration systems (pre-filter/post-filter flow comparison)

  • Swimming pools, spas, and aquariums (circulation flow monitoring)

  • Agricultural irrigation and fertigation (dual-line flow control)

  • Cooling water systems (equipment inlet/outlet flow management)

  • General manufacturing and chemical production (process flow oversight)
