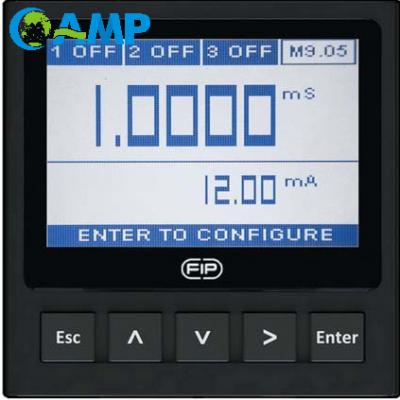

FLS M9.05 Conductivity Monitor With Multi-Color Backlight for Ultra-Long Distance Status Checking

Shanghai CAMP Environmental Protection Technology Co., Ltd.
1Yr
FLS M9.05 Conductivity Monitor With Multi-Color Backlight for Ultra-Long Distance Status Checking thumbnail-1
FLS M9.05 Conductivity Monitor With Multi-Color Backlight for Ultra-Long Distance Status Checking photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Origin:
china
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Origin china
The new FLS M9.05 is a powerful conductivity monitor with a wide range of applications, including ultrapure water processes. It features a 4-inch wide full-graphic display that clearly shows measured values and a wealth of other practical information. Moreover, with its multi-color bright backlight, the measurement status can be easily determined even from a very long distance. The guiding software ensures error-free and fast configuration of each parameter. Measured values can be displayed as resistivity values or TDS (Total Dissolved Solids) values according to customer needs. The cell constant is flexible, allowing the use of all types of bipolar conductivity cell probes. Two 4-20mA output lines can remotely transmit conductivity and temperature values to external devices. By properly combining digital outputs, customized control can be implemented for all processes that require control.
Applications

  • Water treatment and regeneration

  • Industrial wastewater treatment and recovery

  • Softener processes

  • Filtration systems

  • Desalination processes

  • Soft water production

  • Reverse osmosis/EDI treatment

  • Cooling water monitoring

  • Processing and manufacturing industries

  • Chemical production

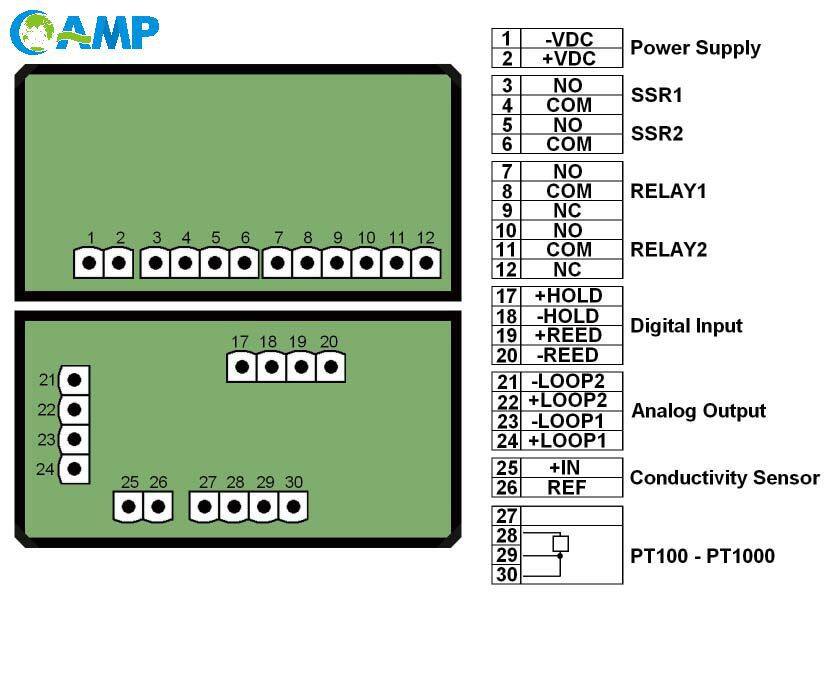

  • M9.05接线图.jpg

Key Features

  • Wide-screen full-graphic display

  • Multi-color backlight display

  • Onboard assistant

  • UPW (Ultrapure Water) temperature compensation

  • Freely configurable cell constant

  • Display of conductivity values, resistivity values, and TDS values

  • Analog output for remote temperature processing

  • Mechanical relays for controlling external equipment

  • Solid-state relays for programmable alarms

Technical DataMonitor - General

  • Associated sensors: FLS conductivity sensors and FLS temperature sensors

  • Materials:

    • Enclosure: ABS

    • Display window: PC

    • Panel and wall-mount gaskets: Silicone rubber

    • Keyboard: 5-button silicone rubber

  • Display:

    • LC full-graphic display

    • Backlight version: 3 colors

    • Backlight activation: User-adjustable 5-level timing

    • Update rate: 1 second

    • Housing: Front IP65 rating

    • Expected electrical service life (minimum operation): 10⁵ on/off switching cycles at 5A/240VAC

  • Conductivity input range: 0.055 - 200000μS

  • Maximum pulses per minute: 60

  • Hysteresis: User-selectable

  • Conductivity measurement accuracy: ±2.0% of reading

  • Temperature input range: -50 - 150°C (-58 - 302°F) (for Pt100 - Pt1000 sensors)

  • Temperature measurement resolution: 0.1°C/°F (for Pt1000); 0.5°C/°F (for Pt100)

Environment

  • Operating temperature: -20°C - +70°C (-4°F - 158°F)

  • Storage temperature: -30°C - +80°C (-22°F - 176°F)

  • Relative humidity: 0 - 95% (non-condensing)

Electrical

  • Power supply voltage: 12 - 24VDC ±10% (regulated)

  • 2 x current outputs:

    • 4-20mA, isolated, fully adjustable and reversible

    • Maximum loop impedance: 800Ω (at 24VDC) - 250Ω (at 12VDC)

  • 2 x solid-state relay outputs:

    • User-selectable functions: Minimum alarm, maximum alarm, window alarm, proportional pulse, timed pulse, off

    • Optically isolated, maximum leakage current of 50mA, maximum pull-up voltage of 24VDC

    • Maximum pulses per minute: 300

    • Hysteresis: User-selectable

  • 2 x relay outputs:

    • User-selectable functions: Minimum alarm, maximum alarm, window alarm, proportional pulse, timed pulse, off

    • Mechanical SPDT (Single Pole Double Throw) contacts

    • Expected mechanical service life (minimum operation): 10⁷ cycles

Standards and Certifications

  • Manufactured in accordance with ISO 9001 requirements

  • Manufactured in accordance with ISO 14001 requirements

  • CE certified

  • RoHS compliant

  • GOST R certified


Product Tags: wastewater treatment , FLS M9.05 Conductivity Monitor , ultrapure water process
