Type Electromagnetic Flow Meter

The FLS F111 Hot-Tap Paddle Wheel & Turbine Flow Sensor is a robust, high-performance device engineered for accurate flow measurement of liquids in high-pressure industrial, municipal, and agricultural applications. Its core advantage is the hot-tap installation design, which allows sensor insertion or removal without shutting down pipelines—critical for minimizing operational downtime in continuous-flow systems like water distribution or irrigation. It offers two measurement technologies: paddle wheel (for standard flow needs) and turbine (for more sensitive, low-flow detection), with optional bi-directional functionality to identify liquid flow direction (ideal for leak monitoring). Constructed from durable materials (AISI 304 stainless steel or brass) with ceramic shafts/bearings and chemical-resistant ECTFE/PVDF rotors, it delivers exceptional mechanical strength and longevity. Additionally, it supports both DC power and battery operation, and is compatible with most data loggers, making it versatile for remote or off-grid applications.

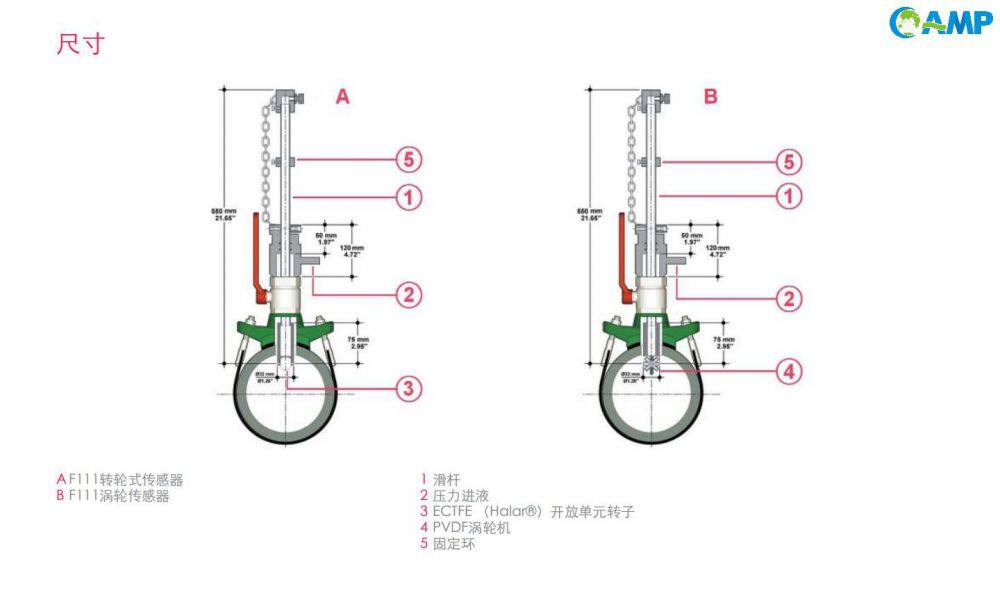

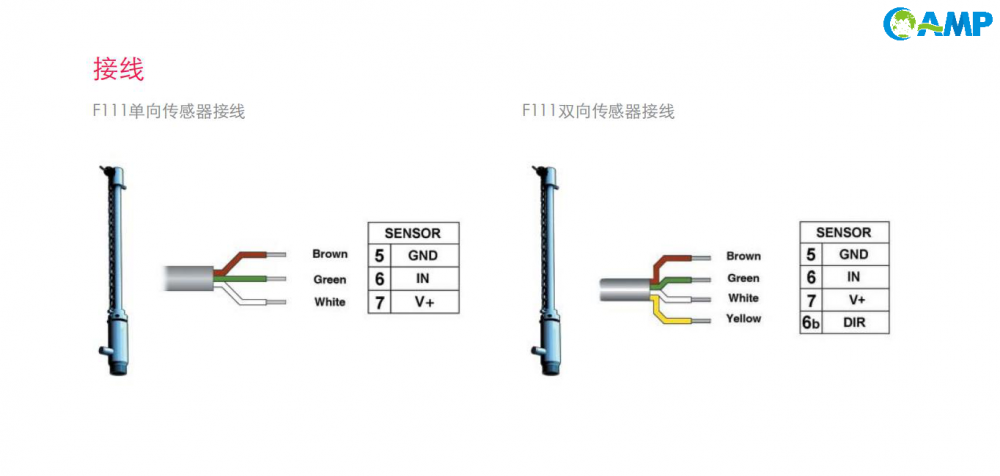

FIP F111热插拔式转轮和涡轮式流量传感接线图.pngFIP F111热插拔式转轮和涡轮式流量传感器尺寸图.jpg

Key Features

  • Dual Measurement Technologies:

    • Paddle wheel version (F111.H/C): Measures flows from 0.15 m/s (0.5 ft/s) upward, suitable for standard industrial/municipal use.

    • Turbine version (F111.HT/HT.BD): Detects flows as low as 0.08 m/s (0.26 ft/s) for sensitive applications; bi-directional variant (F111.HT.BD) identifies flow direction.

  • Hot-Tap Installation: Enables safe sensor access without pipeline shutdown, supported by standard 1¼” BSP process connections and 3/8” quick-connect pressure ports—ideal for high-pressure systems (up to 20 bar).

  • Durable & Chemical-Resistant Build:

    • Body: AISI 304 stainless steel (corrosion resistance) or brass (cost-effective); O-rings: EPDM (excellent sealing for water-based fluids).

    • Rotor/turbine: ECTFE (Halar®) or PVDF (chemical resistance); Shaft/bearings: Ceramic (Al₂O₃) for wear resistance and long service life.

  • Flexible Power & Compatibility:

    • Power options: 5-24 VDC (standard), 3-5 VDC, or 3.6V lithium battery (F111.C/HT.BD) for remote use.

    • Data integration: Compatible with most data loggers; NPN open-collector or CMOS outputs ensure seamless connection to controllers/PLCs.

  • Extreme Environmental Protection: IP68-rated enclosure (dust-tight, waterproof submersion) and wide operating temperature range (-20°C to 80°C) suit harsh outdoor or industrial environments.

  • High Measurement Precision: Lineararity of ±0.75% of full scale and repeatability of ±0.5% of full scale ensure reliable data for critical processes like leak detection or irrigation control.

Category

Details

General

Pipe Size Range

DN50 – DN900 (2” – 36”); custom sizes available on request

Linearity

±0.75% of full scale

Repeatability

±0.5% of full scale

Min. Reynolds Number

4500

Operating Pressure/Temp

20 bar (290 psi) @ 80°C (176°F)

Protection Grade

IP68

Wetted Materials

Body: AISI 304 SS/brass; Rotor: ECTFE (Halar®); Turbine: PVDF; Shaft/Bearings: Ceramic (Al₂O₃); Seals: EPDM

Connections

1¼” BSP process fitting; 3/8” quick-connect pressure port

Model-Specific Electricals

F111.H (Hall Paddle Wheel)

Flow range: 0.15–8 m/s; Power: 5-24 VDC; Current:

F111.C (Coil Paddle Wheel)

Flow range: 0.15–8 m/s; Power: 3-5 VDC/3.6V battery; Current:

F111.HT (Hall Turbine)

Flow range: 0.08–8 m/s; Power: 5-24 VDC; Current:

F111.HT.BD (Bi-Directional Turbine)

Flow range: 0.08–1.5 m/s; Power: 4-5 VDC; Current: 0.6mA @5VDC; Output: CMOS square wave (10 Hz/m/s); Cable: 8m (std), 100m (max)

Certifications

ISO 9001, ISO 14001, CE, RoHS, GOST R compliant
Applications
Widely suitable for liquid flow measurement in:

  • Municipal water distribution and wastewater treatment plants

  • Agricultural irrigation systems

  • Leak detection and pipeline monitoring networks

  • Groundwater regulation projects

  • Industrial filtration systems

  • Remote fluid monitoring (with battery-powered variants)
