Origin china
Product Positioning & Core Advantages
FLS M9.07 is a professional dual-parameter monitor integrating conductivity, temperature, and flow measurement, designed to meet multi-dimensional water quality and process monitoring needs in industrial scenarios. Its core strengths lie in:

  • A 4-inch wide full-graphic display with multi-color backlight (5-level user-adjustable timing activation), enabling clear visualization of measured values and practical information, even from a distance;

  • Guiding software for error-free and fast parameter configuration, plus support for multiple calibration types to match user requirements for conductivity and flow measurements;

  • Dedicated 4-20mA outputs for each measurement parameter, facilitating remote data transmission to external devices, and flexible digital output combinations for customized control of target processes.

Applicable Scenarios

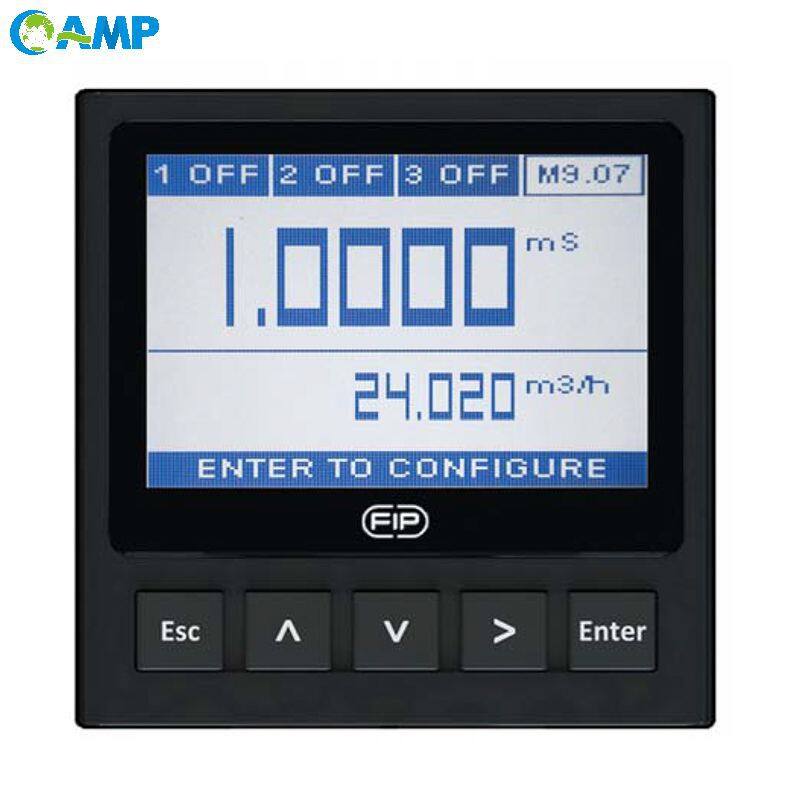

FLS M9-07.jpg

It is widely used in water treatment, industrial production, and process monitoring fields, including:

  • Water treatment and regeneration, industrial wastewater treatment and recovery

  • Softener processes, filtration systems, desalination processes

  • Soft water production, reverse osmosis treatment, cooling water monitoring

  • Processing and manufacturing industries, chemical production

Key Features

  1. Display & Operation: Wide-screen full-graphic display, multi-color backlight, and onboard assistant for intuitive operation and easy status identification.

  2. Dual-Parameter Measurement: Simultaneously monitors conductivity, temperature, and flow (frequency-based), covering comprehensive process indicators.

  3. Calibration & Configuration: Fast, error-proof calibration software supports diverse calibration types to ensure measurement accuracy.

  4. Output & Control: Equipped with mechanical relays (for external device control) and solid-state relays (for programmable alarms), plus multi-language menus for global usability.

Category

Details

Associated Sensors

FLS conductivity sensors; FLS Hall effect flow sensors or FLS F6.60 electromagnetic flowmeters; FLS temperature sensors (Pt100/Pt1000)

Materials

Enclosure (ABS); Display window (PC); Panel & wall-mount gaskets (silicone rubber); Keyboard (5-button silicone rubber)

Display Specifications

LC full-graphic display, 3-color backlight, 1-second update rate, front housing IP65 protection

Measurement Ranges & Accuracy

- Conductivity: 0.055-200000μS, accuracy ±2.0% of reading- Temperature: -50-150°C (-58-302°F), resolution 0.1°C/°F (Pt1000) / 0.5°C/°F (Pt100)- Flow (frequency): 0-1500Hz, accuracy 0.5%
Electrical Parameters

  • Power Supply: 12-24VDC ±10% (regulated); FLS Hall effect flow sensor power: 5VDC @

  • Current Outputs (2 channels): 4-20mA (isolated, fully adjustable/reversible); maximum loop impedance: 800Ω (24VDC) / 250Ω (12VDC).

  • Solid-State Relay (SSR) Outputs (2 channels):

    • Selectable functions: Minimum alarm, maximum alarm, window alarm, pulse output, proportional pulse, timed pulse, frequency output, off;

    • Optically isolated, 50mA maximum sink current, 24VDC maximum pull-up voltage; 300 pulses/min maximum, user-selectable hysteresis.

  • Mechanical Relay Outputs (2 channels):

    • Same functions as SSR outputs; mechanical SPDT contacts;

    • Expected mechanical life: 10⁷ cycles (minimum operation); electrical life: 10⁵ on/off cycles (5A/240VAC); 60 pulses/min maximum, user-selectable hysteresis.

Environmental Parameters

  • Operating temperature: -20°C to +70°C (-4°F to 158°F)

  • Storage temperature: -30°C to +80°C (-22°F to 176°F)

  • Relative humidity: 0-95% (non-condensing)

Standards & Certifications

  • Manufactured per ISO 9001 and ISO 14001 requirements

  • CE certified, RoHS compliant, GOST R certified


Product Tags: Dual-Parameter Monitor , Conductivity & Flow Monitor , 4-inch full-graphic display
