Product Description:
Overview:

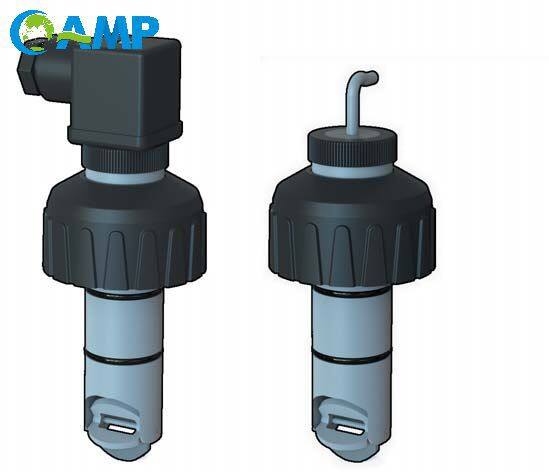

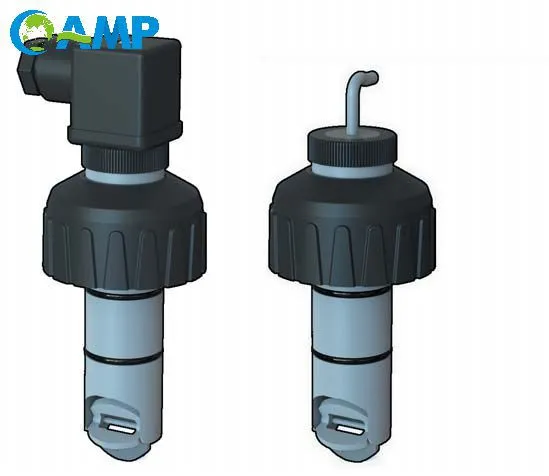

The FIP F3.00 Turbine Flow Sensor is a highly reliable and accurate device designed for flow measurement in water treatment, industrial applications, and other fluid systems. With a robust design, available in CPVC, PVDF, Brass, and Stainless Steel options, the sensor offers excellent durability and resistance to corrosive environments. The sensor is easy to install with its insertable system and is suitable for pipe sizes ranging from DN15 to DN600.
Key Features:
Versatile Material Options: The F3.00 is available with a choice of CPVC, PVDF, Brass, or Stainless Steel body, offering flexibility to suit a variety of industrial and water treatment applications.
Wide Flow Measurement Range: This sensor can measure flow rates from 0.15 m/s to 8 m/s, making it suitable for a wide range of flow conditions.
High Accuracy and Repeatability: The sensor provides high accuracy of ±0.75% full scale and excellent repeatability of ±0.5%, ensuring reliable measurements over time.
IP65 and IP68 Ratings: The F3.00 sensor comes with IP65 or IP68 protection, ensuring it is dust-tight and can withstand submersion in water for use in harsh environments.
Wide Temperature and Pressure Range: It can operate in temperatures ranging from 0°C to 120°C (depending on material type) and withstand pressures up to 25 bar (363 psi), making it ideal for industrial applications.
Easy Integration: The sensor provides a frequency or pulse output, making it compatible with a variety of PLCs and monitoring systems for easy integration into existing setups.
Applications:
Water treatment and regeneration
Industrial wastewater treatment and recycling
Textile dyeing and finishing
Water distribution systems
Manufacturing and processing industries
Filtration systems
Chemical production and cooling systems
Swimming pool flow monitoring
Why Choose the FIP F3.00 Turbine Flow Sensor?
The FIP F3.00 is designed for high-precision flow measurement in demanding applications, including water treatment and industrial processes. With its wide range of material options and high durability, this sensor ensures long-lasting, reliable performance. Its easy-to-install insertable system and high accuracy make it a cost-effective solution for precise flow measurement and monitoring.
Order Now: Improve your flow monitoring systems with the FIP F3.00 Turbine Flow Sensor.
FAQ:
What is the maximum temperature the FIP F3.00 can withstand?
The FIP F3.00 can withstand temperatures up to 120°C (248°F) depending on the material choice (CPVC, PVDF, Brass, or Stainless Steel).

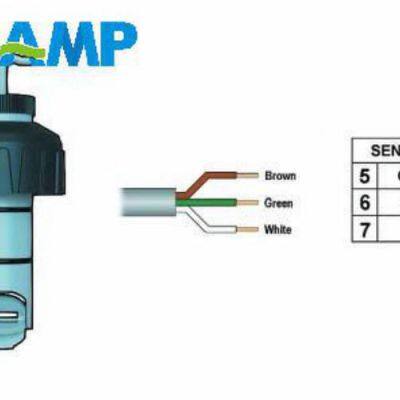

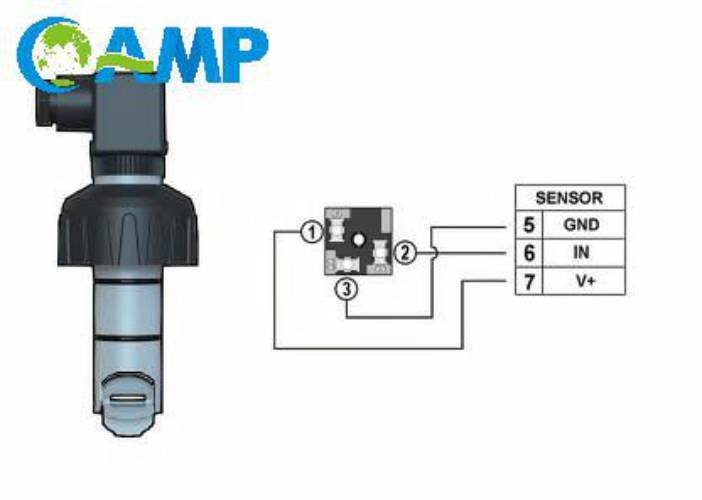

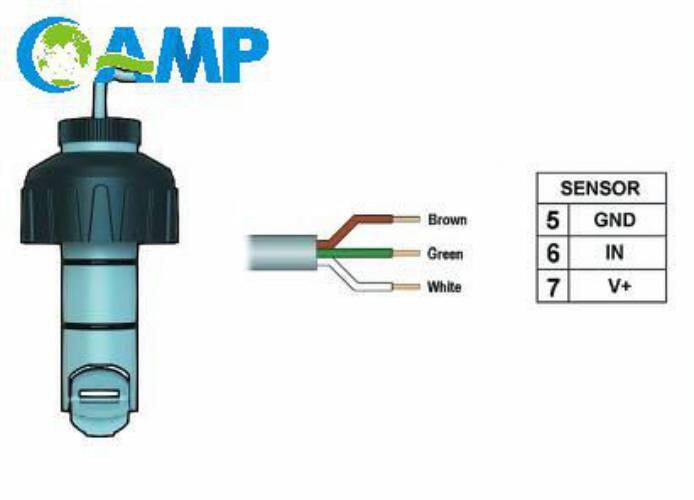

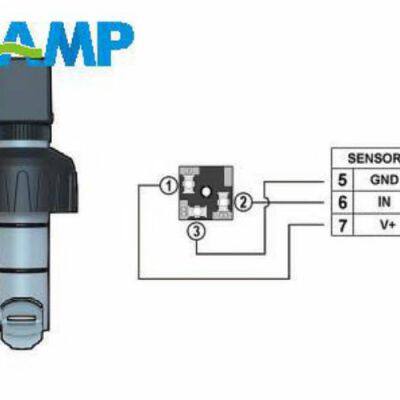

What is the output of this flow sensor?
The FIP F3.00 provides a frequency or pulse output, suitable for integration with most PLC systems and industrial equipment.
What is the maximum pressure for this sensor?
The sensor can withstand up to 25 bar (363 psi) pressure for Brass and Stainless Steel models, and 10 bar (145 psi) for CPVC and PVDF.
Can the FIP F3.00 sensor be used for corrosive liquids?
Yes, the sensor is designed with corrosion-resistant materials such as CPVC, PVDF, Brass, and Stainless Steel, making it ideal for corrosive environments.
How do I install the FIP F3.00?
The FIP F3.00 sensor is designed for easy insertion into pipelines and can be used with pipe sizes ranging from DN15 to DN600.
What is the accuracy of this sensor?
The FIP F3.00 offers ±0.75% accuracy and ±0.5% repeatability, ensuring high precision in flow measurement.
Is the FIP F3.00 suitable for outdoor use?
Yes, with its IP65 or IP68 rating, the sensor is protected against dust and water, making it suitable for outdoor and industrial environments.
What applications is the FIP F3.00 best suited for?
The FIP F3.00 is ideal for applications in water treatment, industrial wastewater management, cooling systems, filtration, chemical production, and more.
