Home > Industrial Equipment & Components > Welding Equipment > Plasma Welder > EVO20 CUT80 SC L2S62 3-Phase Plasma Cutter

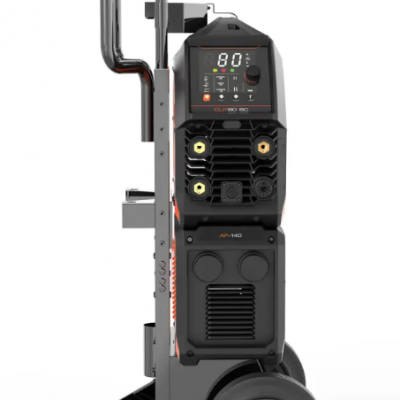

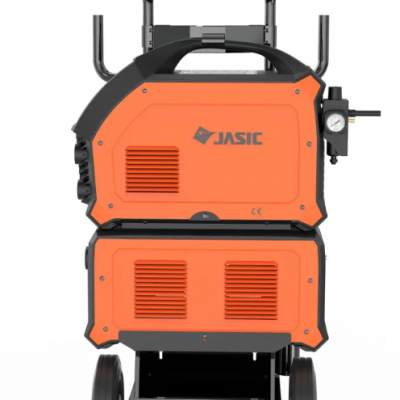

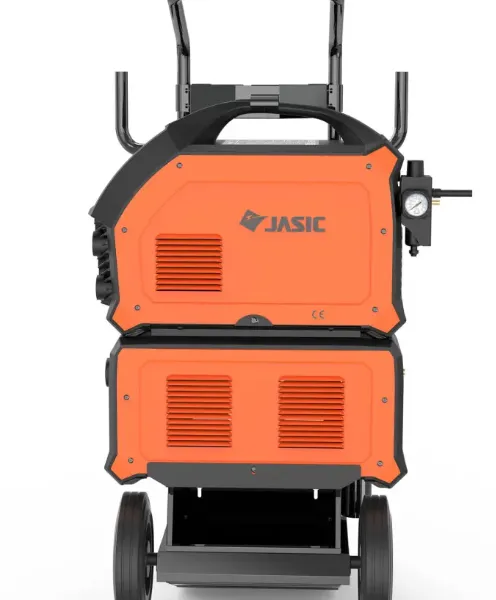

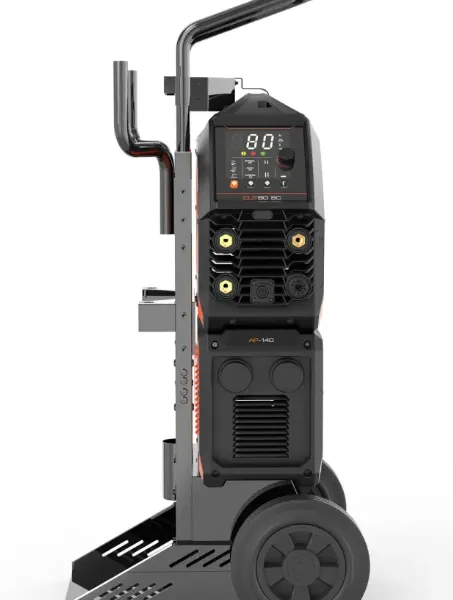

EVO20 CUT80 SC L2S62 3-Phase Plasma Cutter
Negotiable
MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Product Certifications:
ISO9001, ISO9004, ISO14000
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Suzhou, Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
EVO20 CUT80 SC L2S62 3-Phase Plasma Cutter
JASIC EVO20 CUT80 SC is a 3-phase CUT/MMA powerhouse with an air compressor module for light industrial applications, featuring SurePlasma technology, non-HF ignition, and modular design.
3-phase CUT/MMA powerhouses excel in diverse job settings
High-performance cutting: 20mm quality/35mm severance
SurePlasma technology for consistent arc ignition performance with different torch lengths
Mesh cutting function
(Power source) Compatible with matching air compressor module and trolley
(Power source) Compatible with third-party air compressor
(Air compressor) Capable of functioning as standalone air supply
CUT80 SC(L2S62) Input Power Source 3ph, AC400V±15%, 50Hz CUT Rated Input Current 19 A Power Capacity 12.5 kVA Output Current Range 20～80 A Open Circuit Voltage 325 V Duty Cycle 40% Good Cutting (Carbon Steel) 20mm@400mm/min Severance (Carbon Steel) 35mm MMA Rated Input Current 18 A Power Capacity 12 kVA Output Current Range 50～280 A Arc Force Range 0～60 A Hot Start Current 40 A Open Circuit Voltage 77 V Duty Cycle 25% Power Factor ≥0.9 Efficiency (at max current) ≥85% Idle Power Consumption 11 W Insulation Class H Protection Class IP23S Dimensions (L×W×H) 626×230×416 mm Net Weight 22 kg Air Compressor AP-140 (A0S2) Input Power Source 3ph, AC400V±15%, 50 Hz Rated Input Current 2.7 A Power Capacity 1400 kVA Air Flow Rate 145 L/min Air Pressure 0.4 MPa Insulation Class H Protection Class IP23S Dimensions (L×W×H) 547×230×318 mm Net Weight 20 kg
