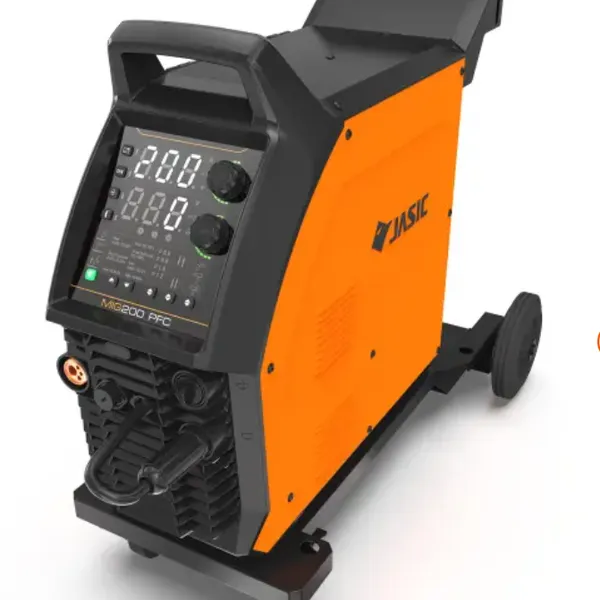

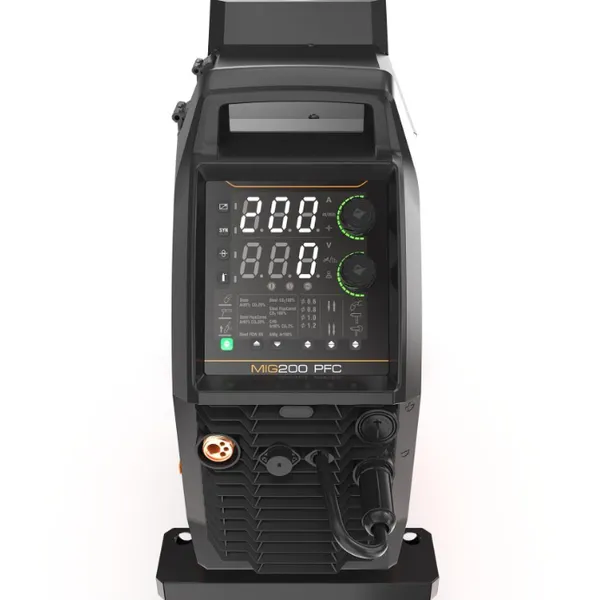

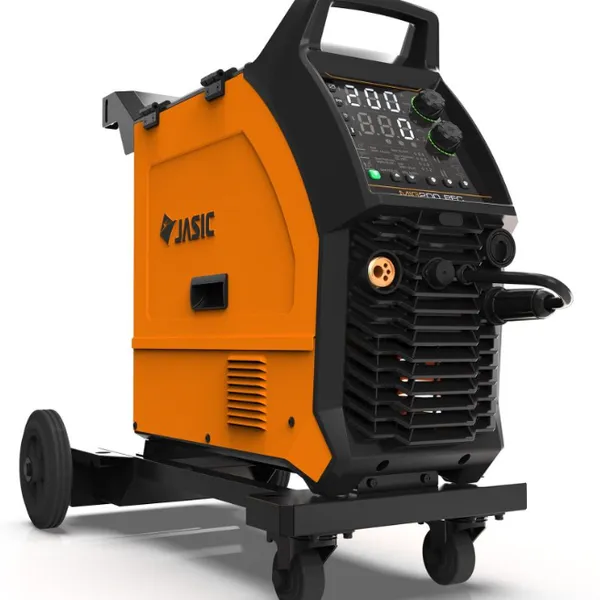

EVO20 MIG 200 PFC N2S52
JASIC EVO20 MIG 200 PFC allows you to weld any metal with high efficiency.
· MIG, MMA & TIG capabilities
· HD digital panel with ClearVision tech
· Easy and quality welding with Synergic MIG
· Effortless arc ignition & high consistency by Smart Lift TIG
· Consistent and efficient MIG spot welding performance
· Break free from distance constraints with handheld pedal remote control
· Improve overall energy efficiency with power factor correction (PFC)
· Trolley with cylinder holder provides mobility and stability
| Input power | AC95～265 V, 50/60 Hz | ||
| 115 V | 230 V | ||
| Open circuit voltage | 68 V | ||
| MIG | Rated input current | 38.1 A | 32.8 A |
| Rated input power capacity | 4.4 kVA | 7.5 kVA | |
| Output current range | 30～140 A | 30～200 A | |
| Rated duty cycle | 30% | ||
| Wire feed speed | 2～12 m/min | 2～16 m/min | |
| Wire spool size | D300 | ||
| MMA | Rated input current | 28.3 A | 24.8 A |
| Rated input power capacity | 3.2 kVA | 5.7 kVA | |
| Output current range | 20～110 A | 20～180 A | |
| Rated duty cycle | 30% | ||
| TIG | Rated input current | 24.2 A | 19.3 A |
| Rated input power capacity | 2.8 kVA | 4.4 kVA | |
| Output current range | 5～140 A | 5～200 A | |
| Rated duty cycle | 30% | ||
| Efficiency | ＞80% | ||
| Power factor | 0.99 | ||
| Idle state power | ＜50 W | ||
| Protection class | IP23S | ||
| Insulation class | H | ||
| Dimensions L×W×H | 920×480×755 mm | ||
| Net weight | 41.9 kg | ||
