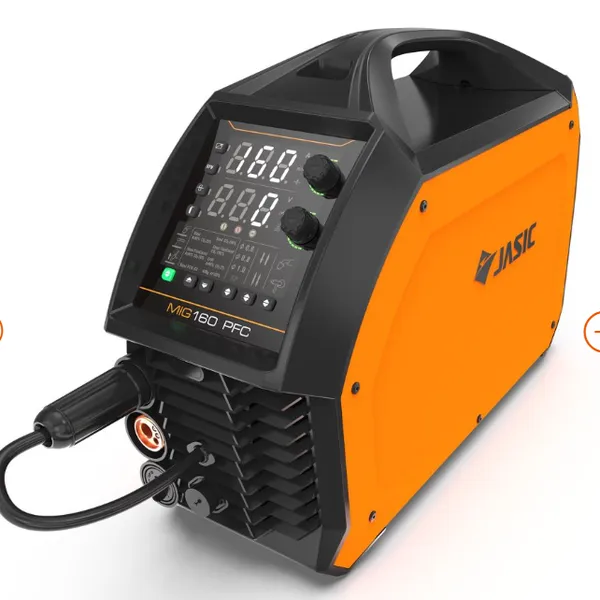

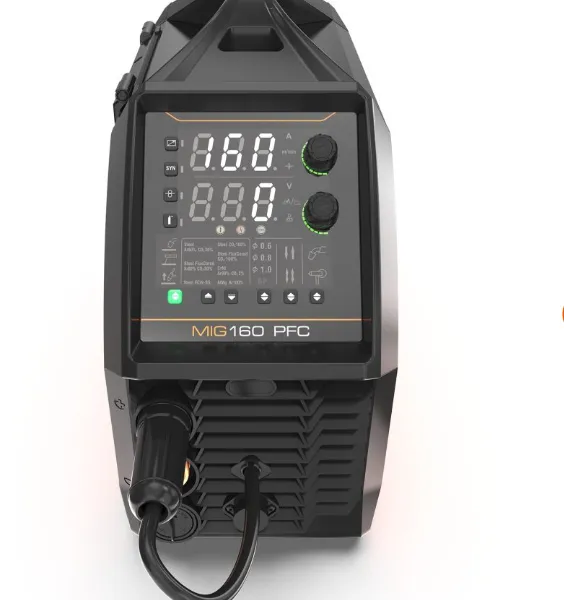

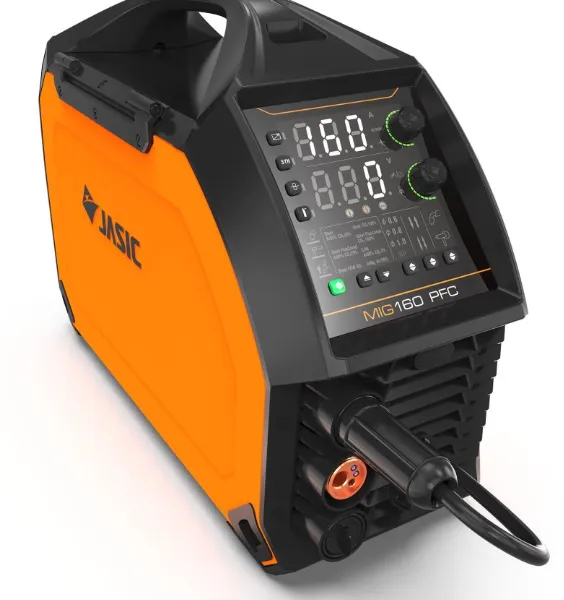

MIG Welder EVO20 MIG 160 PFC N2S22
Negotiable
MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Product Certifications:
ISO9001, ISO9004, ISO14000
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Suzhou, Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
EVO20 MIG 160 PFC N2S22
JASIC EVO20 MIG 160 PFC allows you to weld any metal with high efficiency.
· MIG, MMA & TIG capabilities
· HD digital panel with ClearVision tech
· Easy and quality welding with Synergic MIG
· Effortless arc ignition & high consistency by Smart Lift TIG
· Consistent and efficient MIG spot welding performance
· Break free from distance constraints with handheld pedal remote control
· Improve overall energy efficiency with power factor correction (PFC)
| Input power | AC95~265 V, 50/60 Hz | ||
| AC115 V | AC230 V | ||
| Open circuit voltage | 67 V | ||
| MIG | Rated input current | 37.5 A | 33 A |
| Rated input power capacity | 2.98 kVA | 4.22 kVA | |
| Output current range | 30～120 A | 30～160 A | |
| Rated duty cycle | 30% | ||
| Wire feed speed | 2～11 m/min | 2～14 m/min | |
| Wire spool size | D200 | ||
