Help CenterEVO20 TIG 200 W2S22
Negotiable
MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Product Certifications:
ISO9001, ISO9004, ISO14000
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Suzhou, Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products

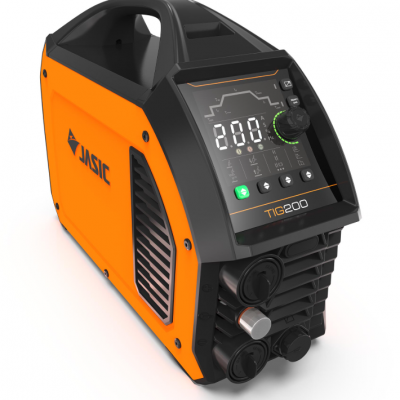

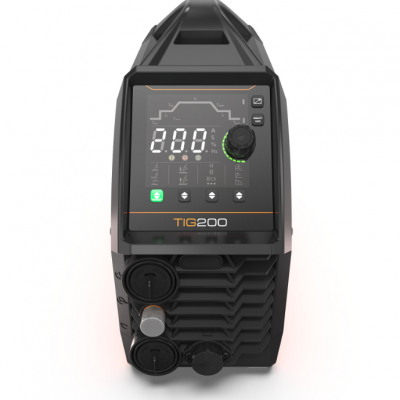

JASIC EVO20 TIG 200 allows you to weld thin metal with precision and ease.
· Effortlessly weld with TIG capabilities
· HD digital panel with ClearVision tech
· Effortless arc ignition & high consistency by some useful technologies such as Dash-Arc, Smart Lift TIG, etc.
· Reduce hand strain with foot pedal remote contro
| TIG200 W2S22 | |||
| Input power | AC230 V ±15%, 50/60 Hz | ||
| Open circuit voltage | 62 V | ||
| TIG | Rated input current | 27 A | |
| Rated input power capacity | 6.2 kVA | ||
| Output current range | 5～200 A | ||
| Rated duty cycle | 25% | ||
| MMA | Rated input current | 29 A | |
| Rated input power capacity | 6.7 kVA | ||
| Output current range | 10～160 A | ||
| Rated duty cycle | 20% | ||
| Efficiency | 86% | ||
| Power factor | 0.68 | ||
| Idle state power | MMA: 25 W TIG: 2.4 W | ||
| Protection class | IP23S | ||
| Insulation class | H | ||
| Dimensions L×W×H | 413×150×311 mm | ||
| Net weight | 7.92 kg | ||
