EVO20 TIG 200 PACDC LCD E2S13

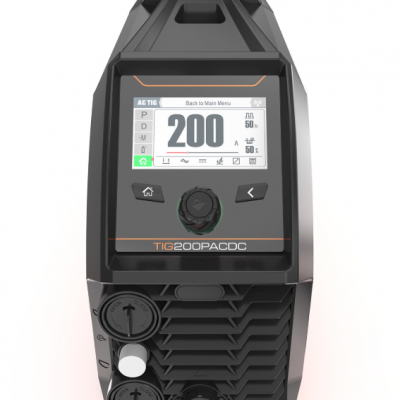

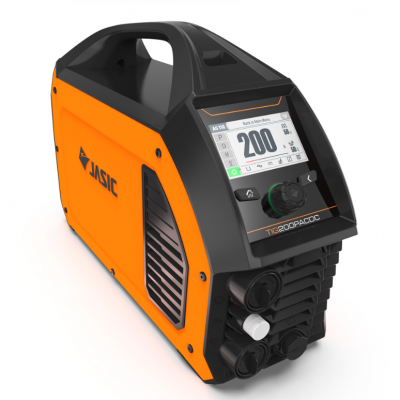

EVO20 TIG 200 PACDC LCD E2S13 photo-1
EVO20 TIG 200 PACDC LCD E2S13 photo-2
EVO20 TIG 200 PACDC LCD E2S13 photo-3
Negotiable MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Product Certifications:
ISO9001, ISO9004, ISO14000
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Suzhou, Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
EVO20 TIG 200 PACDC LCD E2S13

JASIC EVO20 TIG 200 PACDC LCD allows you to weld any metal with precision and ease.

· Effortlessly weld any metal with HF ACDC TIG capabilities and especially excel in aluminum welding
· Get clean welds by adjusting mixed arc settings
· Minimize distortion by pulse TIG welding
· User-centric Color LCD control panel
· Effortless arc ignition & high consistency by some useful technologies such as Dash-Arc, Smart Lift TIG, etc.
· Reduce hand strain with foot pedal remote control

ARC160 PFC Z2S22
Input powerAC230 V ±15%, 50/60 Hz
Open circuit voltage60 V
TIGRated input current25 A
Rated input power capacity6.0 kVA
Output current rangeDC: 5~200 A     AC: 20~200 A
Rated duty cycle25%
MMARated input current27 A
Rated input power capacity7.0 kVA
Output current range10~160 A
Rated duty cycle20%
Efficiency80%
Power factor0.75
Idle state power<50 W
Protection classIP23S
Insulation classH
Dimensions L×W×H490×165×341 mm
Net weight11.7 kg
