Home > Industrial Equipment & Components > Welding Equipment > MIG Welder > MIG Welder EVO20 MIG 250 PFC N2SB2

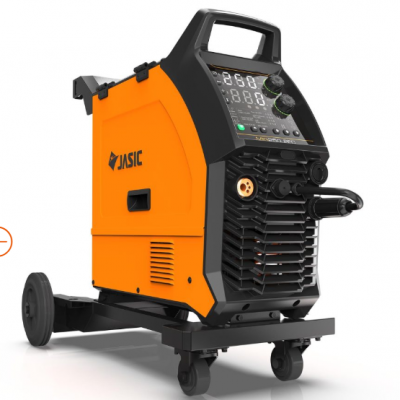

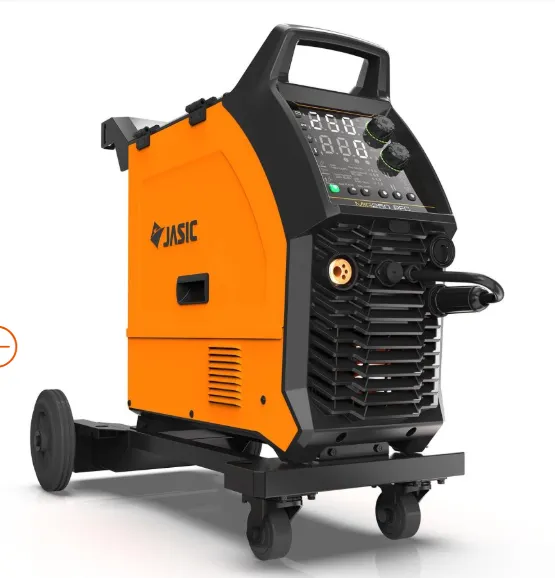

MIG Welder EVO20 MIG 250 PFC N2SB2
Negotiable
MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Product Certifications:
ISO9001, ISO9004, ISO14000
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Suzhou, Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
EVO20 MIG 250 PFC N2SB2
JASIC EVO20 MIG 250 PFC allows you to weld any metal with high efficiency.
· MIG, MMA & TIG capabilities

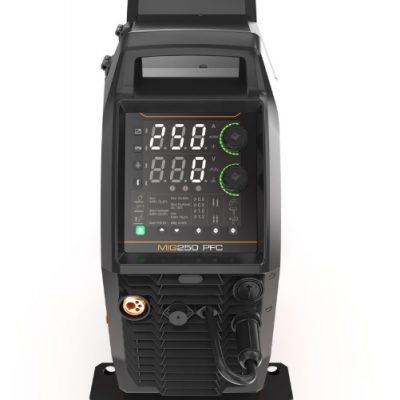

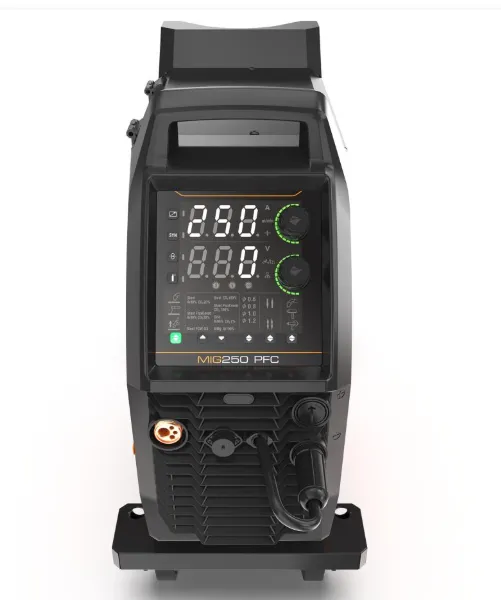

· HD digital panel with ClearVision tech
· Easy and quality welding with Synergic MIG
· Effortless arc ignition & high consistency by Smart Lift TIG
· Consistent and efficient MIG spot welding performance
· Break free from distance constraints with handheld pedal remote control
· Improve overall energy efficiency with power factor correction (PFC)
· Trolley with cylinder holder provides mobility and stability
| Input power | AC95～265 V, 50/60 Hz | ||
| 115 V | 230 V | ||
| Open circuit voltage | 70 V | ||
| MIG | Rated input current | 53.2 A | 44.9 A |
| Rated input power capacity | 6.1 kVA | 10.3 kVA | |
| Output current range | 30～160 A | 30～250 A | |
| Rated duty cycle | 30% | ||
| Wire feed speed | 2～14 m/min | 2～18 m/min | |
| Wire spool size | D300 | ||
| MMA | Rated input current | 33 A | 32.2 A |
| Rated input power capacity | 3.8 kVA | 6.9 kVA | |
| Output current range | 20～125 A | 20～220 A | |
| Rated duty cycle | 30% | ||
| TIG | Rated input current | 29.1 A | 26.5 A |
| Rated input power capacity | 3.3 kVA | 6.1 kVA | |
| Output current range | 5～160 A | 5～250 A | |
| Rated duty cycle | 30% | ||
| Efficiency | ＞80% | ||
| Power factor | 0.99 | ||
| Idle state power | ＜50 W | ||
| Protection class | IP23S | ||
| Insulation class | H | ||
| Dimensions L×W×H | 920×480×755 mm | ||
| Net weight | 41.9 kg | ||
