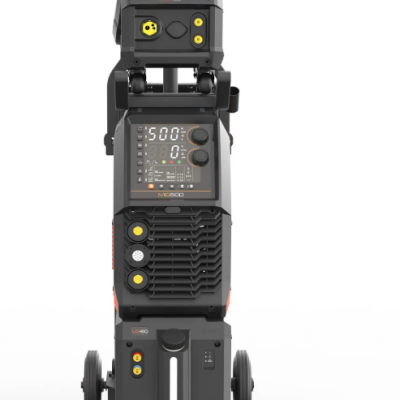

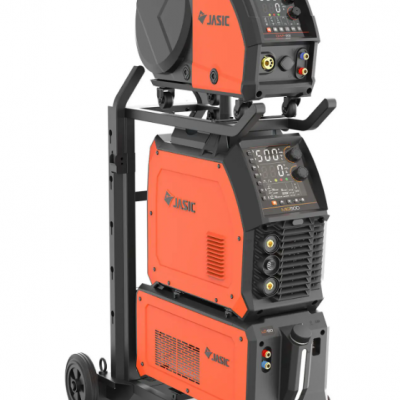

EVO20 MIG500 N2SF2 3-Phase MIG Welder

JASIC EVO20 MIG500 is a robust 3-phase welder with advanced MIG arc control and a separate dual-drive wire feeder for light industrial applications.

• DSP + ARM dual microprocessors for real-time arc regulation and precision

• Refined droplet transfer with precise waveform control for cleaner welds

• Enhanced arc starting with 60% higher success rate and faster stabilization

• Anti-Ball Formation Technology prevents wire tip balling for reliable re-ignition

• Modular design with power source integration for wire feeder, water cooler, toolbox module and utility trolley

• Flexible remote control ecosystem including digital torch, wireless helmet remote, mobile app, and handheld remote

•

• MIG500 (N2SF2)
  Input Voltage		3ph, AC400V±15% 50/60 Hz
  MIG	Rated Input Current	33.7 A
  	Power Capacity	23 kVA
  	Output Current Range	30～500 A
  	Output Voltage Range	10～48 V
  	Wire Feed Speed Range	2～24 m/min
  	Open Circuit Voltage	82 V
  	Duty Cycle	40%
  TIG	Rated Input Current	27 A
  	Power Capacity	18.5 kVA
  	Open Circuit Voltage	82 V
  	Output Current Range	20～500 A
  	Duty Cycle	40%
  MMA	Rated Input Current	34.4 A
  	Power Capacity	23.5 kVA
  	Output Current Range	20～500 A
  	Arc Force Range	0～200 A
  	Hot Start Range	0～200 A
  	Open Circuit Voltage	82 V
  	Duty Cycle	40%
  Power Factor		0.94
  Efficiency (at max current)		89%
  Idle Power Consumption		30 W
  Insulation Class		H
  Protection Class		IP23S
  Dimensions (L×W×H)		657*278*511 mm
  Net Weight		29.8 kg

• Wire Feeder DWF-22 (F0S22)
  Rated Voltage	DC 24V
  Rated Current	3.5A
  Wire Feed Speed	2~24 m/min
  Wire Feed Mechanism	4-roll
  Diameter of Feed Rolls	37.45 mm
  Wire Spool Diameter	300 mm
  Protection Class	IP2X
  Dimensions (L×W×H)	700 × 233 × 462 mm
  Net Weight	17 kg

• Water Cooler LC-60 (C0S3)
  Input Power Source	1 ph AC400V±15% 50/60Hz
  Rated Input Power	140 W
  Water Tank Volume	6.5 L
  Maximum Pressure	0.42 MPa
  Maximum Flow	5 L/min
  Rated Cooling Power	1.5 KW (1L/min)
  Protection Class	IP23S
  Coolant	Industrial distilled water, antifreeze
  Operating Ambient Temperature	Industrial distilled water: 7~60°C, Antifreeze: -20~60°C
  Storage Temperature Range	-20~60 °C
  Noise	<70 db
  Dimensions (L×W×H)	663×265×303 mm
  Net Weight	15 kg
