MIG Welder EVO20 MIG 250 N2S82
Negotiable
MOQ: 100 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Product Certifications:
ISO9001, ISO9004, ISO14000
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Suzhou, Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MIG Welder EVO20 MIG 250 PFC N2SA2NegotiableMOQ: 10 Units -
MIG Welder EVO20 MIG 250 PFC N2SB2NegotiableMOQ: 10 Units
-
EVO20 MIG350C N2SD2 3-Phase Compact MIG WelderNegotiableMOQ: 10 Units
-
EVO20 MIG350 N2SE2 3-Phase MIG WelderNegotiableMOQ: 10 Units
-
EVO20 MIG500 N2SF2 3-Phase MIG WelderNegotiableMOQ: 10 Units

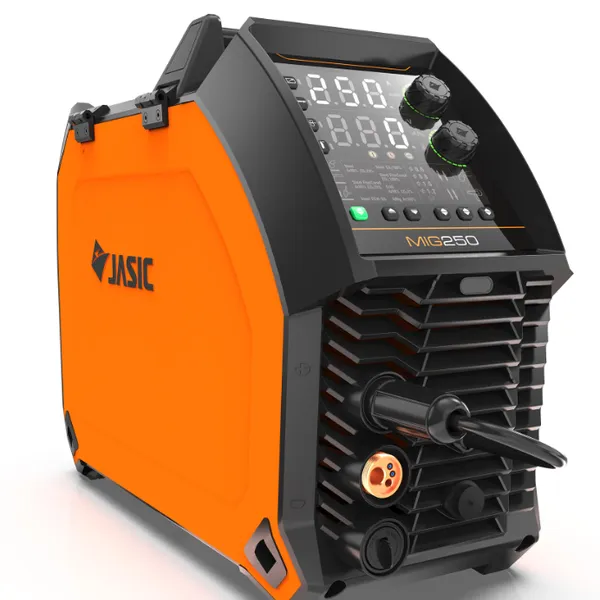

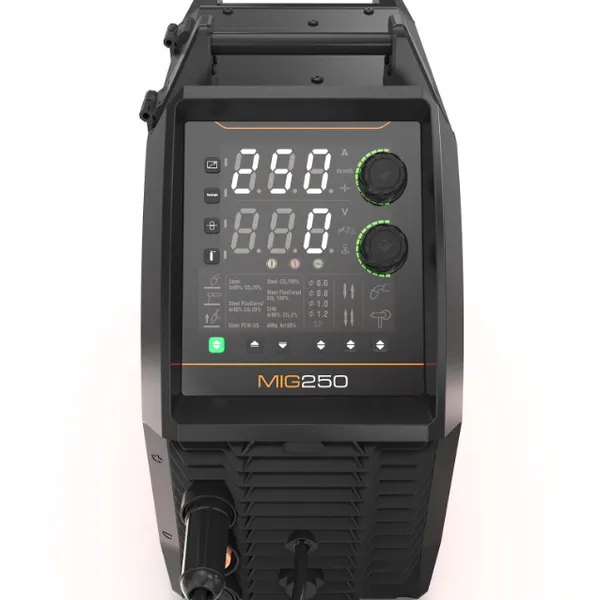

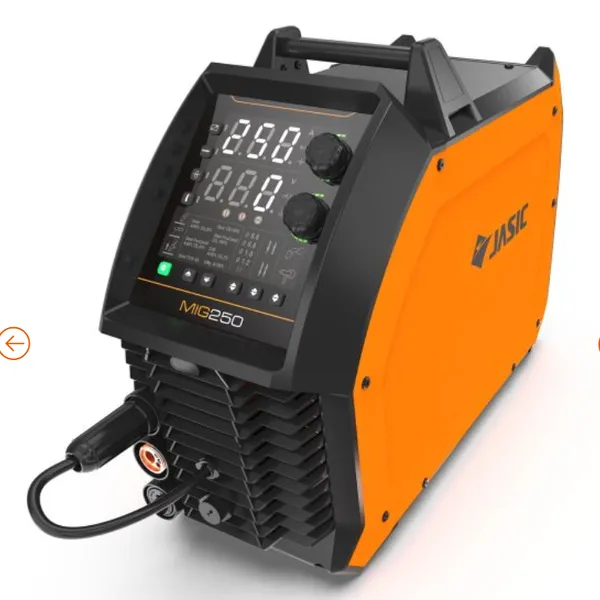

EVO20 MIG 250 N2S82
JASIC EVO20 MIG 250 allows you to weld any metal with high efficiency.
· MIG, MMA & TIG capabilities
· HD digital panel with ClearVision tech
· Easy and quality welding with Synergic MIG
· Effortless arc ignition & high consistency by Smart Lift TIG
· Consistent and efficient MIG spot welding performance
· Break free from distance constraints with handheld pedal remote control
| MIG250 N2S82 | |||
| Input power | AC230 V ±15%, 50/60 Hz | ||
| Open circuit voltage | 60 V | ||
| MIG | Rated input current | 46.3 A | |
| Rated input power capacity | 10.51 kVA | ||
| Output current range | 30～250 A | ||
| Rated duty cycle | 30% | ||
| Wire feed speed | 2~18 m/min | ||
| Wire spool size | D300 | ||
| MMA | Rated input current | 41.3 A | |
| Rated input power capacity | 10.16 kVA | ||
| Output current range | 20～220 A | ||
| Rated duty cycle | 30% | ||
| TIG | Rated input current | 33.5 A | |
| Rated input power capacity | 9.08 kVA | ||
| Output current range | 5～250 A | ||
| Rated duty cycle | 30% | ||
| Efficiency | 85.70% | ||
| Power factor | 0.73 | ||
| Idle state power | ＜50 W | ||
| Protection class | IP23S | ||
| Insulation class | H | ||
| Dimensions L×W×H | 700×280×511 mm | ||
| Net weight | 23.5 kg | ||
