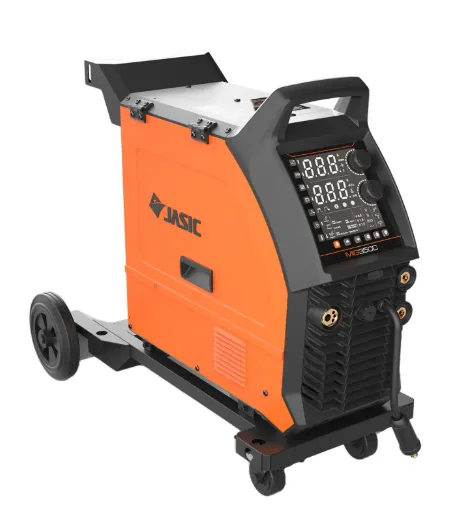

EVO20 MIG350C N2SD2 3-Phase Compact MIG Welder
Negotiable
MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Product Certifications:
ISO9001, ISO9004, ISO14000
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Suzhou, Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
EVO20 MIG350C N2SD2 3-Phase Compact MIG Welder
JASIC EVO20 MIG350C is a compact 3-phase welder with advanced MIG arc control and integrated dual-drive wire feeder for light industrial applications.
DSP + ARM dual microprocessors for real-time arc regulation and precision
Refined droplet transfer with precise waveform control for cleaner welds
Enhanced arc starting with 60% higher success rate and faster stabilization
Anti-Ball Formation Technology prevents wire tip balling for reliable re-ignition
Integrated dual-drive wire feeder ensures stable, consistent weld quality
Flexible remote control ecosystem including digital torch, wireless helmet remote, mobile app, and handheld remote
MIG350C (N2SD2) Input Power Source 3ph, AC400V±15% 50/60 Hz MIG Rated Input Current 19 A Power Capacity 13.1 kVA Output Current Range 30～350 A Output Voltage Range 10～40 V Wire Feed Speed Range 2.0～24.0 m/min Open Circuit Voltage 76 V Duty Cycle 40% TIG Rated Input Current 15 A Power Capacity 10.3 kVA Open Circuit Voltage 76 V Output Current Range 20～350 A Duty Cycle 40% MMA Rated Input Current 20.4 A Power Capacity 14.1 kVA Output Current Range 20～350 A Arc Force Range 0～100 A Hot Start Range 0～200 A Open Circuit Voltage 76 V Duty Cycle 40% Power Factor 0.94 Efficiency (at max current) 89% Idle Power Consumption 30 W Insulation Class H Protection Class IP23S Dimensions (L×W×H) 644*977*753 mm (with trolley) Net Weight 45.1 kg
