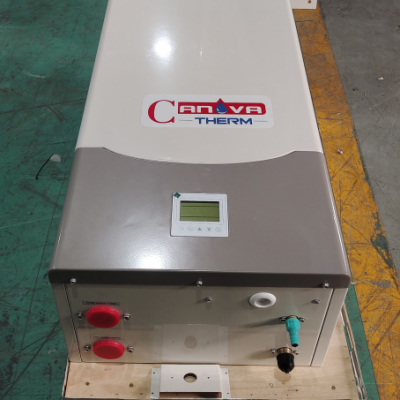

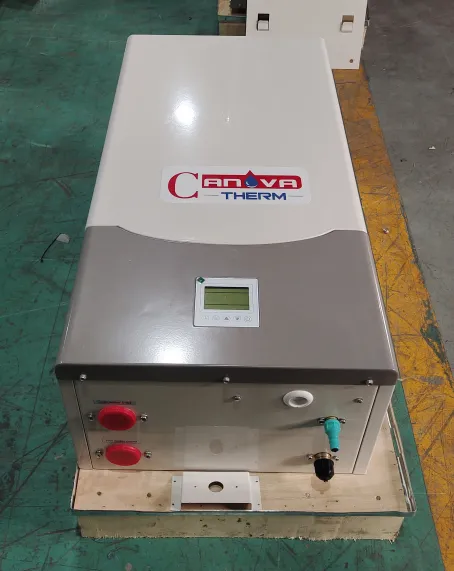

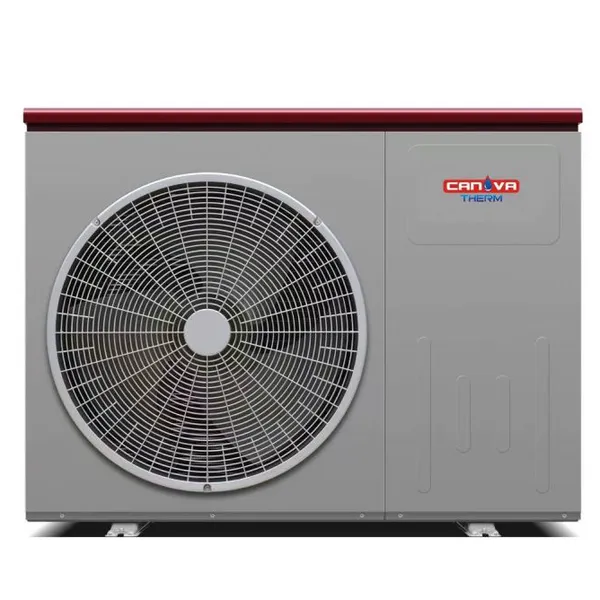

R32 12.6KW Split Full DC Inverter Heat Pump System A+++

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Certification:

CE, ISO9001, CCC, CB, ROHS, Other, TUV

Application:

Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Heat Source:

Air-source

Guangzhou Canova Heating & Refrigeration Equipment Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou/Shenzhen

Delivery Detail:

15 days

Certification CE, ISO9001, CCC, CB, ROHS, Other, TUV

Application Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Heat Source Air-source

Energy Efficiency Grade One

Heat Temperature 50-70°C

Work Environment Low-temperature Heat Pump

Heating Type Multi-power Heat

Refrigerant R32

ERP A+++

Water outlet temp 60°C

Certificate CE, TUV, CCC

Power supply 220V~230V/1PH

Ambient temp -35~45°C

Compressor Panasonic EVI DC Inverter

Function Heating+Cooling+Hot water

Transport Package Plywood case

Specification 12.6KW

Trademark Canova

Origin Guangzhou, China

Model			KFV240-BS	KFV480-BS	KFV480-BS/3	KFV640-BS
Max Heating Capacity		KW	12.6	23	23.2	28.5
Heating Capacity Range		KW	4.2~12.6	8~23	8.1~23.2	10~28.5
Heating (A7/W35)	Capacity	KW	10.5	19	19.3	25
	Input Power	KW	2.28	4.04	4.02	5.32
	Current	A	10.9	19.3	7.2	9.5
	COP		4.6	4.7	4.8	4.7
Heating (A7/W45)	Capacity	KW	10.3	18.2	18.6	24.3
	Input Power	KW	2.63	4.63	4.72	6.15
	Current	A	12.6	22.2	8.4	11.0
	COP		3.92	3.93	3.94	3.95
Cooling (A35/W7)	Capacity	KW	7.8	15.2	15.5	20.5
	Input Power	KW	2.68	5.21	5.22	6.95
	Current	A	12.8	24.9	9.3	12.4
	EER		2.91	2.92	2.97	2.95
Power Supply			220V~230V/1PH		380V~415V/3PH
Frequency Range		Hz	30-85	30-85	30-85	30-85
ERP (35℃)			A+++	A+++	A+++	A+++
ERP (55℃)			A++	A++	A++	A++
Heating output water temp		℃	25~60
Cooling output water temp		℃	5~20
Refrigerant			R32 / R410A
Controller			LCD Wire Controller
Compressor	Brand		Panasonic
Compressor	Type		DC Inverter Twin Rotary
Fan motor	Type		DC Inverter
Fan motor	PC		1	2	2	2
Evaporator	Type		Hydrophilic Aluminum Fin Heat Exchanger
Water side heat exhanger	Brand		SWEP
	Type		Plate Heat Exchanger
	Pressur Drop	kPa	15	25	25	30
Throttle unit			Electronic Expantion Valve
Water pump (Built-in)	Brand		Grundfos
	Type		DC Inverter
	Head	m	8	8	8	10
Ambient Temp range		℃	-30~45
Electric heater (Built- in)		Kw	2	3	3	3
Expansion tank (Built- in)		L	3	5	5	5
Water flow		m3/h	1.8	3.3	3.3	4.3
Pipe size			DN25	DN32	DN32	DN32
Noise	Indoor/outdoor	dB(A)	36/54	38/57	38/57	40/61
Dimension	Indoor	mm	50035715	50035715	50035715	50035715
Dimension	Outdoor	mm	960370810	9403701360	9403701360	10603831562
Weight	Indoor/outdoor	kg	36/69	39/105	39/105	44/155
