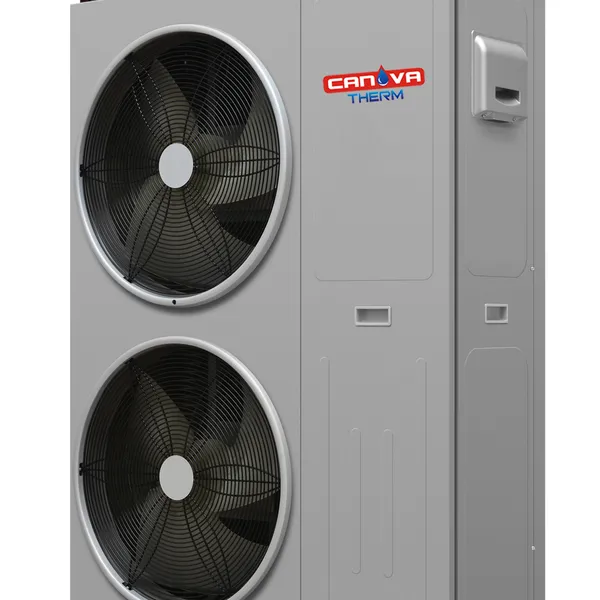

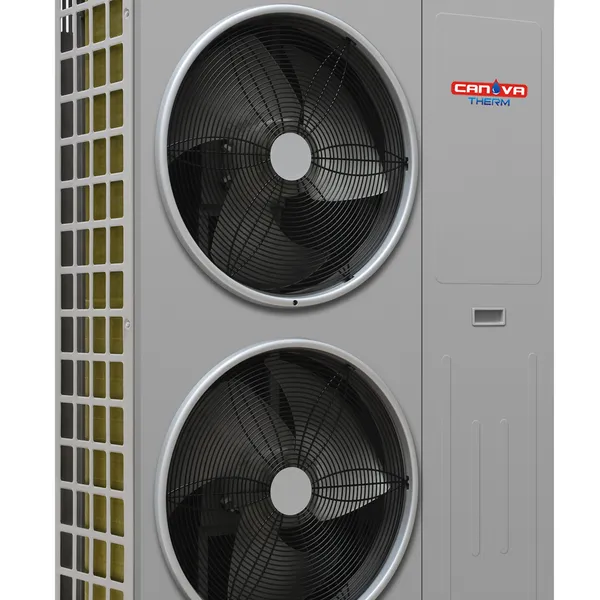

28.5Kw Monobloc DC Inverter Heat Pump

Guangzhou Canova Heating & Refrigeration Equipment Co., Ltd
28.5Kw Monobloc DC Inverter Heat Pump thumbnail-1
28.5Kw Monobloc DC Inverter Heat Pump thumbnail-2
28.5Kw Monobloc DC Inverter Heat Pump thumbnail-3
28.5Kw Monobloc DC Inverter Heat Pump photo-1
28.5Kw Monobloc DC Inverter Heat Pump photo-2
28.5Kw Monobloc DC Inverter Heat Pump photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE, ISO9001, CCC, ROHS, Other, TUV
Application:
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments
Heat Source:
Air-source
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE, ISO9001, CCC, ROHS, Other, TUV
Application Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments
Heat Source Air-source
Energy Efficiency Grade One
Heat Temperature 50-70°C
Work Environment Low-temperature Heat Pump
Heating Type Multi-power Heat
Refrigerant R32
Compressor Panasonic DC Inverter
Transport Package Plywood case
Specification 28.5KW
Trademark Canova
Origin Guangzhou, China

With the advanced DC inverter technology, CANOVA inverter air to water heat pump can save you 65% heating cost compare with the traditional heating device like gas/fuel boiler and electrical heater. It works perfectly with the radiator and floor heater to provide you a comfortable living environment even in very cold winter. It is one of the best heating devices available today.



Model
KFV240-BKFV480-BKFV480-B/3KFV640-B
Max Heating CapacityKW12.62323.228.5
Heating Capacity RangeKW4.2~12.68~238.1~23.210~28.5
Heating (A7/W35)CapacityKW10.51919.325
Input PowerKW2.284.044.025.32
CurrentA10.919.37.29.5
COP
4.64.74.84.7
Heating (A7/W45)CapacityKW10.318.218.624.3
Input PowerKW2.634.634.726.15
CurrentA12.622.28.411.0
COP
3.923.933.943.95
Cooling (A35/W7)CapacityKW7.815.215.520.5
Input PowerKW2.685.215.226.95
CurrentA12.824.99.312.4
EER
2.912.922.972.95
Power Supply

             220V~230V/1PH               380V~415V/3PH
Frequency Range
Hz30-8530-8530-8530-85
ERP (35℃)A+++A+++A+++A+++
ERP (55℃)A++A++A++A++
Heating output water temp℃                                                  25~60
Cooling output water temp℃                                                    5~20
Refrigerant                                                R32 / R410A
Controller                                           LCD Wire Controller
CompressorBrand
                                                  Panasonic
Type
                                         DC Inverter Twin Rotary
Fan motorType
                                                   DC Inverter
PCS
1222
EvaporatorType
                           Hydrophilic Aluminum Fin Heat Exchanger
Water side heat exhangerBrand
                                                    SWEP
Type
                                        Plate Heat Exchanger
Pressur DropkPa15252530
Throttle unit

                                    Electronic Expantion Valve
Water pump          (Built-in)Brand
                                                Grundfos
Type
                                               DC Inverter
Headm88810
Ambient Temp range℃                                                -30~45
Electric heater (Built- in)Kw2333
Expansion tank  (Built- in)L3555
Water flowm3/h1.83.33.34.3
Pipe size
DN25DN32DN32DN32
NoisedB(A)≤58≤63≤63≤65
Dimensionmm1160*390*8601060*390*13601060*390*13601060*390*1560
Weightkg90140145170

Heating test condition 1:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=30℃/35℃

Heating test condition 2:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=40℃/45℃

Cooling test condition :   Ambient temp.(DB/WB)=35℃/24℃, Inlet/Outlet water temp.=12℃/7℃


变频机1-2

变频机2

Heating test condition 1:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=30℃/35℃

Heating test condition 2:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=40℃/45℃

Cooling test condition :   Ambient temp.(DB/WB)=35℃/24℃, Inlet/Outlet water temp.=12℃/7℃


Features


  • Hybrid solar connection(optional)

  • Low starting current

  • High working efficiency

  • Reliable working

  • Easy and safe operation with multi-protection

  • Intelligent controller and adjustment by quick mind microprocessor


未标题-2


Product Tags: DC Inverter heat pump , R32 heat pumps , Monobloc heat pump
