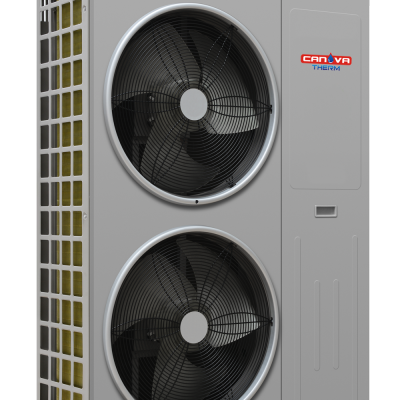

23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling

23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling thumbnail-1
23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling thumbnail-2
23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling thumbnail-3
23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling thumbnail-4
23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling photo-1
23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling photo-2
23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling photo-3
23.2Kw Monobloc EVI DC Inverter Heat Pump Hot Selling photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE, ISO9001, CCC, ROHS, Other, TUV
Application:
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Other
Heat Source:
Air-source
Contact Supplier Request Quote Chat Now
Guangzhou Canova Heating & Refrigeration Equipment Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE, ISO9001, CCC, ROHS, Other, TUV
Application Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Other
Heat Source Air-source
Energy Efficiency Grade One
Heat Temperature 50-70°C
Work Environment Low-temperature Heat Pump
Heating Type Multi-power Heat
Refrigerent R32
Compressor Panasonic DC Inverter
Power supply 380V~415V/3PH
Transport Package Plywood case
Specification 23.2KW
Trademark Canova
Origin Guangzhou, China

With the advanced DC inverter technology, CANOVA inverter air to water heat pump can save you 65% heating cost compare with the traditional heating device like gas/fuel boiler and electrical heater. It works perfectly with the radiator and floor heater to provide you a comfortable living environment even in very cold winter. It is one of the best heating devices available today.



Model
KFV240-B KFV480-B KFV480-B/3 KFV640-B
Max Heating Capacity KW 12.6 23 23.2 28.5
Heating Capacity Range KW 4.2~12.6 8~23 8.1~23.2 10~28.5
Heating (A7/W35) Capacity KW 10.5 19 19.3 25
Input Power KW 2.28 4.04 4.02 5.32
Current A 10.9 19.3 7.2 9.5
COP
4.6 4.7 4.8 4.7
Heating (A7/W45) Capacity KW 10.3 18.2 18.6 24.3
Input Power KW 2.63 4.63 4.72 6.15
Current A 12.6 22.2 8.4 11.0
COP
3.92 3.93 3.94 3.95
Cooling (A35/W7) Capacity KW 7.8 15.2 15.5 20.5
Input Power KW 2.68 5.21 5.22 6.95
Current A 12.8 24.9 9.3 12.4
EER
2.91 2.92 2.97 2.95
Power Supply

             220V~230V/1PH                380V~415V/3PH
Frequency Range
Hz 30-85 30-85 30-85 30-85
ERP (35℃) A+++ A+++ A+++ A+++
ERP (55℃) A++ A++ A++ A++
Heating output water temp ℃                                                   25~60
Cooling output water temp ℃                                                     5~20
Refrigerant                                                 R32 / R410A
Controller                                            LCD Wire Controller
Compressor Brand
                                                  Panasonic
Type
                                         DC Inverter Twin Rotary
Fan motor Type
                                                   DC Inverter
PCS
1 2 2 2
Evaporator Type
                           Hydrophilic Aluminum Fin Heat Exchanger
Water side heat exhanger Brand
                                                    SWEP
Type
                                        Plate Heat Exchanger
Pressur Drop kPa 15 25 25 30
Throttle unit

                                    Electronic Expantion Valve
Water pump          (Built-in) Brand
                                                Grundfos
Type
                                               DC Inverter
Head m 8 8 8 10
Ambient Temp range ℃                                                 -30~45
Electric heater (Built- in) Kw 2 3 3 3
Expansion tank  (Built- in) L 3 5 5 5
Water flow m3/h 1.8 3.3 3.3 4.3
Pipe size
DN25 DN32 DN32 DN32
Noise dB(A) ≤58 ≤63 ≤63 ≤65
Dimension mm 1160*390*860 1060*390*1360 1060*390*1360 1060*390*1560
Weight kg 90 140 145 170

Heating test condition 1:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=30℃/35℃

Heating test condition 2:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=40℃/45℃

Cooling test condition :   Ambient temp.(DB/WB)=35℃/24℃, Inlet/Outlet water temp.=12℃/7℃


变频机1-2

变频机2

Heating test condition 1:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=30℃/35℃

Heating test condition 2:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=40℃/45℃

Cooling test condition :   Ambient temp.(DB/WB)=35℃/24℃, Inlet/Outlet water temp.=12℃/7℃


Features


  • Hybrid solar connection(optional)

  • Low starting current

  • High working efficiency

  • Reliable working

  • Easy and safe operation with multi-protection

  • Intelligent controller and adjustment by quick mind microprocessor


未标题-2


Product Tags: EVI DC Inverter heat pump , R32 heat pumps hot selling , A+++ Monobloc heat pump
