R32 A+++ 12.6KW Monobloc Full DC Inverter Heat Pump

Guangzhou Canova Heating & Refrigeration Equipment Co., Ltd
R32 A+++ 12.6KW Monobloc Full DC Inverter Heat Pump thumbnail-1
R32 A+++ 12.6KW Monobloc Full DC Inverter Heat Pump thumbnail-2

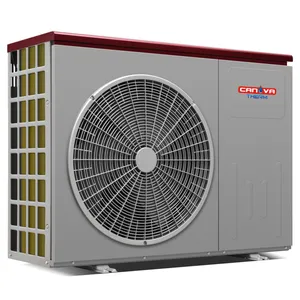

R32 A+++ 12.6KW Monobloc Full DC Inverter Heat Pump thumbnail-3
R32 A+++ 12.6KW Monobloc Full DC Inverter Heat Pump photo-1

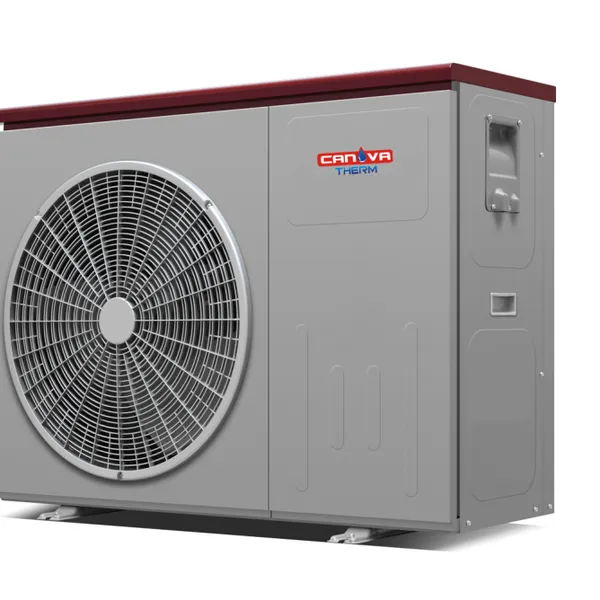

R32 A+++ 12.6KW Monobloc Full DC Inverter Heat Pump photo-2

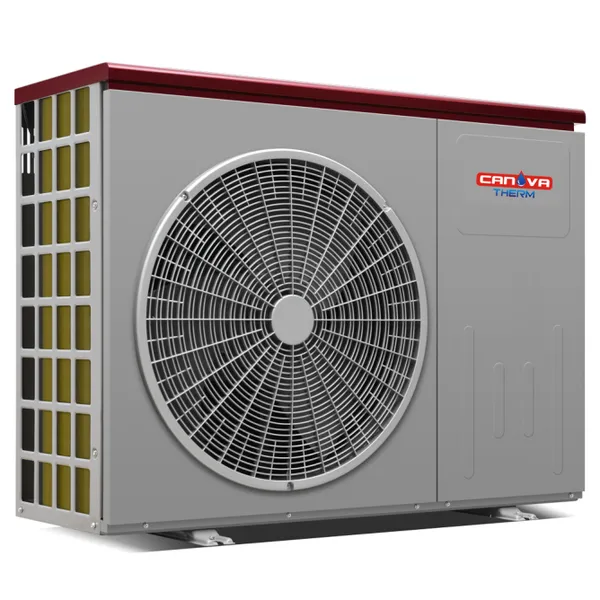

R32 A+++ 12.6KW Monobloc Full DC Inverter Heat Pump photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE, ISO9001, CCC, CB, ROHS, Other, TUV
Application:
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Heat Source:
Air-source
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE, ISO9001, CCC, CB, ROHS, Other, TUV
Application Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Heat Source Air-source
Energy Efficiency Grade One
Heat Temperature 50-70°C
Work Environment Low-temperature Heat Pump
Heating Type Multi-power Heat
Refrigerant R32
Outet water temp 60°C
Ambient temp -35~45°C
Certificate CE, TUV, CCC
Compressor Panasonic EVI DC Inverter
Function Heating+Cooling+Hot water
Transport Package Plywood case
Specification 12.6KW
Trademark Canova
Origin Guangzhou, China

This series-Full Dc Inverter Heat Pump is splendid for domestic central heating and cooling with fan coil units,which its water pump built in.The water tank connection with this heat pump does not have copper coil heat exchanger inside,which saves the cost of water tank.

DC inverter heat pump can reduce more starting time than normal  heat pumps.It also can adjust the operating speed of the compressor and fan to extend the working life of the machine.


Model
KFV240-BKFV480-BKFV480-B/3KFV640-B
Max Heating CapacityKW12.62323.228.5
Heating Capacity RangeKW4.2~12.68~238.1~23.210~28.5
Heating (A7/W35)CapacityKW10.51919.325
Input PowerKW2.284.044.025.32
CurrentA10.919.37.29.5
COP
4.64.74.84.7
Heating (A7/W45)CapacityKW10.318.218.624.3
Input PowerKW2.634.634.726.15
CurrentA12.622.28.411.0
COP
3.923.933.943.95
Cooling (A35/W7)CapacityKW7.815.215.520.5
Input PowerKW2.685.215.226.95
CurrentA12.824.99.312.4
EER
2.912.922.972.95
Power Supply

             220V~230V/1PH               380V~415V/3PH
Frequency Range
Hz30-8530-8530-8530-85
ERP (35℃)A+++A+++A+++A+++
ERP (55℃)A++A++A++A++
Heating output water temp℃                                                  25~60
Cooling output water temp℃                                                    5~20
Refrigerant                                                R32 / R410A
Controller                                           LCD Wire Controller
CompressorBrand
                                                  Panasonic
Type
                                         DC Inverter Twin Rotary
Fan motorType
                                                   DC Inverter
PCS
1222
EvaporatorType
                           Hydrophilic Aluminum Fin Heat Exchanger
Water side heat exhangerBrand
                                                    SWEP
Type
                                        Plate Heat Exchanger
Pressur DropkPa15252530
Throttle unit

                                    Electronic Expantion Valve
Water pump            (Built-in)Brand
                                                Grundfos
Type
                                               DC Inverter
Headm88810
Ambient Temp range℃                                                -30~45
Electric heater (Built- in)Kw2333
Expansion tank  (Built- in)L3555
Water flowm3/h1.83.33.34.3
Pipe size
DN25DN32DN32DN32
NoisedB(A)≤58≤63≤63≤65
Dimensionmm1160*390*8601060*390*13601060*390*13601060*390*1560
Weightkg90140145170


Heating test condition 1:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=30℃/35℃

Heating test condition 2:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=40℃/45℃

Cooling test condition :   Ambient temp.(DB/WB)=35℃/24℃, Inlet/Outlet water temp.=12℃/7℃

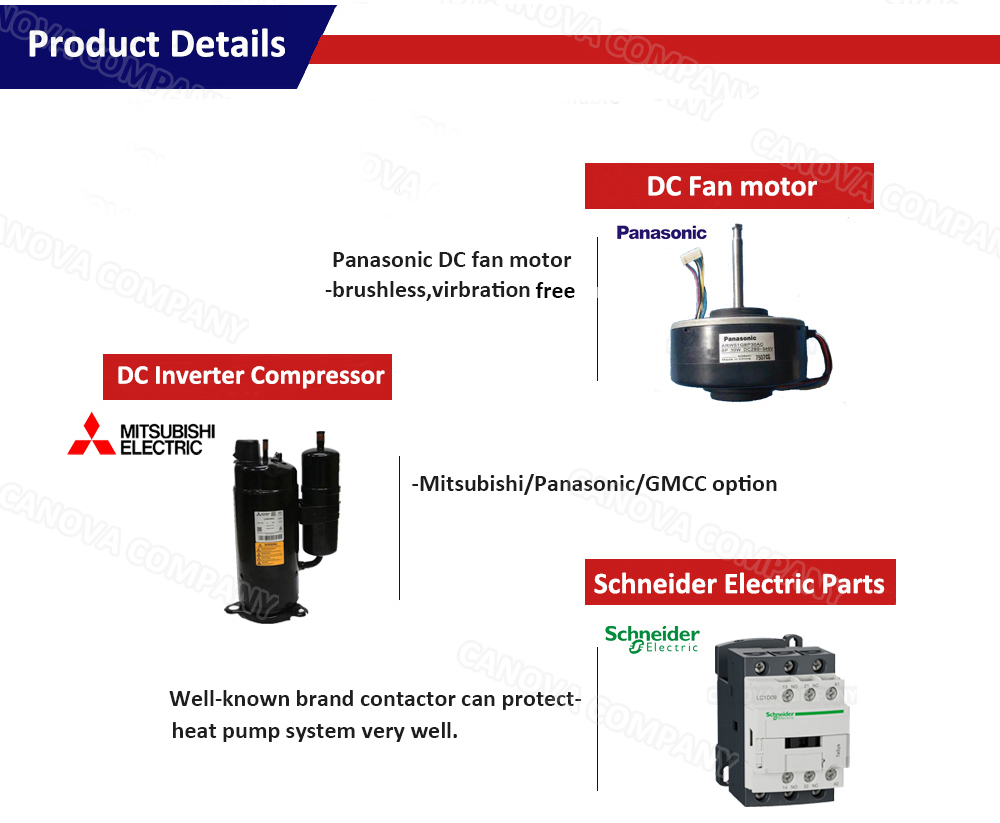

变频机1-2

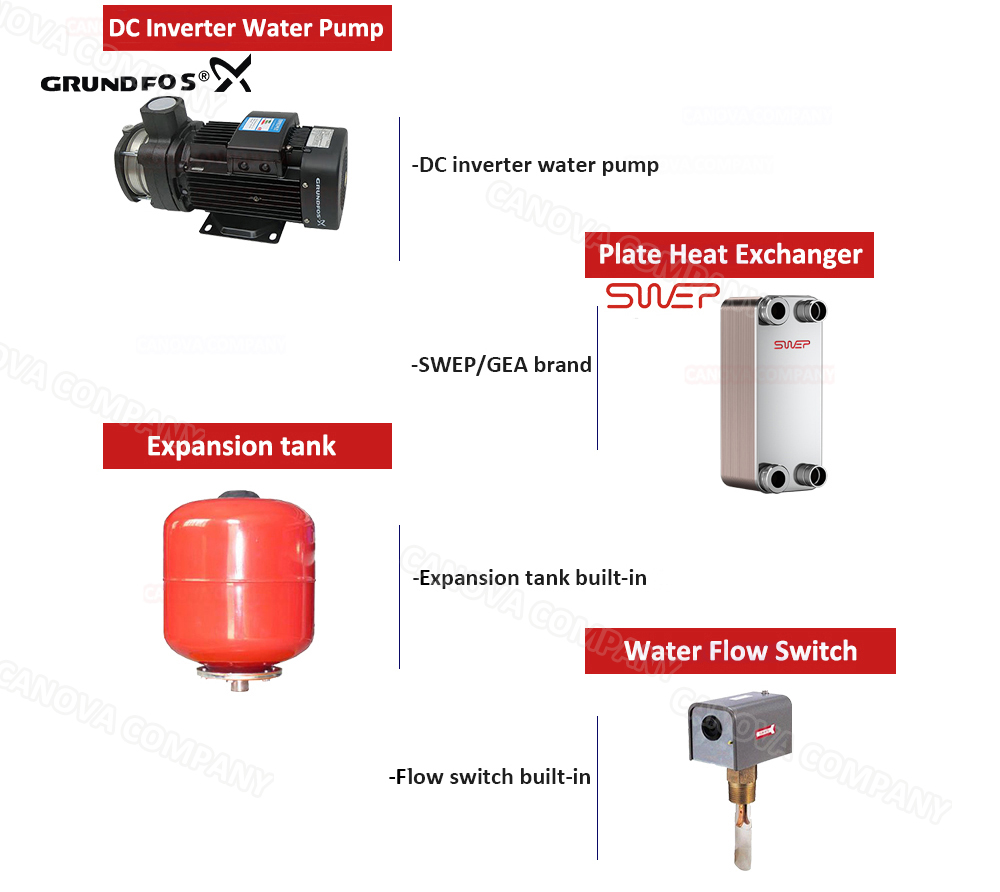

变频机2

Features


  • Hybrid solar connection(optional)

  • Mitsubishu/GMCC compressor with R410A/R32 refrigerant.

  • Heating + Cooling + Hot water

  • Anti-freezing work in -35 degrees low temperature.

  • Thermostatic heating element for evaporator and anti-frosting protection.

  • Energy-saving 80%.

  • Automatic defrosting function included (With reverse valve inside).

  • Water pump installed inside.

  • OEM/ODM service

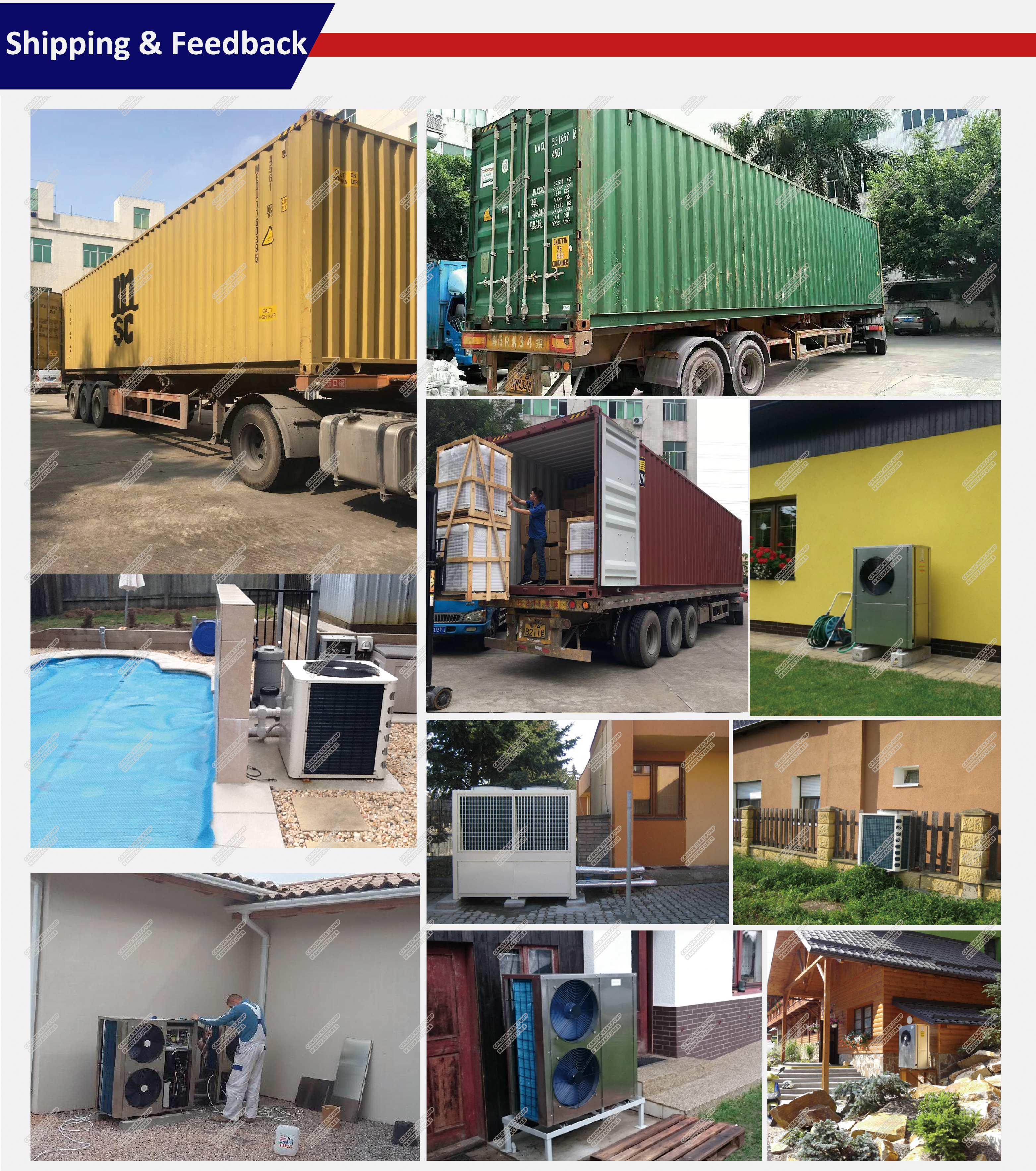

未标题-2
