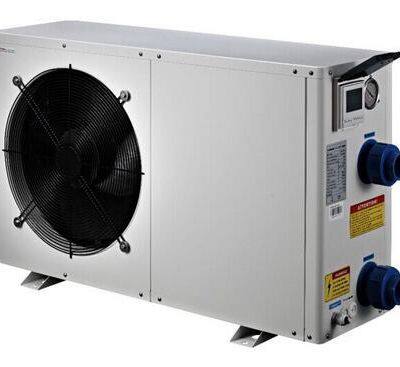

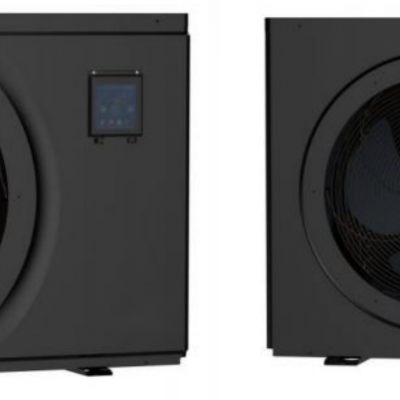

DC Inverter Swimming Pool Heat Pump For Domestic Use
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE, ISO9001, CCC, ROHS, Other, TUV
Application:
Villa Family, Sauna and Swimming Pool, Beauty Salons, Other
Heat Source:
Air-source
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
15 days
Related Products
-
14Kw Commercial Swimming Pool Heat Pump Water HeaterNegotiableMOQ: 1 Piece -
11.3KW Geothermal Ground Source Heat PumpNegotiableMOQ: 1 Piece
-
Commercial Heat Pump DryerNegotiableMOQ: 1 Piece
-
A+++ R290 8.6kw,9.5KW,12KW,15KW Monobloc Full DC Inverter Heat PumpNegotiableMOQ: 1 Piece
-
1.8KW/2.8KW-200L/250L All in One Heat Pump Water HeaterNegotiableMOQ: 1 Piece
Certification
CE, ISO9001, CCC, ROHS, Other, TUV
Application
Villa Family, Sauna and Swimming Pool, Beauty Salons, Other
Heat Source
Air-source
Energy Efficiency Grade
One
Heat Temperature
50-70°C
Work Environment
Common Heat Pump
Heating Type
Multi-power Heat
Compressor
GMCC/Mitsubishi/Panasonic
Refrigerant
R32
Heat exchanger
Titanium in PVC
Casing material
ABS Plastic+ Galvanized Sheet
Transport Package
Plywood case
Specification
14kw
Trademark
Canova
Origin
Guangzhou, China
| Model | CNV-5YC | CNV-7YC | CNV-9YC | CNV-11YC | CNV-15YC | CNV-18YC | CNV-21YC | CNV-25YC | CNV-21YC | CNV-25YC | CNV-28YC | |
| 1. DC inverter technology. 2. Higher efficiency than normal on/off type. 3. Wide range of compressor frequency. 4. Plastic ABS cabinet with excellent weather resistance. 5. Eco friendly refrigerant: R32. | ||||||||||||
| Power Supply | 220-240V~/ 50Hz | 380-415V/3N~/50Hz | ||||||||||
| Performance Condition: Ambient Temp.: (DB/WB) 27°C/24.3°C; Water Inlet/Outlet Temp.: 26°C/28°C. | ||||||||||||
| Heating Capacity Range (kW) | 1.5~5.52 | 1.5~7.21 | 1.8~9.48 | 2.8~11.51 | 3.48~15.3 | 4.34~18.1 | 4.72~21.21 | 5.05~25.28 | 4.72~21.21 | 5.05~25.28 | 5.4~28.06 | |
| Consumed Power Range (kW) | 0.09~0.82 | 0.09~1.09 | 0.11~1.44 | 0.17~1.74 | 0.22~2.35 | 0.27~2.81 | 0.29~3.26 | 0.31~3.89 | 0.29~3.26 | 0.31~3.89 | 0.33~4.32 | |
| COP Range | 16.7~6.7 | 16.7~6.6 | 16.4~6.6 | 16.5~6.6 | 15.9~6.5 | 16.1~6.4 | 16.2~6.5 | 16.2~6.5 | 16.2~6.5 | 16.2~6.5 | 16.3~6.51 | |
| Boost Mode | Heating Capacity (kW) | 5.52 | 7.21 | 9.48 | 11.51 | 15.3 | 18.1 | 21.21 | 25.28 | 21.21 | 25.28 | 28.06 |
| COP | 6.7 | 6.6 | 6.6 | 6.6 | 6.5 | 6.4 | 6.5 | 6.5 | 6.5 | 6.5 | 6.51 | |
| Smart Mode | Heating Capacity (kW) | 4.5 | 5.8 | 7.8 | 9.1 | 11.55 | 14.01 | 17 | 20.4 | 17 | 20.4 | 22.61 |
| COP | 8.91 | 9.03 | 9.02 | 9.32 | 9.18 | 9 | 9.35 | 8.9 | 9.35 | 8.9 | 8.92 | |
| Silent Mode | Heating Capacity (kW) | 2.1 | 2.8 | 3.5 | 5.5 | 7.35 | 8.7 | 10.2 | 12.3 | 10.2 | 12.3 | 13.91 |
| COP | 14.1 | 14.2 | 14.2 | 13.8 | 13.6 | 13.2 | 13.1 | 13.6 | 13.1 | 13.6 | 13.5 | |
| Performance Condition: Ambient Temp.: (DB/WB) 15°C/12°C; Water Inlet Temp.: 26°C. | ||||||||||||
| Heating Capacity (kW) | 1.11~3.91 | 1.3~5.42 | 1.51~7.89 | 2.2~8.21 | 2.96~11.14 | 3.44~13.35 | 3.51- 14.21 | 3.81- 17.08 | 3.51- 14.21 | 3.81- 17.08 | 4.04~18.49 | |
| Consumed Power (kW) | 0.13~0.75 | 0.16~1.06 | 0.18~1.52 | 0.27~1.61 | 0.36~2.19 | 0.41~2.61 | 0.43~2.78 | 0.48~3.35 | 0.43~2.78 | 0.48~3.35 | 0.49~3.56 | |
| COP | 8.4~5.2 | 8.1~5.1 | 8.3~5.2 | 8.1~5.1 | 8.3~5.1 | 8.3~5.1 | 8.1~5.1 | 8~5.1 | 8.1~5.1 | 8~5.1 | 8.2~5.2 | |
| Boost Mode | Heating Capacity (kW) | 3.91 | 5.42 | 7.89 | 8.21 | 11.14 | 13.35 | 14.21 | 17.08 | 14.21 | 17.08 | 18.49 |
| COP | 5.2 | 5.1 | 5.2 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.1 | 5.2 | |
| Smart Mode | Heating Capacity (kW) | 3.1 | 4.3 | 6.1 | 6.58 | 8.65 | 10.55 | 11.2 | 13.5 | 11.2 | 13.5 | 14.63 |
| COP | 6.21 | 6.23 | 6.22 | 6.19 | 6.2 | 6.16 | 6.2 | 6.21 | 6.2 | 6.21 | 6.18 | |
| Silent Mode | Heating Capacity (kW) | 2.2 | 2.4 | 2.5 | 4.37 | 5.55 | 6.72 | 7.5 | 8.3 | 7.5 | 8.3 | 9.31 |
| COP | 7.59 | 7.55 | 7.58 | 7.53 | 7.55 | 7.54 | 7.5 | 7.52 | 7.5 | 7.52 | 7.53 | |
| Performance Condition: Ambient Temp.: (DB/WB) 35°C/-; Water Inlet/Outlet Temp.: 30°C/28°C. | ||||||||||||
| Cooling Capacity (kW) | 1.51~3.22 | 1.78~3.75 | 1.92~5.13 | 2.48~6.33 | 3.41~8 | 4.15~9.88 | 4.4 - 10.12 | 4.6 - 11.5 | 4.4 - 10.12 | 4.6 - 11.5 | 4.65~13.6 | |
| Consumed Power (kW) | 0.19~0.67 | 0.22~0.78 | 0.24~1.06 | 0.31~1.3 | 0.43~1.65 | 0.53~2.03 | 0.57~2.08 | 0.59~2.38 | 0.57~2.08 | 0.59~2.38 | 0.59~2.8 | |
| EER | 7.95~4.81 | 7.92~4.78 | 7.86~4.85 | 7.85~4.88 | 7.91~4.85 | 7.9~4.87 | 7.75~4.86 | 7.81~4.88 | 7.75~4.86 | 7.81~4.88 | 7.82~4.86 | |
| Boost Mode | Heating Capacity (kW) | 3.22 | 3.75 | 5.13 | 6.33 | 8 | 9.88 | 10.12 | 11.5 | 10.12 | 11.5 | 13.6 |
| COP | 4.81 | 4.78 | 4.85 | 4.88 | 4.85 | 4.87 | 4.86 | 4.88 | 4.86 | 4.88 | 4.86 | |
| Smart Mode | Heating Capacity (kW) | 2.3 | 2.92 | 3.5 | 4.89 | 6.45 | 7.77 | 8.9 | 9.8 | 8.9 | 9.8 | 10.55 |
| COP | 6.1 | 5.98 | 5.95 | 5.86 | 5.88 | 5.74 | 5.69 | 5.62 | 5.69 | 5.62 | 5.65 | |
| Silent Mode | Heating Capacity (kW) | 1.8 | 2.18 | 2.4 | 3.12 | 4.15 | 4.88 | 5.55 | 5.86 | 5.55 | 5.86 | 6.55 |
| COP | 7.28 | 7.31 | 7.28 | 7.16 | 7.15 | 7.12 | 7.11 | 7.12 | 7.11 | 7.12 | 7.15 | |
| Max. Power Input (kW) | 1.31 | 1.61 | 1.75 | 2.3 | 3.2 | 3.9 | 4.1 | 4.5 | 4.1 | 4.5 | 5.4 | |
| Max. Current (A) | 5.95 | 7.32 | 7.96 | 10.5 | 14.5 | 17.7 | 18.8 | 19.5 | 7.3 | 8.5 | 10.2 | |
| Advised Pool Volume (m³) | 10~20 | 15~30 | 20~40 | 25~50 | 30~60 | 35~70 | 45~80 | 55~90 | 45~80 | 55~90 | 65~100 | |
| Running Ambient Temp. Range (℃) | -10~43 | |||||||||||
| Heating Temperature Range (℃) | 15~40 | |||||||||||
| Cooling Temperature Range (℃) | 8~28 | |||||||||||
| Refrigerant | R32 | |||||||||||
| Compressor Type | DC Inverter Rotary | |||||||||||
| Compressor Brand | GMCC/Mitsubishi/Panasonic | |||||||||||
| Throttling device | Electronic expansion valve | |||||||||||
| 4-Way Valve | Yes | |||||||||||
| Fan Quantity | 1 | |||||||||||
| Heat Exchanger | Titanium in PVC | |||||||||||
| Casing Material | ABS Plastic+ Galvanized Sheet | |||||||||||
| Water Pipe Connection (mm) | 50 | |||||||||||
| Sound Pressure 1m dB (A) | 30~43 | 32~45 | 33~47 | 33~47 | 34~48 | 34~48 | 35~50 | 35~52 | 35~50 | 35~52 | 36~52 | |
| Water Flow Volume (m³/h) | 2.4 | 3.1 | 4.1 | 4.9 | 6.6 | 7.7 | 9.1 | 10.8 | 9.1 | 10.8 | 12 | |
| Water Pressure Drop (kpa) | 15.00 | 17.00 | 18.00 | 15.00 | 18.00 | 23.00 | 32.00 | 35.00 | 32.00 | 35.00 | 38.00 | |
| Electric Shock Proof | Ⅰ | |||||||||||
| Water Proof Level | IPX4 | |||||||||||
| Net weight(kg) | 41 | 45 | 47 | 53 | 53 | 62 | 82 | 87 | 82 | 87 | 92 | |
| Unit Dimensions(L*W*H) (mm) | 910×355×620 | 1000×400×660 | 1130×455×760 | |||||||||
Features:
· Mitsubishi DC inverter compressor
· Titanium tube in PVC shell heat exchanger
· Compact structure
· Intelligent defrosting
· Stable running,economic&durable
· Easy installation&operation
· Cooling in summer&heating in winter
