3.5~7KW Domestic Air Source Heat Pump

3.5~7KW Domestic Air Source Heat Pump photo-1

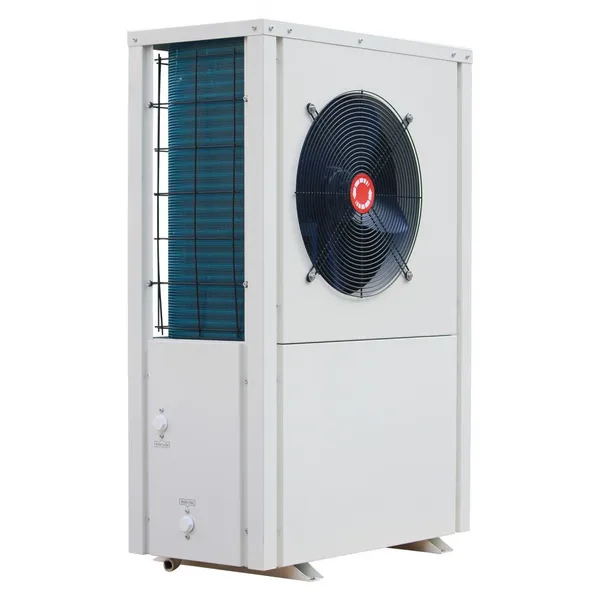

3.5~7KW Domestic Air Source Heat Pump photo-2
3.5~7KW Domestic Air Source Heat Pump photo-3

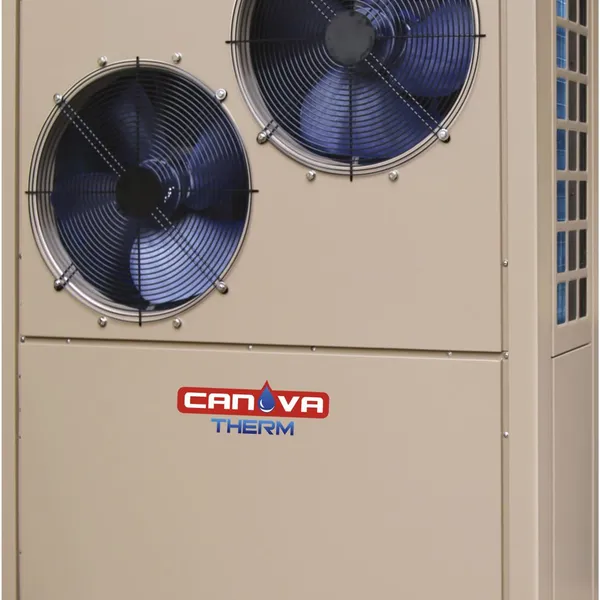

3.5~7KW Domestic Air Source Heat Pump photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE, ISO9001, CCC, ROHS, Other, TUV
Application:
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Other
Heat Source:
Air-source
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
15 days
Certification CE, ISO9001, CCC, ROHS, Other, TUV
Application Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Other
Heat Source Air-source
Energy Efficiency Grade One
Heat Temperature 50-70°C
Work Environment Common Heat Pump
Heating Type Multi-power Heat
Transport Package Plywood case
Specification 3.5KW
Trademark Canova
Origin Guangzhou, China

This type adopts high efficiency tube in shell heat exchanger and built-in water pump inside the machine,which ensures not only high efficient performance of the system but also easy installation.It supplies domestic hot water for shower,washing etc.

Model


KF80-B

KF120-B

KF160-B

Heating capacity

Kw

3.5

5

7.4

COP


4.12

4.17

4.01

Rated heated water output

L/h

75

110

160

Rated outlet water temp

ºC

                                                 55

Max outlet water temp

ºC

                                                 60

Rated power input

Kw

0.85

1.20

1.85

Rated current

A

4.07

5.74

8.85

Power supply

V/Hz

                                        220~240/50

Compressor type


                                            Rotary

Number of compressor


                                                1

Heat exchanger type


                     High efficiency tube in shell heat exchanger

Throttling device


                              Capillary

EEV

Fan type


                           Low noise high efficiency axial type

Fan discharging


                                             Horizontal

Fan input

W

20

20

40

Fan speed

RPM

830

830

850

Ambient temperature

ºC

                                              -7~43

Refrigerant


                                          R22/R410A

Noise

dB(A)

                                                ≤54

Water pipe size

mm

                                               Rc3/4

Suggested water tank

L

100-150

200-300

300-500

Cabinet


                            Galvanized powder coated steel

Low pressure protection system


                                                   Yes

High pressure protection system


                                                   Yes

Water flow switch


                                                   No

Automatic defrosting syetem


                                                   Yes

Product dimension

mm

930/360/560

930/360/560

1005/305/587

Net weight

Kg

55

62

66

Testing condition:

Heating:Ambient temp(DB/WB):20ºC/15ºC,Water temp(imput/output):15ºC/55ºC



Features:



· Highly rotary compressor

· Water pump built in machine

· Automatic defrosting

· Intelligent controller

· Safe, reliable, stable running

· Long working life

· Low noise&vibration

· Intelligent controller



Optional:


· Refrigerant:R22,R410A,R134A,R417A

· Cabinet:Stainless steel/powder coated steel

· Heating exchanger:tube-in-shell/tube-in-tube



Product Tags: Monobloc heat pump , Hot water heat pumps , Domestic hot water heater pump
