19KW~210KW Commercial Heat Pump Water Heater For Room Heating

19KW~210KW Commercial Heat Pump Water Heater For Room Heating photo-1

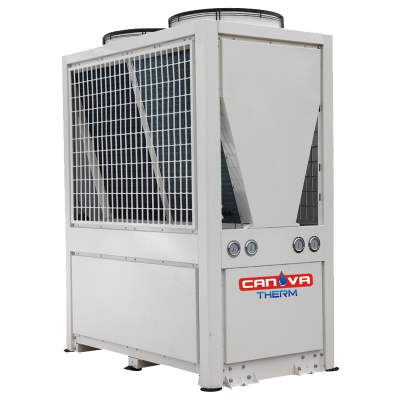

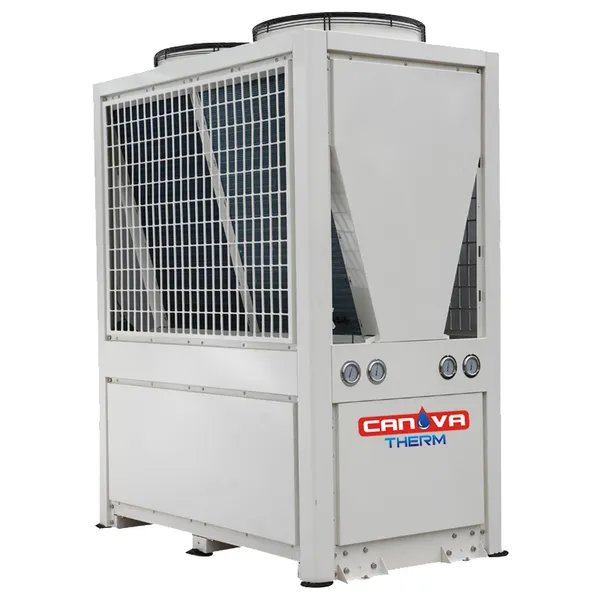

19KW~210KW Commercial Heat Pump Water Heater For Room Heating photo-2

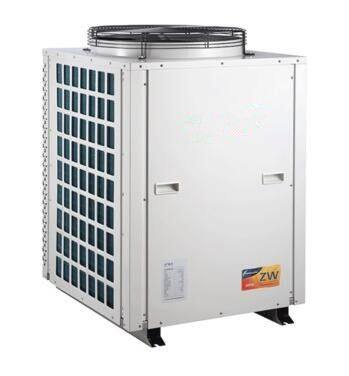

19KW~210KW Commercial Heat Pump Water Heater For Room Heating photo-3

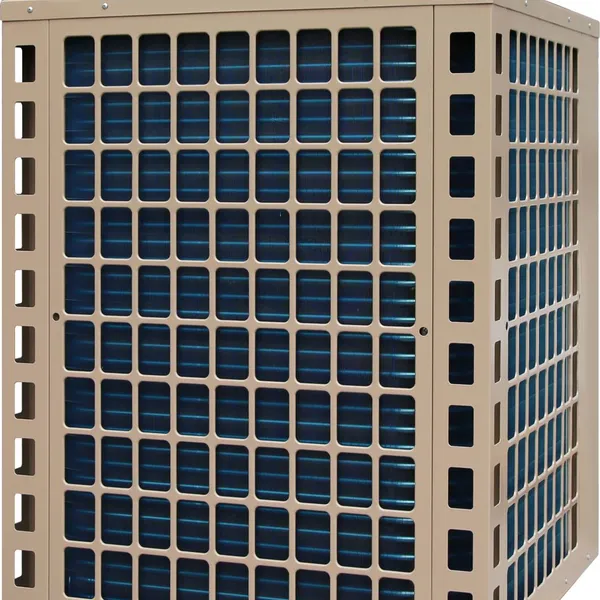

19KW~210KW Commercial Heat Pump Water Heater For Room Heating photo-4

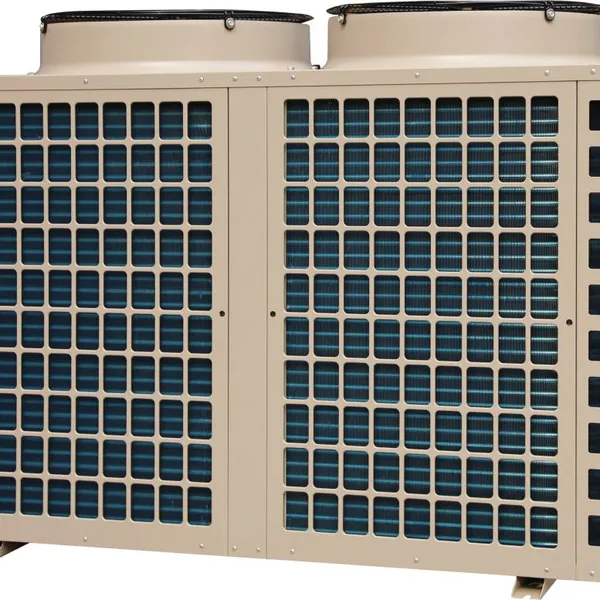

19KW~210KW Commercial Heat Pump Water Heater For Room Heating photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE, ISO9001, CCC, ROHS, Other, TUV
Application:
Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Other
Heat Source:
Air-source
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
15 days
Certification CE, ISO9001, CCC, ROHS, Other, TUV
Application Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Other
Heat Source Air-source
Energy Efficiency Grade One
Heat Temperature 50-70°C
Work Environment Common Heat Pump
Compressor Copeland Scroll
Refrigerant R407C / R410A
Transport Package Plywood case
Specification 19kw
Trademark Canova
Origin Guangzhou, China

 This series of Air Source Heat Pump adopts high efficiency tube-in shell heat exchanger , which ensures not only high efficiency performance of the system but also easy installation work. Different from other ordinary System in installation, just simply connection the heat pump unit to the water tank through water piping, refrigerant pipe connection work is not needed. The water tank connection with this heat pump does not have copper coil heat exchanger inside, which saves the cost of water tank.

Model
KFRS-10I/DKFRS-20II/DKFRS-25II/DKFRS-35II/D
Heating (A20/W15-55)Hot water capacityKW11.21925.538.3
COPW/W4.334.324.334.35
Heating (A7/W35)Heating capacityKW9.315.821.231.8
COPW/W4.074.064.074.09
Heating (A7/W45)Heating capacityKW9.015.2020.430.6
COPW/W3.353.343.453.42
Cooling (A35/W7)Cooling capacityW/W7.612.917.326.0
EERW/W2.912.92.912.93
Rated heated water outputL/h240407546821
Rated outlet water temp55
Max outlet water temp60
Rated power inputKw2.64.45.98.8
Rated currentA12.47.910.515.7
Power supplyV/Hz220~240/50380~415/50
CompressorBrand
Emerson Copeland
Type
EVI Scroll
Number of compressor
1112
EvaporatorType
Hydrophilic Aluminum Fin Heat Exchanger
Water side heat exhangerType
High Efficiency Tube in Shell Heat Exchanger
Pressure dropkPa30354040
Throttling device
EEV
Fan motorFan type
Low noise high efficiency axial type
Fan discharging
Vertical
Fan quanlity
1112
Fan inputW70250250250
Fan speedRPM850880880850
Ambient temperature(-30~43)
Refrigerant
R407C / R410A
Noise in 1 meter distancedB(A)59626263
Water pipe sizeinchRc1Rc1Rc1Rc1-1/2
Water flowm3/h1.93.34.46.6
Cabinet
Stainless steel / Galvanized Powder Coated Steel
Low pressure protection system
Yes
High pressure protection system
Yes
Water flow switch
No
Automatic defrosting system
Yes
Product Dimensionmm710/710/855750/750/1100750/750/11001450/705/1375
Net weightKg118142165330


Product Tags: Commercial heat pump , Hot water heat pumps , Air source heat pump 19KW
