12.6Kw Hybrid Solar A+++ Full DC Inverter Heat Pump Water Heater

12.6Kw Hybrid Solar A+++ Full DC Inverter Heat Pump Water Heater thumbnail-1
12.6Kw Hybrid Solar A+++ Full DC Inverter Heat Pump Water Heater thumbnail-2
12.6Kw Hybrid Solar A+++ Full DC Inverter Heat Pump Water Heater photo-1
12.6Kw Hybrid Solar A+++ Full DC Inverter Heat Pump Water Heater photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE, ISO9001, CCC, ROHS, Other, TUV
Application:
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Other
Heat Source:
Air-source
Contact Supplier Request Quote Chat Now
Guangzhou Canova Heating & Refrigeration Equipment Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE, ISO9001, CCC, ROHS, Other, TUV
Application Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Other
Heat Source Air-source
Energy Efficiency Grade One
Heat Temperature 50-70°C
Work Environment Low-temperature Heat Pump
Heating Type Multi-power Heat
Transport Package Plywood case
Specification 12KW
Trademark Canova
Origin Guangzhou, China

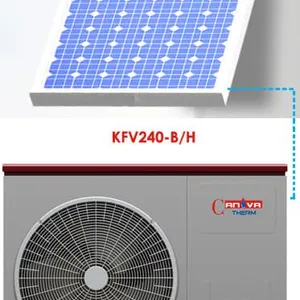

Canova Hybrid Solar heat pump works with solar panel unstable DC power directly from 7am to 17pm day time.

Rainy day, it will work mix power AC+DC and priority from solar power.

At night, it automatically get grid AC power same as Canova normal DC inverter heat pump.

The unit with WiFi function can be controlled anywhere through WiFi or Bluetooth,and App with DC power meter and AC power meter,you can fully check how much energy saving or energy using through App smart power meter function.

hybrid solar heat pump working



Features


  • Hybrid Solar connection(optional)

  • Mitsubishu/GMCC compressor with R410A/R32 refrigerant.

  • Heating + cooling + hot water

  • Anti-freezing work in -25 degrees low temperature.

  • Thermostatic heating element for evaporator and anti-frosting protection.

  • Energy-saving 80%.

  • Automatic defrosting function included (With reverse valve inside).

  • Wilo/Grundfos water pump installed inside.(optional)

  • OEM/ODM service


Model
KFV240-B KFV480-B KFV480-B/3 KFV640-B
Max Heating Capacity KW 12.6 23 23.2 28.5
Heating Capacity Range KW 4.2~12.6 8~23 8.1~23.2 10~28.5
Heating (A7/W35) Capacity KW 10.5 19 19.3 25
Input Power KW 2.28 4.04 4.02 5.32
Current A 10.9 19.3 7.2 9.5
COP
4.6 4.7 4.8 4.7
Heating (A7/W45) Capacity KW 10.3 18.2 18.6 24.3
Input Power KW 2.63 4.63 4.72 6.15
Current A 12.6 22.2 8.4 11.0
COP
3.92 3.93 3.94 3.95
Cooling (A35/W7) Capacity KW 7.8 15.2 15.5 20.5
Input Power KW 2.68 5.21 5.22 6.95
Current A 12.8 24.9 9.3 12.4
EER
2.91 2.92 2.97 2.95
Power Supply

              220V~230V/1PH                  380V~415V/3PH
Frequency Range
Hz 30-85 30-85 30-85 30-85
ERP (35ºC) A+++ A+++ A+++ A+++
ERP (55ºC) A++ A++ A++ A++
Heating output water temp ºC                                                            25~60
Cooling output water temp ºC                                                             5~20
Refrigerant                                                     R32 / R410A
Controller                                               LCD Wire Controller
Compressor Brand
                                                       Panasonic
Type
                                           DC Inverter Twin Rotary
Fan motor Type
                                                      DC Inverter
PCS
1 2 2 2
Evaporator Type
                            Hydrophilic Aluminum Fin Heat Exchanger
Water side heat exhanger Brand
                                                            SWEP
Type
                                              Plate Heat Exchanger
Pressur Drop kPa 15 25 25 30
Throttle unit

                                          Electronic Expantion Valve
Water pump                        (Built-in) Brand
                                                         Grundfos
Type
                                                       DC Inverter
Head m 8 8 8 10
Ambient Temp range ºC                                                            -30~45
Electric heater (Built- in) Kw 2 3 3 3
Expansion tank  (Built- in) L 3 5 5 5
Water flow m3/h 1.8 3.3 3.3 4.3
Pipe size
DN32 DN32 DN32 DN32
Noise dB(A) ≤58 ≤63 ≤63 ≤65
Dimension mm 1060*390*950 1060*390*1360 1060*390*1360 1060*390*1560
Weight kg 90 140 145 170

变频机1-2

变频机2

Features


  • Hybrid solar connection(optional)

  • Mitsubishu/GMCC compressor with R410A/R32 refrigerant.

  • Heating + Cooling + Hot water

  • Anti-freezing work in -35 degrees low temperature.

  • Thermostatic heating element for evaporator and anti-frosting protection.

  • Energy-saving 80%.

  • Automatic defrosting function included (With reverse valve inside).

  • Water pump installed inside.

  • OEM/ODM service



未标题-2


Product Tags: Full DC Inverter heat pump , R32 heat pumps , Hybrid solar heat pump
