23KW 380V/50Hz Hybrid Solar DC Inverter Heat Pump

23KW 380V/50Hz Hybrid Solar DC Inverter Heat Pump photo-1

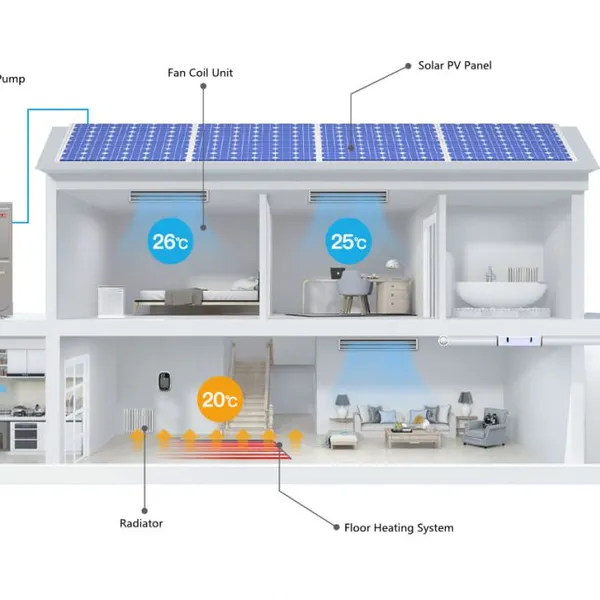

23KW 380V/50Hz Hybrid Solar DC Inverter Heat Pump photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE, ISO9001, CCC, ROHS, Other, TUV
Application:
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Heat Source:
Air-source
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
15 days
Certification CE, ISO9001, CCC, ROHS, Other, TUV
Application Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Heat Source Air-source
Energy Efficiency Grade One
Heat Temperature 50-70°C
Work Environment Low-temperature Heat Pump
Heating Type Multi-power Heat
Transport Package Plywood case
Specification 23KW
Trademark Canova
Origin Guangzhou, China

Canova Hybrid Solar heat pump works with solar panel unstable DC power directly from 7am to 17pm day time.

Rainy day, it will work mix power AC+DC and priority from solar power.

At night, it automatically get grid AC power same as Canova normal DC inverter heat pump.

The unit with WiFi function can be controlled anywhere through WiFi or Bluetooth,and App with DC power meter and AC power meter,you can fully check how much energy saving or energy using through App smart power meter function.

hybrid solar heat pump working


Features


  • Hybrid Solar connection(optional).

  • Mitsubishu/GMCC compressor with R410A/R32 refrigerant.

  • Heating + cooling + hot water.

  • Anti-freezing work in -25 degrees low temperature.

  • Thermostatic heating element for evaporator and anti-frosting protection.

  • Energy-saving 80%.

  • Automatic defrosting function included (With reverse valve inside).

  • Wilo/Grundfos water pump installed inside.(optional).

  • OEM/ODM service.


Model
KFV240-B KFV480-B KFV480-B/3 KFV640-B
Max Heating Capacity KW 12.6 23 23.2 28.5
Heating Capacity Range KW 4.2~12.6 8~23 8.1~23.2 10~28.5
Heating (A7/W35) Capacity KW 10.5 19 19.3 25
Input Power KW 2.28 4.04 4.02 5.32
Current A 10.9 19.3 7.2 9.5
COP
4.6 4.7 4.8 4.7
Heating (A7/W45) Capacity KW 10.3 18.2 18.6 24.3
Input Power KW 2.63 4.63 4.72 6.15
Current A 12.6 22.2 8.4 11.0
COP
3.92 3.93 3.94 3.95
Cooling (A35/W7) Capacity KW 7.8 15.2 15.5 20.5
Input Power KW 2.68 5.21 5.22 6.95
Current A 12.8 24.9 9.3 12.4
EER
2.91 2.92 2.97 2.95
Power Supply

              220V~230V/1PH                  380V~415V/3PH
Frequency Range
Hz 30-85 30-85 30-85 30-85
ERP (35ºC) A+++ A+++ A+++ A+++
ERP (55ºC) A++ A++ A++ A++
Heating output water temp ºC                                                            25~60
Cooling output water temp ºC                                                             5~20
Refrigerant                                                     R32 / R410A
Controller                                               LCD Wire Controller
Compressor Brand
                                                       Panasonic
Type
                                           DC Inverter Twin Rotary
Fan motor Type
                                                      DC Inverter
PCS
1 2 2 2
Evaporator Type
                            Hydrophilic Aluminum Fin Heat Exchanger
Water side heat exhanger Brand
                                                            SWEP
Type
                                              Plate Heat Exchanger
Pressur Drop kPa 15 25 25 30
Throttle unit

                                          Electronic Expantion Valve
Water pump                        (Built-in) Brand
                                                         Grundfos
Type
                                                       DC Inverter
Head m 8 8 8 10
Ambient Temp range ºC                                                            -30~45
Electric heater (Built- in) Kw 2 3 3 3
Expansion tank  (Built- in) L 3 5 5 5
Water flow m3/h 1.8 3.3 3.3 4.3
Pipe size
DN32 DN32 DN32 DN32
Noise dB(A) ≤58 ≤63 ≤63 ≤65
Dimension mm 1060*390*950 1060*390*1360 1060*390*1360 1060*390*1560
Weight kg 90 140 145 170


变频机1-2

变频机2

Heating test condition 1:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=30℃/35℃

Heating test condition 2:   Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=40℃/45℃

Cooling test condition :   Ambient temp.(DB/WB)=35℃/24℃, Inlet/Outlet water temp.=12℃/7℃


Features


  • Hybrid solar connection(optional)

  • Low starting current

  • High working efficiency

  • Reliable working

  • Easy and safe operation with multi-protection

  • Intelligent controller and adjustment by quick mind microprocessor


未标题-2
