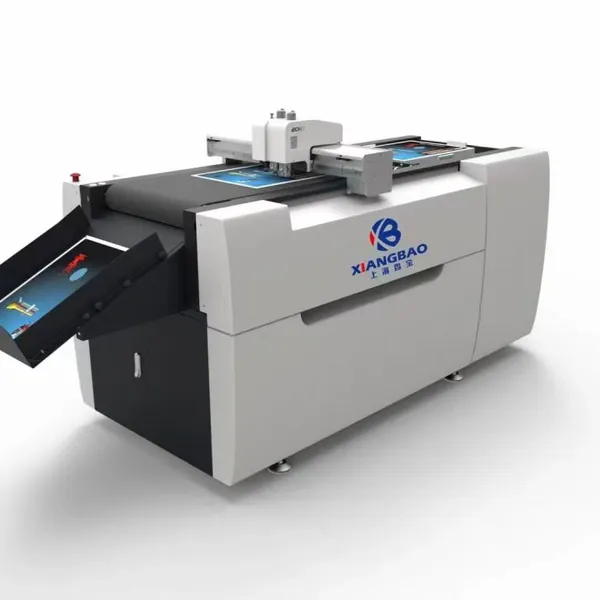

Help CenterShanghai Xiangbao 6040 Multifunctional Digital Proofing Die-cutting Machine
Related Products
-
Shanghai Horizon XB-1007 High-speed Flat-bed Proofing Die Cutting MachineNegotiableMOQ: 1 Piece -
Shanghai Horizon 1209 Pro Fully Automatic Digital Proofing Die-cutting MachineNegotiableMOQ: 1 Piece
-
Shanghai Xiangbao XB-ZN2501 High-speed Die-cutting MachineNegotiableMOQ: 1 Piece
-
Shanghai Horizon XB-ZN350 Ultra-high Speed Die-cutting MachineUS$ 2788MOQ: 1 Piece
-
Shanghai Xiangbao 7553 Multi-function Digital Proofing Die Cutting MachineNegotiableMOQ: 1 Piece
Machine features:
This machine adopts automatic paper feeding suction cup and fully automatic lifting feeding platform. The lifting platform adopts high-precision sensor, which is more sensitive to sensing materials. The platform capacity can reach 120mm, saving paper placing time and speeding up cutting efficiency.
The machine head is also equipped with four knife holders, which is convenient for users to select the knife head for cutting with one button operation. There is no need to change knives frequently and adjust knives, which is more time-saving and convenient to operate. It is also equipped with a variety of knives. Different knives can be selected according to different materials, and the cutting effect is better. The high-frequency electric vibration knife can reach a maximum thickness of 6mm to meet the needs of most advertising quick printing industries.
The machine's precise automatic positioning system, combined with the high-definition CCD camera, can realize automatic and precise positioning of various materials. Automatic cutting solves the problems of slow manual positioning efficiency, inaccurate positioning, and print deformation, thereby achieving simple and precise cutting purposes.
The machine's running motor adopts a servo motor, which will not produce deviations after long-term operation and has high stability. This machine uses IBrightCut software with its powerful graphic editing capabilities and accurate image recognition capabilities to provide reliable data guarantee for advertising cutting. High stability. Simple and intuitive image buttons include all commonly used function buttons.
The software presents most output settings directly on the main interface, which is more convenient for customers to operate. The machine can automatically configure the tool for the data according to the matching rules (automatically matching the tool by color). This function replaces the manual configuration of the tool and improves the work efficiency. The machine's pneumatic automatic paper feeding system uses multiple suction ports to more steadily absorb the paper. The feeding platform strengthens the suction force to ensure that the paper is not easy to shake during the cutting process, thereby ensuring higher precision.
Technical parameters:
Model: 600-400 (with vibrating knife)
Display mode: Computer connection display
Computer configuration: Computer configuration i5, 10400
Maximum cutting depth:
Repeatability: 0.5mm
Maximum speed: 1000mm/s
Cutting range: 600mm*400mm
Control system: Servo motor Software: IBrightCut
Voltage: 220V
Machine power: 3.75KW
Machine size: 2350mm*900mm*1150mm
Machine net weight: 300kg
Shipping volume conversion weight: 600kg (volume 1280*1000*560)
