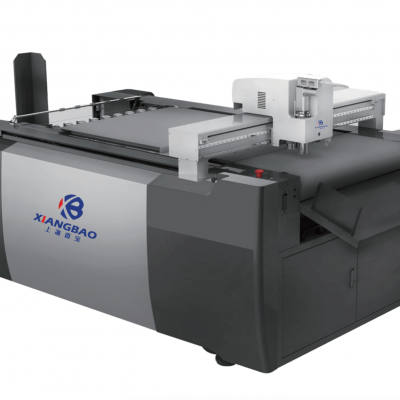

Shanghai Xiangbao XB-1007 Automatic High-speed Flat-plate Die Cutting Machine

Product Description:
Optional features of the machine: Large vibrating blade for an additional 13,200 RMB, V-groove blade (single-edged bevel blade) for an additional 1,500 RMB, and drag blade for an additional 3,500 RMB.
Product Introduction: (Air compressor not standard)
1. Large machine format, designed for B1/A0 material sizes, high-efficiency operation, operating speed can reach 1.2 meters per second, improving efficiency and flexibility, and can support the subsequently installation of various knives for increased utilization flexibility.
2. Compatible with large vibrating blades, drag blades, V-grooves and other cutting tools(which are needed additional configuration ). Diversified material cutting, the large vibrating blade can cut materials up to 16mm thickness. It can cut a variety of materials to meet the different needs of customers.
3. Automated sheet material loading optimization enhances feeding reliability. Fully automated operation requires no manual supervision, improving the machine's cutting efficiency.
4. Stability: The new structural layout and ultra-high-strength one-piece frame are stable and durable, improving machine stability.
5. Quiet: The built-in silent noise reduction structure operates quietly and provides a good working environment. Multiple air zones and multiple air pumps operate to change the adsorption strength according to the size and position of the material, thus enhancing the adsorption force. This allows for handling a wide range of different materials.
Technical Parameters:

Computer configuration: Computer configuration i5, 10400

Cutting format : 1000mm*700mm

Maximum cutting speed : 1.2m/s

Cutting accuracy : ±0.1mm

Maximum cutting depth ： 16mm （additional configuration )）

Tool configuration ：

Standard : 0.9mm, 1.5mm graphic knife, 1mm creasing knife, small vibration knife, CCD, red light ；

optional tools: drag knife, large vibration knife, V-groove knife, etc.

Loading table height： limit/load 400mm/240KG

File format ： DXF, PLT, etc.

Transmission method ： USB

Air pressure ： 0.6MPa

Floor area ：L2890 X W1400X H1200

Packing box ： L2280 X W1680X H1570

Net weight (approximately) ：700KG

Including wooden box weight (approximately) ： 1000KG

Voltage ： 220V
