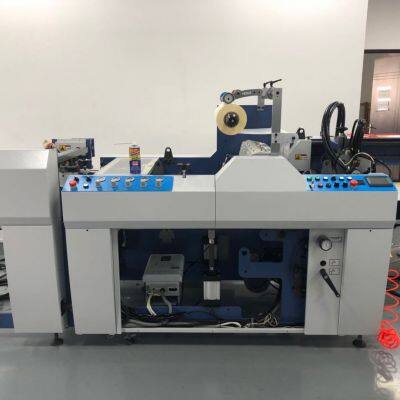

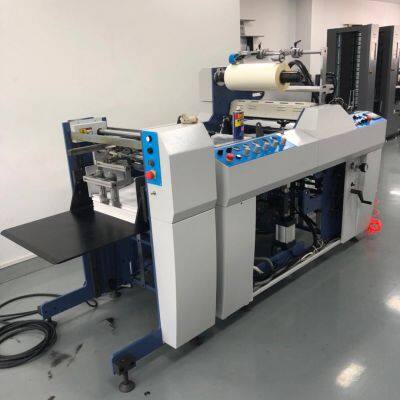

Shanghai Xiangbao XB-V90T Fully Automatic Laminating Machine

Product Description:

Function: Pre-coated film , film-free dual-purpose

machine Features: XB-V90T is a small automatic film laminating machine developed by our company according to market demand. The compact structure and user-friendly design are the biggest highlights of the machine. The electrical and optical components configurations of internationally renowned brands such as Delta, Schneider, and Omron make the machine more stable and safe. The entire machine is fully automated, and both pre-coated and non-coated films are suitable. For product coating processing such as greeting cards, documents, book covers, packaging boxes, etc., this machine is the best choice for print shops and factories.

Structure and configuration:

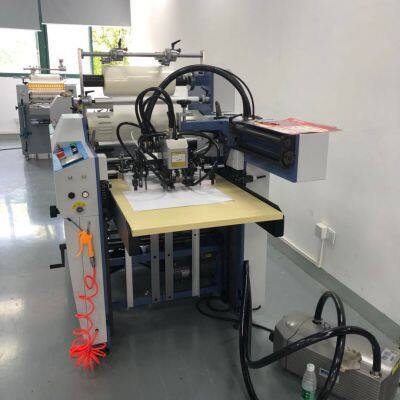

1. Automatic paper feeding Feida uses German Baker oil-free vacuum air pump paper suction system to automatically feed paper.

2. The automatic paper feeding system is equipped with photoelectrically controlled automatic shutdown protection device for paper outage and paper breakage.

3. Human-computer interface system: color touch screen, simple and convenient to operate. Directly input the size, superposition distance, machine speed, etc. of the paper to be processed to achieve automation of the entire machine operation. The operator can view the machine's working status at any time from the touch screen.

4. External electromagnetic heating, rapid heating, accurate and stable temperature control, greatly improving working efficiency

5. Automatic air pressure system can provide stable coating pressure. The pressure magnitude can be adjusted accordingly as needed.

6. The air-swelling and release membrane shaft is easy to load and unload, and the membrane roll is accurate to position the membrane

7. The membrane shaft is equipped with a clutch tension control system to control the membrane tension and release speed.

8. The film slitting knife cuts the film width to fit the paper width.

9. The film perforating knife perforates the edge of the film for smooth automatic slitting.

10. Anti-curvature device: The laminated paper is shaped by the anti-curvature device, preventing it from curling after slitting.

11. The pneumatic slitting system automatically slits the laminated paper.

12. The slit paper is automatically collected and sorted by the vibrating paper delivery table. Optional paper delivery is available.

Technical Parameters:

Brand ：Shanghai Xiangbao

Machine Model Shanghai Xiangbao XB-V90T

Max. Paper Size 540×780mm

Min Paper Size 210×290mm

Paper Thickness 105-500gsm

Working Speed 0-30m/min

Gross Power 14kw

Overall Dimension 3300*1250*1600mm

Weight 1300kg
