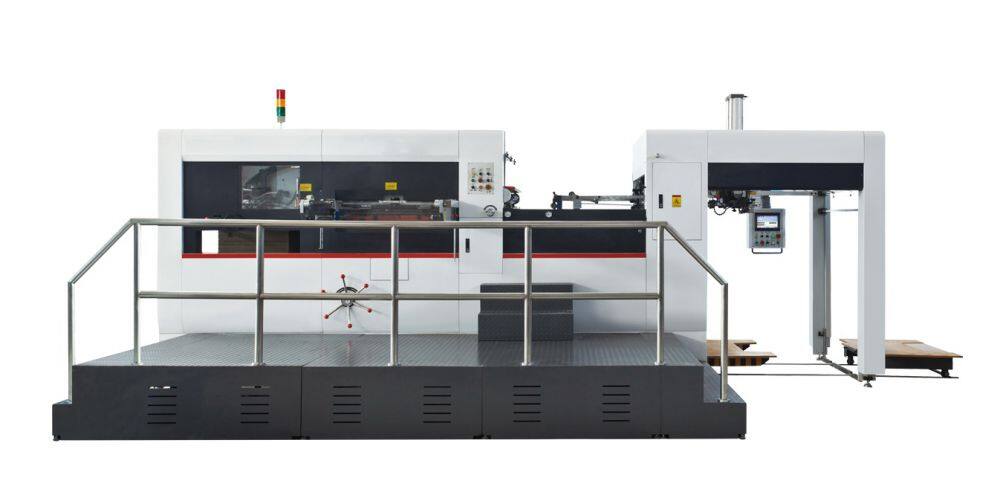

1300 Flat Flattening Full-automatic Waste Auto Die-cutting Machine

The semi-automatic die-cutting machine is a small and economical machine developed by our company with functions such as paper picking cycle, front gauge positioning, upper and lower platform die-cutting, and paper receiving by conveyor belt. The control system adopts programmable controller, which has high control accuracy and reliable operation. Compared with the slot mouth die-cutting machine, this equipment has the advantages of (1) fast speed, high efficiency, safety and reliability, (2) continuous die-cutting and indentation processing of corrugated cardboard products, (3) automatic paper receiving and stacking, (4) automatic fault detection and alarm, (5) automatic counting of actual die-cutting cardboard, etc. Compared with other semi-automatic die-cutting machines at home and abroad, it has the function of semi-automatic machine, and has the advantages of low price, small size, and less floor space. It is the preferred product for small and medium-sized enterprises, especially those with limited space.

Main technical parameters

(1) Maximum paper feeding size: 1200 × 820㎜

(2) Minimum paper feeding size: 450 × 400㎜

(3) Maximum die cutting size: 1180 × 800㎜

(4) Maximum die-cutting pressure: 220 × 104N

(5) Machinable cardboard thickness: corrugated cardboard 1-7 ㎜

(6) Die cutting accuracy: ± 0.5 ㎜

(7) Maximum mechanical speed: 3600 sheets/h

(8) Die cutter height: 23.8 ㎜

(9) Pressure regulation range: ± 1mm

(10) Minimum front scrap size: 10 ㎜

(11) Maximum wood formwork size: 1210 × 840㎜

(12) Total power: 9.9kW

(13) Overall dimension: 4070 × three thousand seven hundred and ten × 2170㎜

(14) Operating weight: 10000kg

(15) Control mode: program control

(16) Adjustment system: variable frequency stepless speed regulation

(17) Power supply voltage: 380V ± 5%, three-phase, 50Hz

(18) Working environment temperature: - 10 ℃~40 ℃.

(19) Discharge capacity of air compressor: 0.36m/min (motor power 3kW)
