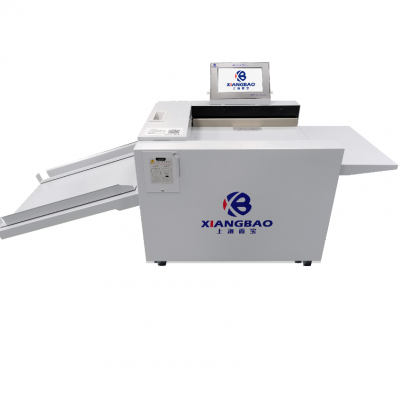

Shanghai Xiangbao XB-8335H Automatic High-speed Creasing Machine

Product Description: Features

1. 7-inch touch screen: easy to operate and input dimensions.

2. Speed: three-speed position adjustment.

3. Cover mode: supports fast cover creasing, fast flap input, single/double flip line creasing, single/double flap creasing

4. Standard creasing/serration tool, easy tool replacement

5. 26 sets of data storage, easy to call out and store

6. 8 built-in folding modes, automatically giving dimensions according to the folding method.

7. Variable creasing: supports double mark incremental expansion mode, used for square back creasing

Technical parameters:

Display mode 7-inch touch color screen

Control mode Program control + CNC

Maximum paper feed size 330 width X1200mm length

Minimum paper feed size 50 width X90mm

Paper thickness 108-350G (indentation) 108-250G (perforation)

Applicable paper Coated paper, laminated paper, cardboard, etc.

Working accuracy ±0.2mm

Maximum speed 4500 sheets of A4 paper per hour, one indentation

Maximum number of indentations 36

Power 180W

Power supply parameters AC220V

Net weight (approximately) 52kg

Machine size (approximately): 1150*530*500mm

Packing size (approximately): 670*620*500mm
