Product Description:
-
Machine function
1. Automatic mode: You can directly enter the size, and jump directly to the next knife data after cutting. There is no need to input repeatedly. Up to 500 sets are stored, each set of 200 dollars.
2. Manual mode: Directly enter the size within the range of maximum 670mm and minimum 25mm to complete the cropping.
3. Equal division: You can directly set the total size length and divide the number of equal pieces. You don’t need to calculate the size yourself, which is more convenient.
4. Tag: After setting the total length value, enter the first cut and the second cut, which can be used for business card cut.
5. Teaching: If you don’t know the size, open the teaching and cut directly. You will directly enter the cutting record, and use it with the next knife.
6. Addition and subtraction: After the input is completed, you can use the addition and subtraction keys to subtract or increase the amount, and you do not need to calculate it yourself.
7. Working status: During cutting, the paper pressing operation, paper cutting operation, paper push forward, paper push back, and the program you are located can be viewed directly on the display screen.
-
Machine features:
1. Gantry: The overall ductile iron design is designed without any welding points: Ductile iron is a high-strength cast iron material developed in the 1950s. Its comprehensive performance is close to steel. It is based on its excellent performance that it has been successfully used to cast some parts with complex stress, high requirements for strength, toughness, and wear resistance. The so-called "iron instead of steel" mainly refers to ductile iron. The overall gantry ductile iron is not easy to wear and deform, and will not be desoldered. It is more firm and durable in one-time molding. The gray-cut paper can be cut in a thickness of 80mm, making it more powerful. An ordinary paper cutter can only cut 2-3 pieces of gray boards, without strength.
2. Logic valve plus electromagnetic control oil inlet: the cut-off and recovery speed are increased to 10 seconds for full cut and 6-hole high speed! ! What digital graphics and text requires is efficiency and speed. This machine improves the cutting speed by 40%, greatly improving work efficiency. It is a 670-form cutting high-speed knife of China Digital Graphics and Text Company. The hydraulic system adopts a fully open paper cutting machine hydraulic system, so it is faster, double hydraulic, and more stable.

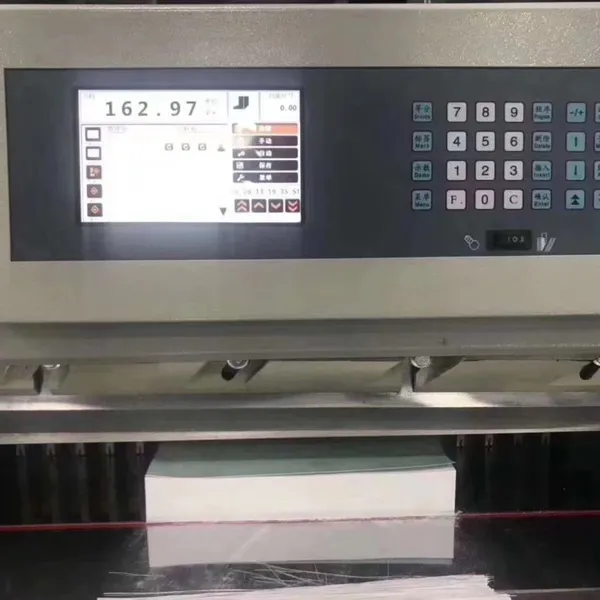

3.7-inch color Taiwan display screen plus computer board: fast response speed, adjustable paper pressure/adjustable cutter stroke, correct cutting size error with one-click, various cutting indicators are better than national standards, public-English conversion, Chinese and English bilingual interface, this machine uses industrial computer programs imported components, and the circuit is more stable.
4. The paper push structure is designed according to the full-open folio paper cutter: it adopts dual straight linear rail guide, with high accuracy and no gaps on the left and right, and stable operation. High-precision servo motor, fast paper pushing speed and positioning accuracy reach 0.01mm. The positioning accuracy of the stable paper pusher can be fine-tuned using an electronic handwheel.
5. This machine adopts German technology heavy-duty structural design: stable performance, paper cutting adopts an oil cylinder cutter method, paper cutting is full of power, double mold spring retracting speed is fast, safe and reliable. The paper press uses a centralized paper to ensure that the paper is tightened.
6. Paper pusher: High-hardness chrome-plated casting flat plate, no wear, flexible paper in and out, reducing friction. The servo motor and driver control are used to ensure dimensional accuracy, and the Dongling brand is adopted. Dongling Servo is a joint research by Dongling Technology Co., Ltd. and Tsinghua University in Beijing. 7. Paper push guide: Use double linear square rails. The linear guide product features high positioning accuracy and good reproducibility. The rolling motion method of linear guide has relatively small friction coefficient, and the gap between static friction and dynamic friction is very small. Even when feeding, there will be no idling and slipping. It has good analysis ability and reproducibility, and can maintain walking accuracy for a long time. Brand Taiwan Shangyin: Taiwan’s largest precision machinery manufacturer, a leading brand in global linear transmission
8. Electrical appliances: air switches, AC contactors Brand: "Zhejiang Zhengtai" listed company exported products, guaranteed quality Omron relays has a global well-known brand, Taiwan brand display screen, computer board uses American Atmel chip atmel, which is a global industry leader. Shanghai Zhonghu Optical Control is safe and reliable, Brand: In the early 1960s, an automation control research and development team composed of famous academicians of the Chinese Academy of Sciences was established. This machine passed the ISO14001 environmental management system certification certificate and the ISO9001 quality management system certification certificate.
-
Technical parameters:
Display mode 7-inch touch color screen + button for use
Control mode Program control
Cutting size 25mm-670 mm
Paper cutting thickness 80mm
Cutting accuracy ±0.3mm
Paper cutting method Hydraulic system/2.2kw
Paper pressing method Hydraulic + mechanical foot for use
Paper feed width 670mm
Paper pushing method Double I-shaped linear + ball screw 0.4kw.
Photoelectric protection Light control
Power supply parameters AC380V/total 2.6kw
Weight 740kg
Gross weight 800kg
Machine size 1510*1090*1460mm
Packing size 1620*1190*1640mm
