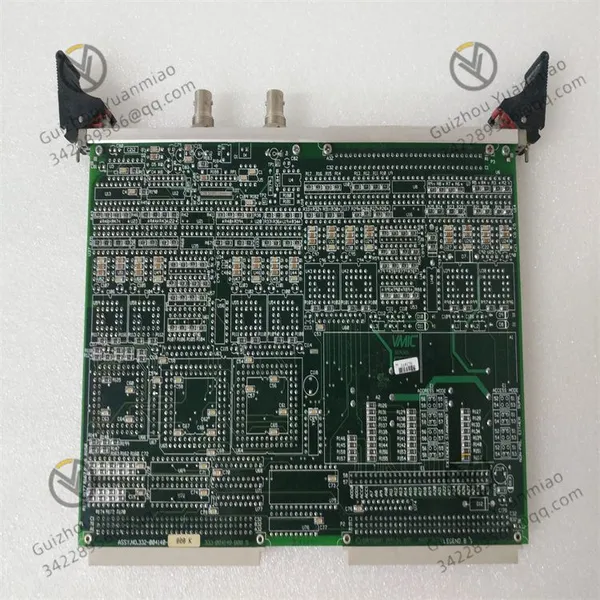

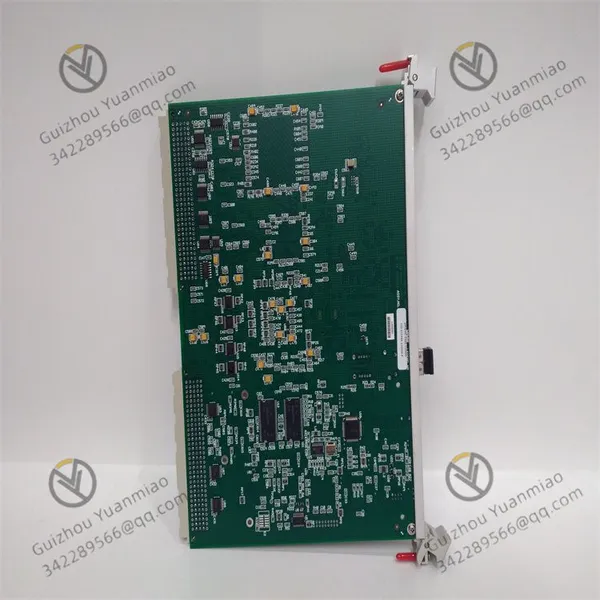

GE VMIVME-2540-000 intelligent controller
Parameter Introduction
Hardware composition: It consists of three parts, including the VMEbus subordinate DTB interface, which is used to
arbitrate local CPU resources; A CPU with firmware and supported logic; The circuit for realizing measurement and
control functions.
Processor performance: The on-board 15MHz 68HC000 processor performs circuit board functions by providing a
command-driven user interface and can handle real-time control tasks such as data acquisition and signal processing.
Counting capability: The event counting capability can reach up to 4 gigabit events, meeting the high-precision
counting requirements. It can be used in scenarios such as precise counting of product quantities on industrial
production lines.
I/O features: Equipped with up to 24 discrete output channels, it can be programmed through various on-board
jumper module options. These output channels have a 12-bit resolution and are capable of providing and absorbing
up to 10 milliamperes of current at a rate of ±10V. Supports differential and single-ended signal levels, and I/O
connections are achieved through high-density connectors on the front panel. In addition, it also supports TTL input
signal compatibility.
Measurement and control functions: The frequency measurement range is from 1.16×10⁻³Hz to 2.5MHz; The
period/pulse width measurement range is from 400ns to 8.5899×10⁶s (32-bit floating point), or from 400 seconds to
858 seconds (32-bit unsigned integer); Square wave/pulse sequences can be generated, ranging from 0.0076Hz to
2.5MHz. Supports orthogonal position measurement, sin/cos up to 1MHz, equipped with a 32-bit counter, and
supports restriction/mode check.
Data processing and communication: The data exchange interface complies with the ANSI/IEEE standard 754-1985,
supporting 32-bit floating-point arithmetic, facilitating data interaction with other devices or systems that conform to
this standard.
Programming and configuration: Programming, configuration, trend analysis and diagnosis can be carried out using
the ControlST software suite, which includes the ToolboxST application software. Through a simple memory-mapped
interface composed of commands, command status, parameters and returned measurements, measurement, timing
and output functions can be configured for each channel.
Other features: It has a wide range of self-diagnostic functions, optional redundant configuration, can provide
non-flammable on-site power supply, supports Class 2 hazardous protection non-flammable rated power, and can
perform rapid loop scanning to ensure stable system operation.
Application scenarios
Product counting on the production line: In the electronic assembly production line, the electronic components or
finished products passing through the conveyor belt can be precisely counted to statistically analyze the output,
monitor the production progress, and promptly identify abnormal situations during the production process, such as
low output at a certain period, to ensure the efficient operation of the production line as planned.
Mechanical equipment operation status monitoring: It is used to monitor parameters such as the spindle speed and
tool feed rate of machine tools and other mechanical equipment. By counting and measuring relevant signals, it is dete
rmined whether the equipment is operating normally, providing data support for the maintenance and upkeep of the
equipment, such as judging whether the tool needs to be replaced based on the number of rotations of the main shaft.
Automated packaging control: In packaging production lines for food, medicine, etc., the conveying length of
packaging materials and the number of packaging cycles can be precisely controlled. For instance, on the beverage
filling line, the supply quantity of bottle caps is controlled to ensure that each bottle of beverage can be accurately
capped. Meanwhile, the timing of packaging material replacement can be controlled based on the counting results,
thereby enhancing packaging efficiency and quality.
Real-time control system In some real-time control systems that require rapid response, such as the tension control
system of printing machines, the VMIVME-2540-000 can process the tension signals input by sensors in real time and
quickly output control signals according to the set values to adjust the rotational speed or pressure of the tension
roller, ensuring the stability of paper tension during the printing process and avoiding problems such as paper
wrinkling and breaking.
Data acquisition and analysis system: In scientific research experiments or industrial tests, it is used to collect data such
as pulse signals output by sensors. For instance, in material fatigue testing, it collects data such as the number of
stress cycles on the fatigue testing machine, and then conducts analysis and processing to provide a basis for research
and quality control.
In the field of motion control: In the motion control of stacker cranes in automated warehousing systems, the number
of times stacker cranes rise and fall and move horizontally can be counted and controlled, precisely locating the
position of goods to achieve accurate storage and retrieval of goods. It can also be used for joint movement counting
and control of industrial robots, helping robots precisely perform various actions.
