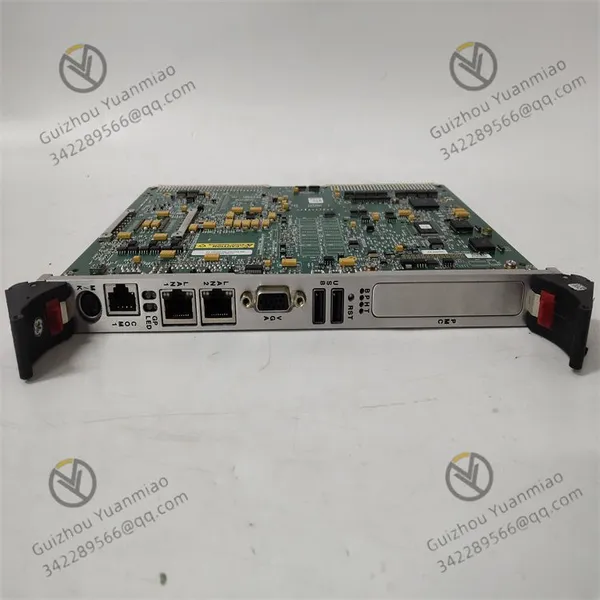

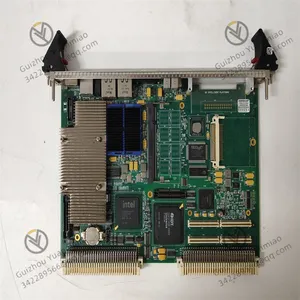

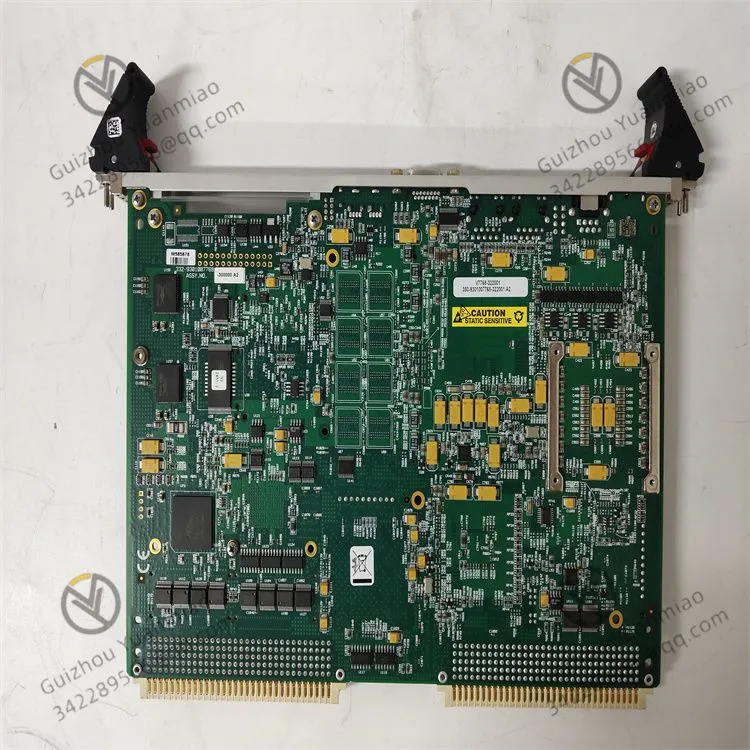

GE V7768-322001 Embedded single-board computer
Technical parameters
Processor: Intel Core 2 Duo processor, with a maximum main frequency of up to 2.16GHz and a L2 cache of up to 4MB. The Celeron®M processor is also optional, with a main frequency of 1.07GHz and a cache of 1MB.
Memory: Supports up to 2GB of DDR2 SDRAM through a single SODIMM slot. The system and memory bus is 667MHz (Core 2 Duo processor) or 533MHz (Celeron®M processor).
Storage: Supports up to 8GB of bootable CompactFlash and is equipped with 2 SATA interfaces for connecting high-speed storage devices.
Expansion interface: It has one PCI-X functional PMC site with VITA 35 P2 input/output. Besides the expansion points on the board, three additional PMC expansion points are provided for the customer, which can be connected to the PMC237CM1/V expansion board.
Network interface: There are 2 gigabit Ethernet interfaces on the front panel, supporting high-speed network connection.
Serial interface: Equipped with 2 serial ports, which are RS232/422COM interfaces, it can be used for serial communication.
USB interface: There are a total of 4 USB 2.0 ports, among which 2 are located in the front I/O and 2 are located in the rear I/O, facilitating the connection of peripheral devices and storage devices.
Display interface: The front-end input/output is equipped with SVGA ports, which can be connected to display devices.
Other interfaces: The front panel provides PS/2 keyboard/mouse connection interfaces and on-board parallel connectors.
Other parameters: Integrated Intel 945GME Express chipset and ICH7-M I/O controller hub; Equipped with 32KB bytes of NVRAM; The software supports an optional watchdog timer with a reset function. Supports Windows® XP, VxWorks® and Linux® operating systems.
Application scenarios
Intelligent warehousing: AGV (Automated Guided Vehicle) path planning and multi-vehicle collaborative scheduling, and integration with the warehouse management system (WMS).
CNC machine tools: Trajectory planning and motor drive control of five-axis machining centers to achieve precision parts processing.
Industrial robots: Multi-joint motion control of collaborative robots (CoBots), supporting human-robot coexistence scenarios.
New energy monitoring: Inverter status monitoring and power generation statistics of wind farms and photovoltaic power stations.
Train Monitoring System (TCMS) : Collects temperature and humidity in carriages and door status, and reports fault codes to the central controller in real time.
On-board communication terminal: Ground signal reception and analysis of the high-speed rail wireless train control system (CTCS).
Medical imaging equipment: image reconstruction algorithm operations for CT/MRI, radioactive signal processing for PET scanners.
Laboratory instruments: Data acquisition and spectrum analysis for spectrometers and mass spectrometers, supporting LabVIEW development.
