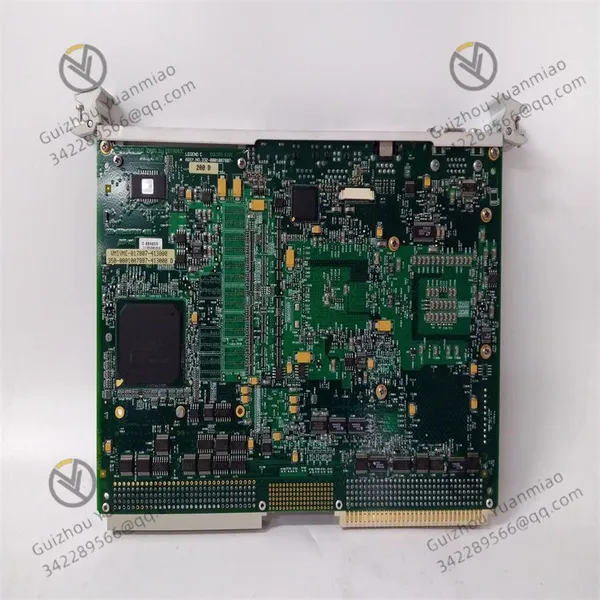

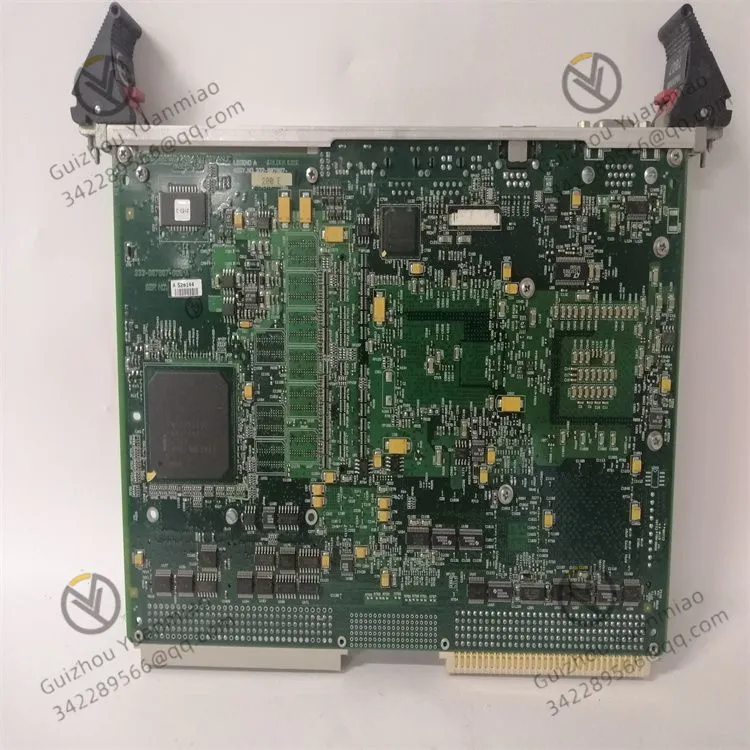

GE VMIVME-7807-D single-board computer
Performance characteristics
High-performance processor Integrated with an Intel Pentium M processor, the processor frequency is selectable, available in 1.1GHz, 1.6GHz or 1.8GHz versions. Among them, the 1.8GHz Pentium M processor is equipped with a 2MB L2 cache, providing outstanding computing power and processing speed, making it suitable for I/ O-intensive applications.
Large-capacity memory and storage: Supports DDR SDRAM memory and can be expanded through a 200-pin DDR SDRAM SODIMM slot, with a maximum capacity of up to 1.5GB. It offers a bootable CompactFlash storage option with a maximum capacity of up to 2GB, providing a flexible and reliable storage solution for the system.
High-speed network connection: Equipped with dual gigabit Ethernet interfaces, it supports 10BaseT and 100BaseTX, providing high-speed and stable network connections. It is suitable for scenarios that require high-speed data transmission and network communication. The G1 gigabit front panel Ethernet port is also optional.

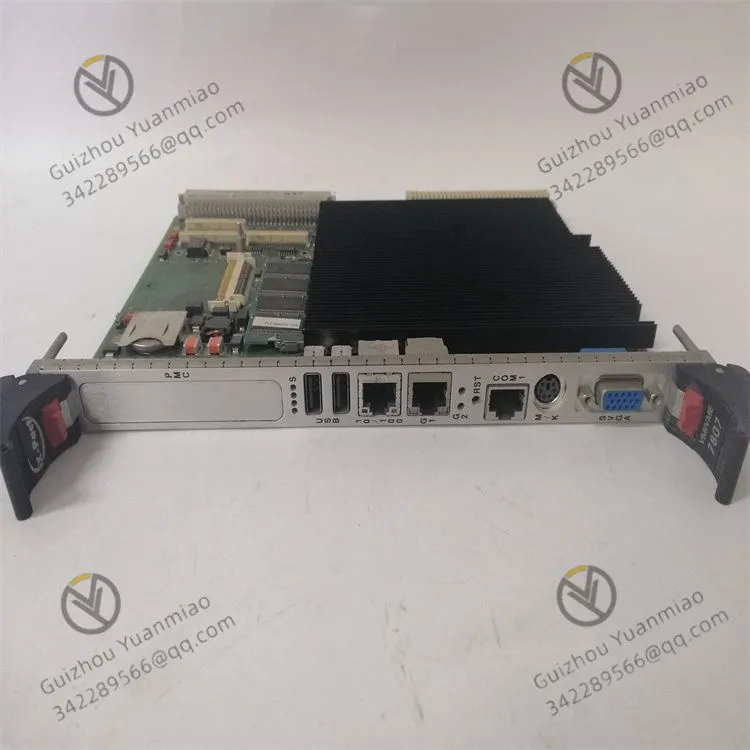

Rich interface types: It features 10/100BaseT Ethernet ports, two USB 2.0 ports, SVGA interfaces, high-performance serial ports, and PS/2 connections, etc. It simultaneously includes VME bus interface and PCI bus interface, facilitating connection with other devices and data transmission.
Strong expansion capability: It is equipped with a PCI-X, 66MHz PMC expansion slot. Users can insert corresponding expansion cards as needed, such as adding specific I/O functions or data acquisition functions, etc., to achieve functional expansion.
Support for multiple operating systems: It can support multiple operating systems such as Windows 2000, Windows XP, QNX, Linux and VxWorks, which is convenient for users to choose according to actual needs and conducive to software development and transplantation.
Compliant with VME64x standard: Supports the VME64x standard, with a maximum data transfer rate of 80MB/s, and supports 64-bit address bus, enabling good communication and collaborative operation with other devices that comply with the VME standard.
Built-in timers: It provides two 16-bit, two 32-bit and one watchdog software programmable timer, which is helpful for the realization of functions such as system timing control and fault monitoring.
Application Introduction
Industrial automation control: In the control system of PLC non-standard automation testing equipment, VMIVME-7807 can serve as the core control unit, processing various signals sent by sensors in real time, precisely controlling the actions of the actuator, ensuring the accurate and efficient progress of the testing process, and enhancing the degree of equipment automation and testing accuracy. At the same time, it can also be used in the MES workshop automation production control system, connecting various equipment on the production line to achieve real-time collection and analysis of production data, optimize the production process, and improve production efficiency and product quality.
Energy system monitoring In the steam turbine power generation system of GE Energy, VMIVME-7807 can be used as a key control component to participate in the OptiComp integrated turbine and compressor control solution, achieving advanced functions such as compressor surge control and process performance control, ensuring the stable operation of the steam turbine power generation system and improving the power generation efficiency.
Avionics: In the aerospace field, the VMIVME-7807 can be applied in avionics. For instance, the navigation system used for aircraft processes data from various sensors such as the Global Positioning System (GPS), providing precise position, speed and attitude information for the aircraft to ensure the accuracy and reliability of flight navigation.
Medical equipment monitoring: In the medical care monitoring system, VMIVME-7807 can collect patients' vital sign data in real time, such as heart rate, blood pressure, and body temperature, analyze and process the data, and transmit the results to the terminal devices of medical staff, so as to timely grasp the changes in patients' conditions and provide strong support for medical diagnosis and treatment.
Transportation management: In the traffic signal control system, the VMIVME-7807 can intelligently adjust the duration of traffic signals based on real-time traffic flow data, optimize traffic flow, and alleviate traffic congestion. It can also be applied to railway signal systems, responsible for signal processing and transmission to ensure the safety and efficiency of railway transportation.
